Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1008R-681KFIXED IND 680NH 750MA 200MOHM SM |
2,603 | - |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±10% | 750 mA | - | Shielded | 200mOhm Max | 40 @ 25MHz | 186MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-682KFIXED IND 6.8UH 250MA 1.8OHM SMD |
2,153 | - |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 250 mA | - | Shielded | 1.8Ohm Max | 30 @ 7.9MHz | 38MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-222KFIXED IND 2.2UH 375MA 800MOHM SM |
355 | - |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 375 mA | - | Shielded | 800mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|

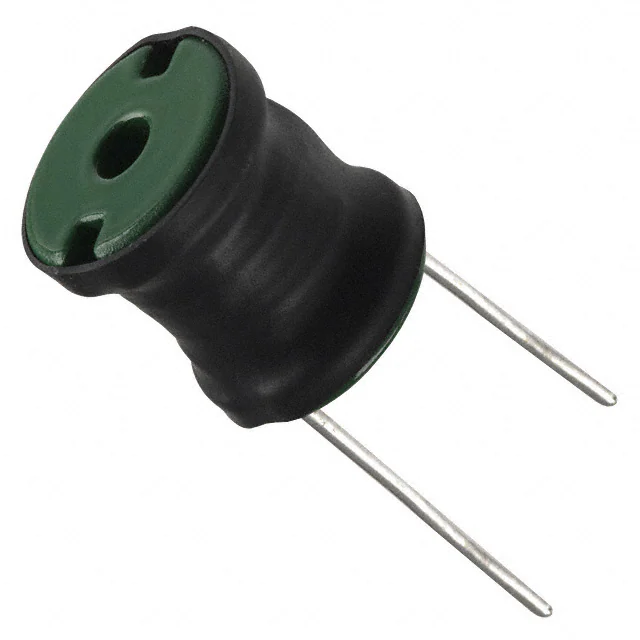

DC780R-822LFIXED IND 8.2UH 11.4A 7 MOHM TH |
563 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±15% | 11.4 A | 38A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780R-225KFIXED IND 2.2MH 800MA 1.54OHM TH |
180 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | 2.3A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
S1210-222KFIXED IND 2.2UH 470MA 730MOHM SM |
1,000 | - |
|
Datasheet | S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 470 mA | - | Shielded | 730mOhm Max | 40 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
1025R-44KFIXED IND 10UH 144MA 3.3 OHM TH |
795 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 10 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-28KFIXED IND 2.2UH 415MA 400MOHM TH |
2,379 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 2.2 µH | ±10% | 415 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-08KFIXED IND 330NH 830MA 220MOHM TH |
1,444 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 330 nH | ±10% | 830 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-42KFIXED IND 8.2UH 160MA 2.7 OHM TH |
883 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 8.2 µH | ±10% | 160 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
