Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 | - |
|
Datasheet | 1641R | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5500R-273KFIXED IND 27UH 6.3A 25 MOHM SMD |
600 | - |
|
Datasheet | 5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 6.3 A | 3.38A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
ER1025-06KSFIXED IND 270NH 960MA 160MOHM TH |
1,250 | - |
|
Datasheet | Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

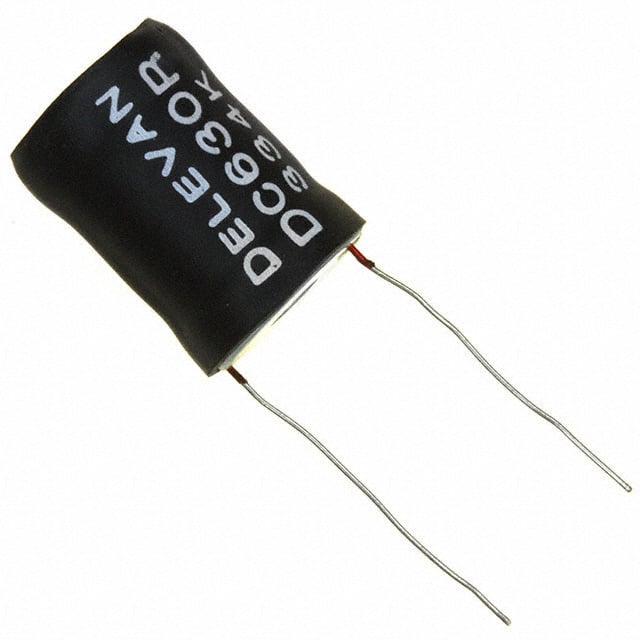

DC630R-334KFIXED IND 330UH 1.72A 315MOHM TH |
362 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.72 A | 3.8A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
4501R-128MFIXED IND 100UH 650MA 400MOHM SM |
562 | - |
|
Datasheet | 4501R | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 650 mA | 650mA | Shielded | 400mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.210" (5.33mm) |
|
ER1641-222KSFIXED IND 2.2UH 650MA 190MOHM TH |
463 | - |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 650 mA | - | Unshielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-472KSFIXED IND 4.7UH 380MA 550MOHM TH |
433 | - |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 380 mA | - | Unshielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

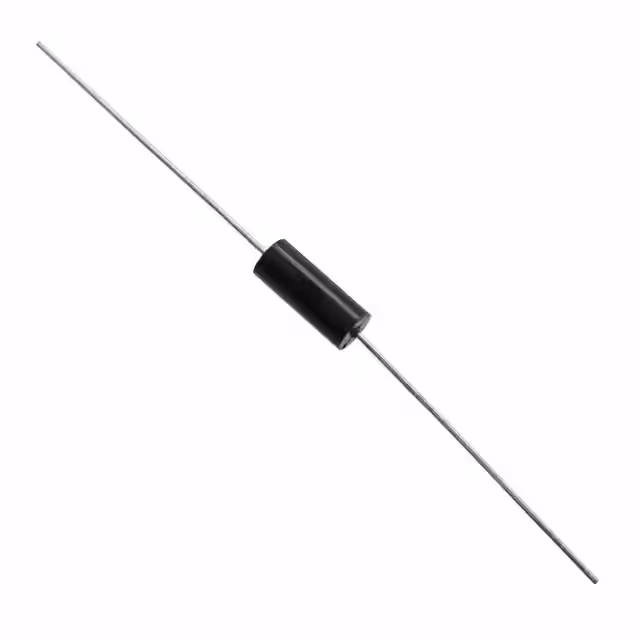

ER1641-221JSFIXED IND 220NH 1.1A 67 MOHM TH |
454 | - |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±5% | 1.1 A | - | Unshielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-181JSFIXED IND 180NH 1.3A 47 MOHM TH |
437 | - |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±5% | 1.3 A | - | Unshielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
HRSPD127-154MFIXED IND 150UH 1.4A 294MOHM SMD |
250 | - |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 294mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
