Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWL0306-3N3-BNHFIXED IND 3.3NH 800MA 90MOHM SMD |
2,954 | - |
|
Datasheet | CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.3 nH | ±0.1nH | 800 mA | - | Shielded | 90mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CWL0306-3N6-BNHFIXED IND 3.6NH 600MA 100MOHM SM |
3,226 | - |
|
Datasheet | CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.6 nH | ±0.1nH | 600 mA | - | Shielded | 100mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CWL0306-3N9-BNHFIXED IND 3.9NH 600MA 100MOHM SM |
2,271 | - |
|
Datasheet | CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.9 nH | ±0.1nH | 600 mA | - | Shielded | 100mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CAPL0204-0N6-BNHFIXED IND 0.6NH 0.1NH 900MA 100M |
3,067 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SDET25200H-2R2MSFIXED IND 2.2UH 1.36A 199MOHM SM |
2,080 | - |
|
Datasheet | SDET25200H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 1.36 A | 1.02A | Shielded | 199mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
CQPL0204-3N9-BNHFIXED IND 3.9NH 0.1NH 280MA 1000 |
1,737 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HTEH20120H-R47MSRFIXED IND 470NH 3.9A 33MOHM SMD |
2,788 | - |
|
Datasheet | HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3.9 A | 4.3A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
HTEH20120H-1R0MSRFIXED IND 1UH 3.5A 55 MOHM SMD |
4,691 | - |
|
Datasheet | HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.5 A | 3.3A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|

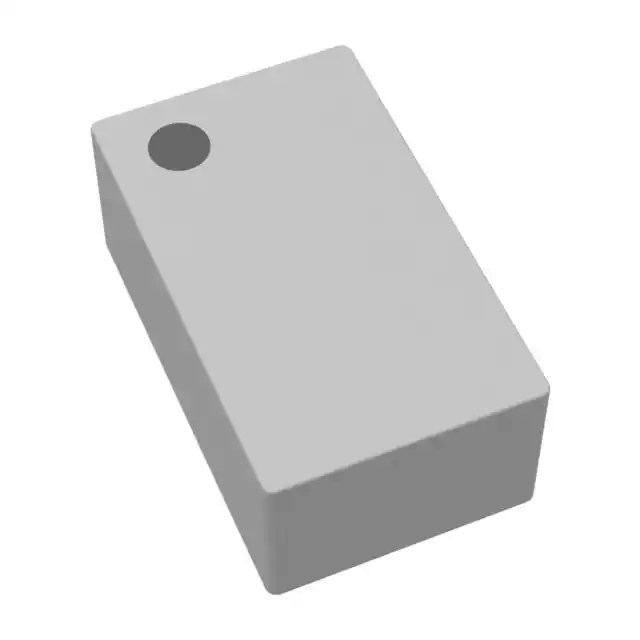

HTEH20121T-R47MSRFIXED IND 470NH 4.6A 25MOHM SMD |
2,090 | - |
|
Datasheet | HTEH20121T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 4.6 A | 4.6A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
HTEH25201T-4R7MSRFIXED IND 4.7UH 2.3A 100MOHM SMD |
4,377 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
