Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APC30-821K-RC-TR820UH 10% AXIAL POWER CHOKE |
3,523 | - |
|
Datasheet | APC30 | Axial | Bag | Active | - | - | 820 µH | ±10% | 800 mA | 970mA | - | 661mOhm Max | - | - | - | -55°C ~ 125°C | 23 kHz | - | Through Hole | Axial | 0.470" Dia x 0.920" L (11.94mm x 23.37mm) | - |
|
PC03021-101M-RC100UH 20% POWER CHIP INDUCTOR |
4,495 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 250 mA | - | Unshielded | 2.52Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.094" (2.40mm) |
|
PCHC40-R33M-RC.33UH 20%PWR CHIP HIGH CURRENT |
2,907 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 16 A | 20A | Unshielded | 2mOhm Max | - | 300MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|

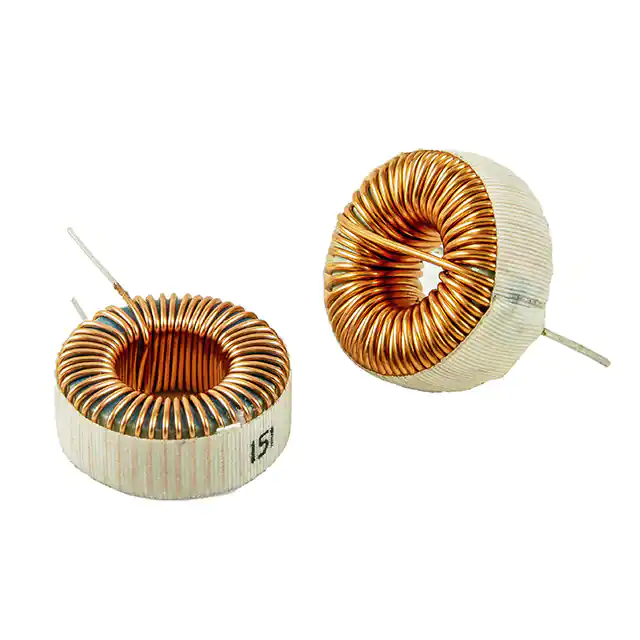

HTC220LL-102L-RC1000UH30% HRZMNT TOROIDAL CHOKE |
4,052 | - |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
PCHC128H-221M220UH 20% SMD SHIELDED HI-CURR. |
2,539 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 2.36 A | - | Shielded | 376mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
LS03-R22J-RC.22uH +/-5% Ferrite Core Chip |
3,538 | - |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±5% | - | 1.35A | Unshielded | 160mOhm Max | 17 @ 7.9MHz | 1.05GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R18J-RC.18uH +/-5% Ferrite Core Chip |
1,075 | - |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 nH | ±5% | - | 1.4A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.15GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-3R3J-RC3.3uH +/-5% Ferrite Core Chip |
1,759 | - |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±5% | - | 440mA | Unshielded | 1.5Ohm Max | 17 @ 7.9MHz | 84MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-3R9J-RC3.9uH +/-5% Ferrite Core Chip |
4,574 | - |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±5% | - | 430mA | Unshielded | 1.6Ohm Max | 17 @ 7.9MHz | 80MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
