Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCL2520-1R0-RFIXED IND 1UH 580MA 550 MOHM SMD |
2,408 | - |
|
Datasheet | WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 580 mA | - | Unshielded | 550mOhm Max | 12 @ 25.2MHz | 300MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
WCL3225-100-RFIXED IND 10UH 300MA 1 OHM SMD |
4,172 | - |
|
Datasheet | WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 µH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 10 @ 2.52MHz | 30MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|

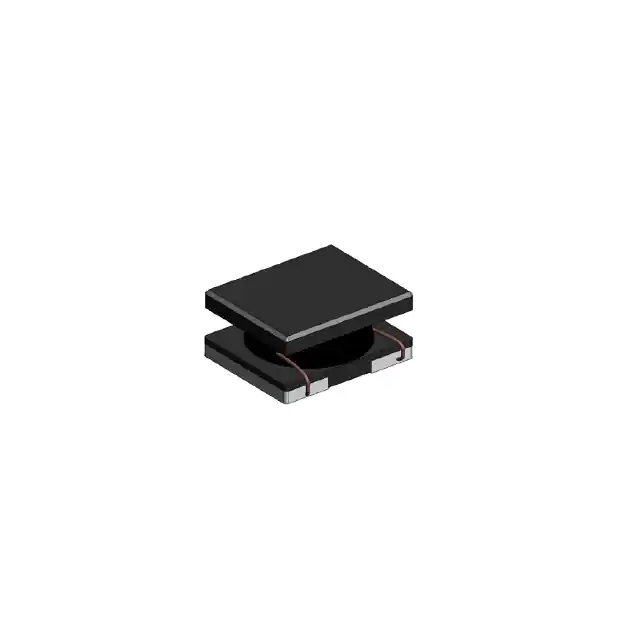

SDCL1V2010-1R0N-RIND 1.0 UH 1.8A SMT |
3,560 | - |
|
Datasheet | SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 1.55 A | 1.8A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|
SDCH1V5020-4R7M-RIND 4.7 UH 2.60A SMT |
1,677 | - |
|
Datasheet | SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.6A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SDCL1V2010-100M-RIND 10 UH 0.60A SMT |
10,142 | - |
|
Datasheet | SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 500 mA | 600mA | Shielded | 810mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|

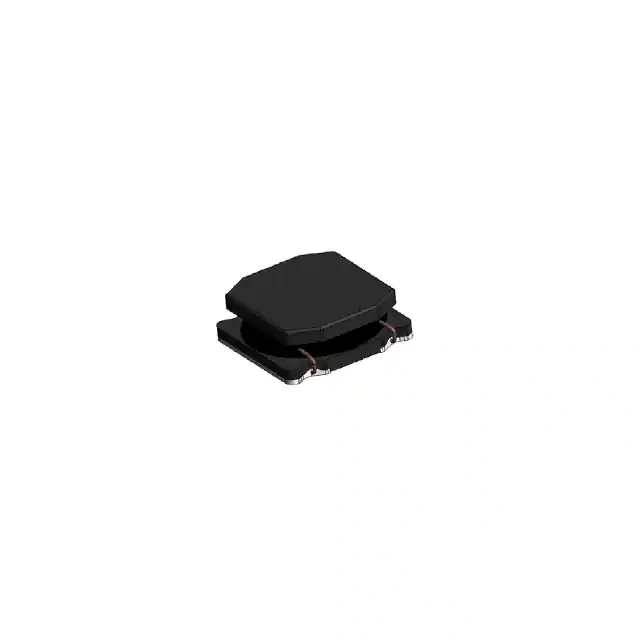

SDCL1V3012-100M-RIND 10 UH 0.60A SMT |
7,585 | - |
|
Datasheet | SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 500 mA | 600mA | Shielded | 345mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
WCL3225-220-RFIXED IND 22UH 200MA 2.4 OHM SMD |
2,000 | - |
|
Datasheet | WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 µH | ±5% | 200 mA | - | Unshielded | 2.4Ohm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
|
SDCL1V3012-4R7M-RIND 4.7 UH 0.95A SMT |
10,175 | - |
|
Datasheet | SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 800 mA | 950mA | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
SDCHA1V6045-560-RIND SMD POWER 56.0UH 1.4A |
1,199 | - |
|
Datasheet | SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 56 µH | ±20% | 1.4 A | 1.8A | Shielded | 230mOhm | - | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
WCLA3225V1-471-RCHIP IND 470UH 0.086A SMT 2 PAD |
2,505 | - |
|
Datasheet | WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 86 mA | - | Unshielded | 18.1Ohm Max | 10 @ 1MHz | 2.6MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
