Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP4-470-RFIXED IND 47UH 590MA 908MOHM SMD |
3,439 | - |
|
Datasheet | THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 47 µH | ±20% | 590 mA | 720mA | Unshielded | 908mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.480" L x 0.370" W (12.20mm x 9.40mm) | 0.118" (3.00mm) |
|
|
FP1012V3-R090-RIND FP1012V3-R090-R FLAT-PAC |
1,622 | - |
|
Datasheet | FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 84 A | 150A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|

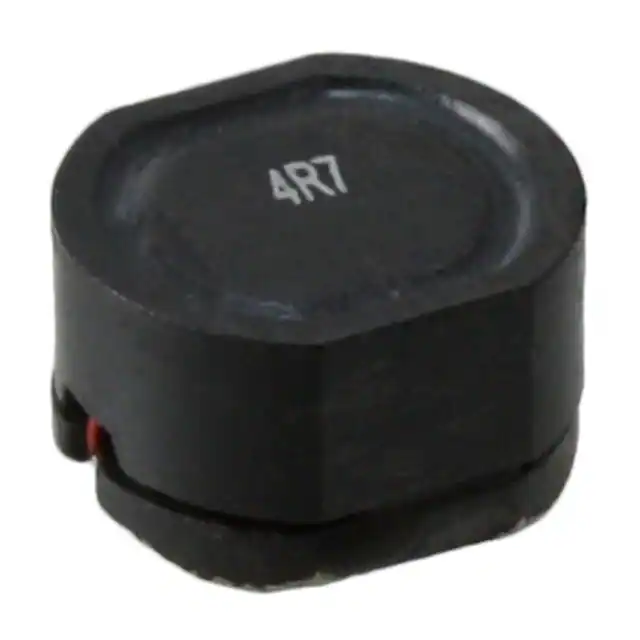

LDS0705-4R7M-RFIXED IND 4.7UH 3.32A 21MOHM SMD |
1,202 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.32 A | 3.53A | Shielded | 21mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

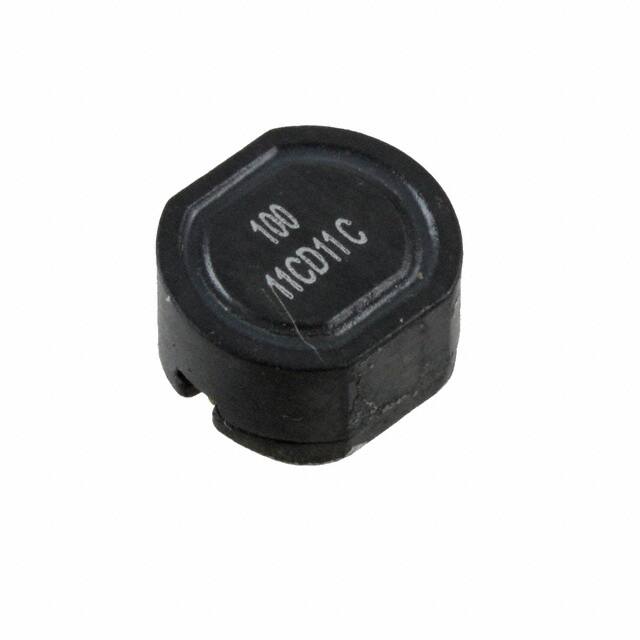

LDS0705-100M-RFIXED IND 10UH 2.54A 36 MOHM SMD |
2,610 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.54 A | 2.61A | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

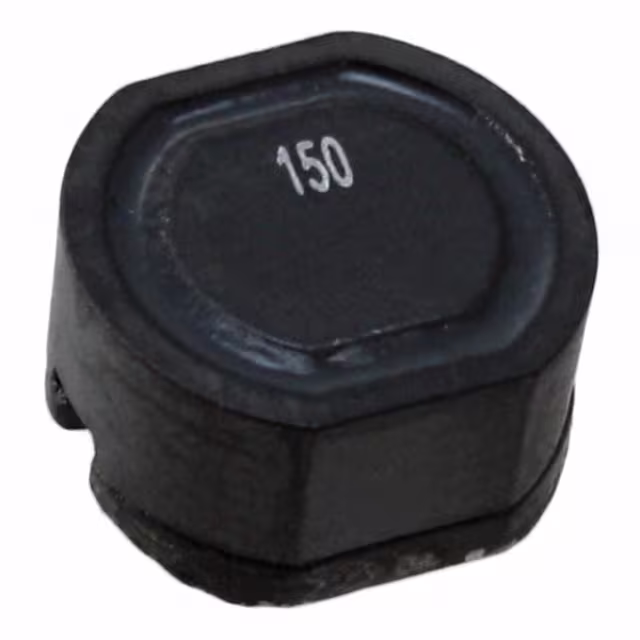

LDS0705-150M-RFIXED IND 15UH 2.04A 56 MOHM SMD |
4,447 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.04 A | 2.07A | Shielded | 56mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

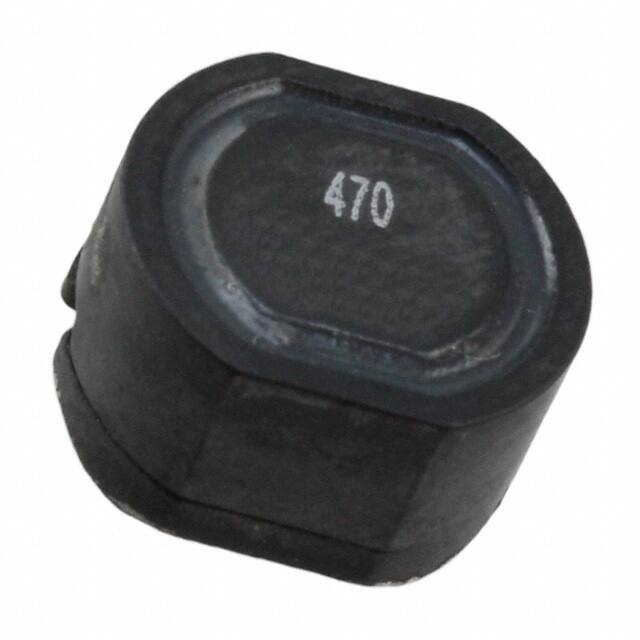

LDS0705-470M-RFIXED IND 47UH 1.21A 158MOHM SMD |
1,403 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.21 A | 1.18A | Shielded | 158mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

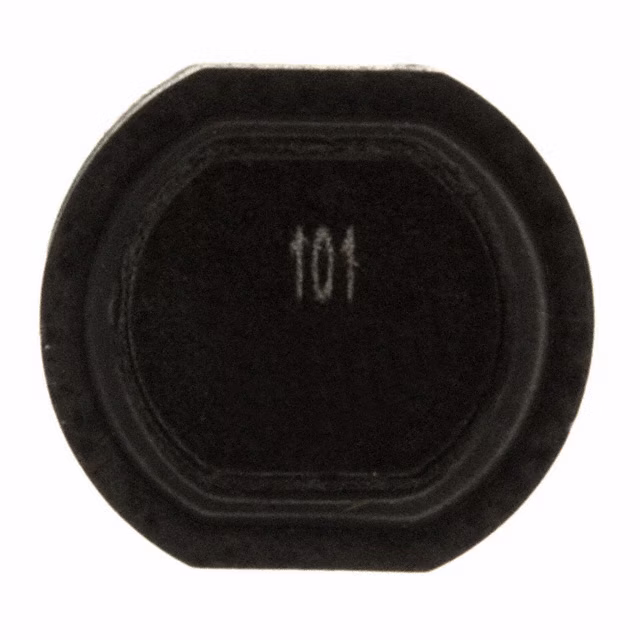

LDS0705-101M-RFIXED IND 100UH 808MA 357MOHM SM |
4,674 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 808 mA | 800mA | Shielded | 357mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

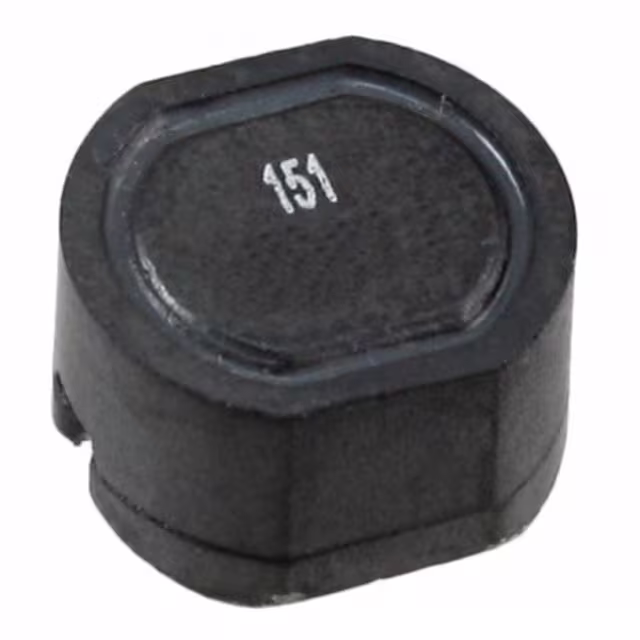

LDS0705-151M-RFIXED IND 150UH 649MA 554MOHM SM |
2,164 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 649 mA | 645mA | Shielded | 554mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

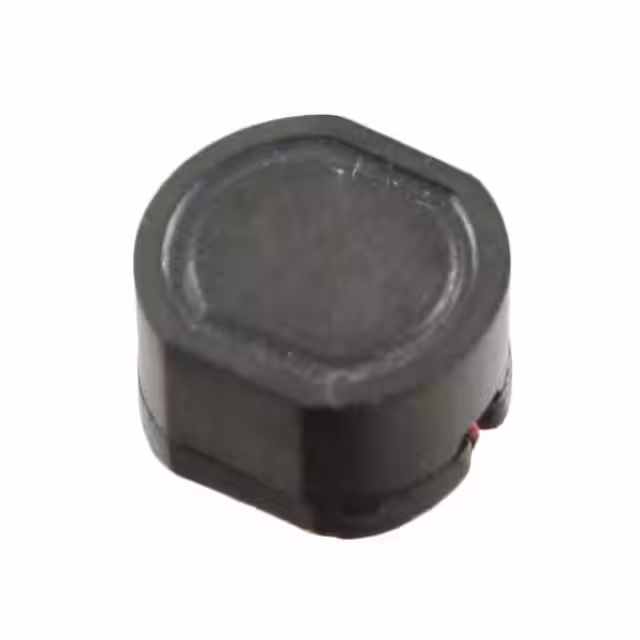

LDS0705-221M-RFIXED IND 220UH 584MA 680MOHM SM |
3,796 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 584 mA | 541mA | Shielded | 680mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
MPI4040R1-1R0-RFIXED IND 1UH 3.7A 40 MOHM SMD |
1,759 | - |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 3.7 A | 7.7A | Shielded | 40mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
