Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1012V2-R080-RIND FLAT PAC 80NH 130A 2 PADS |
1,402 | - |
|
Datasheet | FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±10% | 84 A | 130A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
UP2.8B-390-RFIXED IND 39UH SMD |
4,495 | - |
|
Datasheet | UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
DR74-101FIXED IND 100UH 860MA 383MOHM SM |
4,267 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 860 mA | 990mA | Shielded | 383mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

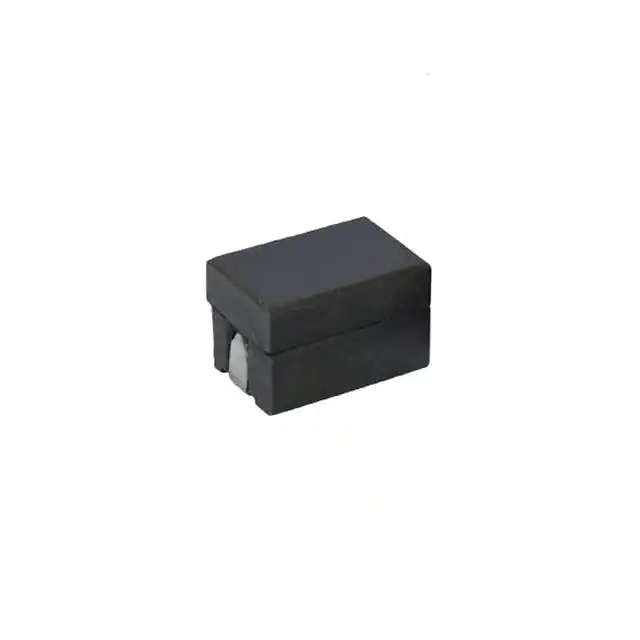

FP1108B1-R180-RFIXED IND 180NH 40A 0.29MOHM SMD |
3,291 | - |
|
Datasheet | FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 40 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.315" W (11.60mm x 8.00mm) | 0.315" (8.00mm) |
|
HCM1A1104-330-RFIXED IND 33UH 2.8A 105MOHM SMD |
4,356 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 2.8 A | 4.8A | Shielded | 105mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM1A1104-R90-RFIXED IND 900NH 20A 2.5MOHM SMD |
2,906 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 900 nH | ±20% | 20 A | 22A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
DRA124-820-RFIXED IND 82UH 1.285A 257MOHM SM |
1,322 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.285 A | 2.232A | Shielded | 257mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
FP0609V1-R100-RFLAT-PAC IND 100NH 69A SMT 2 |
4,071 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UP3B-150-RFIXED IND 15UH 3.9A 31.7MOHM SMD |
1,189 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.9 A | 4.3A | Unshielded | 31.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
MPIA4040R4-100-RFIXED IND 10UH 1.9A 148 MOHM SMD |
1,095 | - |
|
Datasheet | MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 148mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
