Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX06-14621FIXED IND 33UH 7.7A 14.1MOHM SMD |
3,139 | - |
|
Datasheet | CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±0.25% | 7.7 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|
|
CTX06-14622FIXED IND 22UH 8.5A 11.7MOHM SMD |
1,938 | - |
|
Datasheet | CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±0.25% | 8.5 A | - | Unshielded | 11.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|

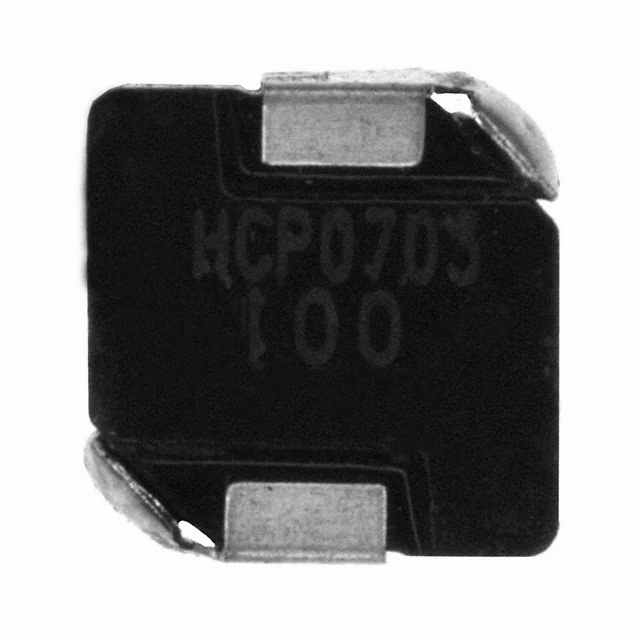

HCP0703-100-RFIXED IND 10UH 3A 105 MOHM SMD |
1,925 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

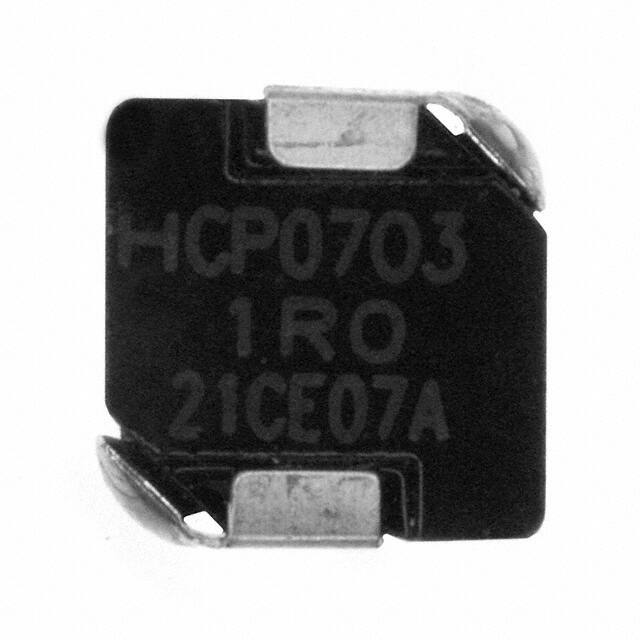

HCP0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
4,968 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

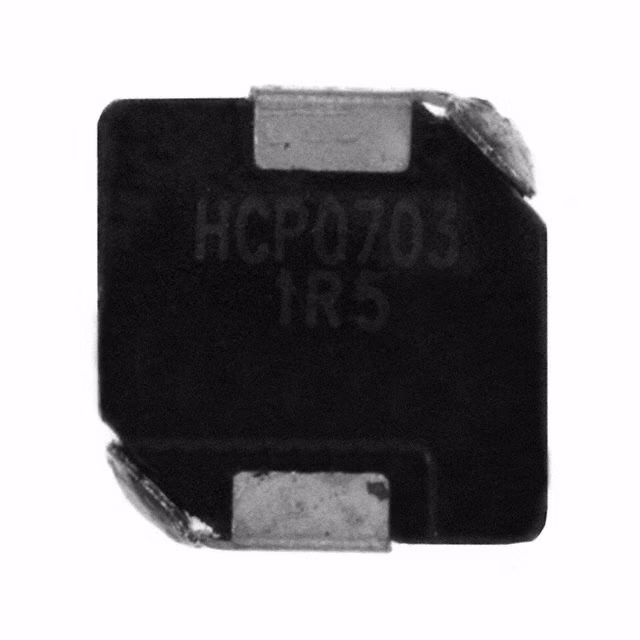

HCP0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD |
2,064 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

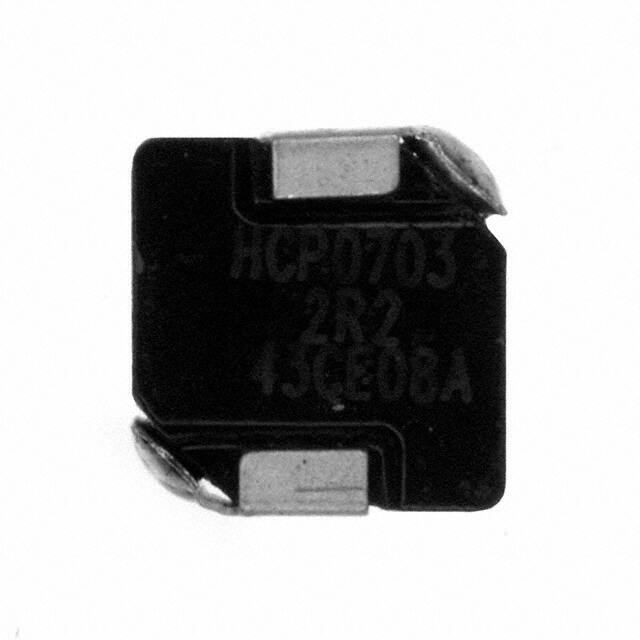

HCP0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
2,417 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

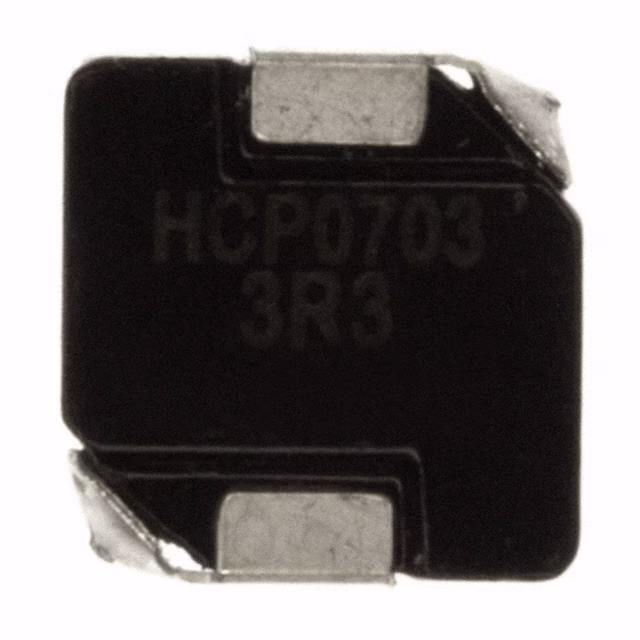

HCP0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
4,892 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

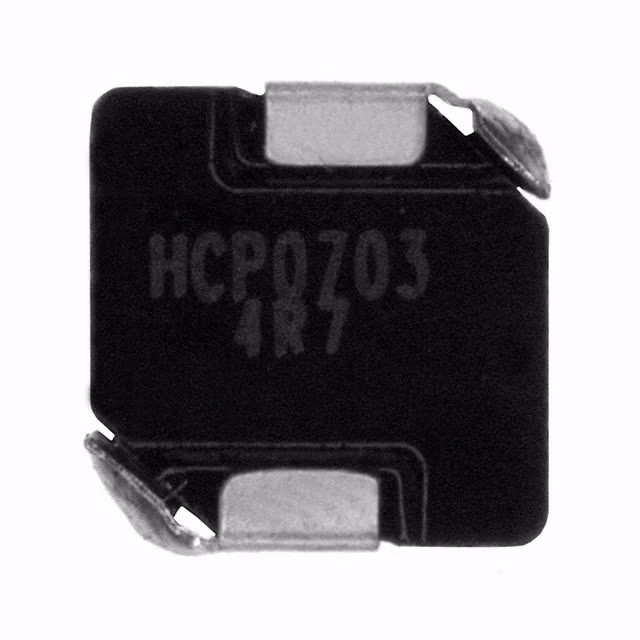

HCP0703-4R7-RFIXED IND 4.7UH 5.5A 40 MOHM SMD |
4,211 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

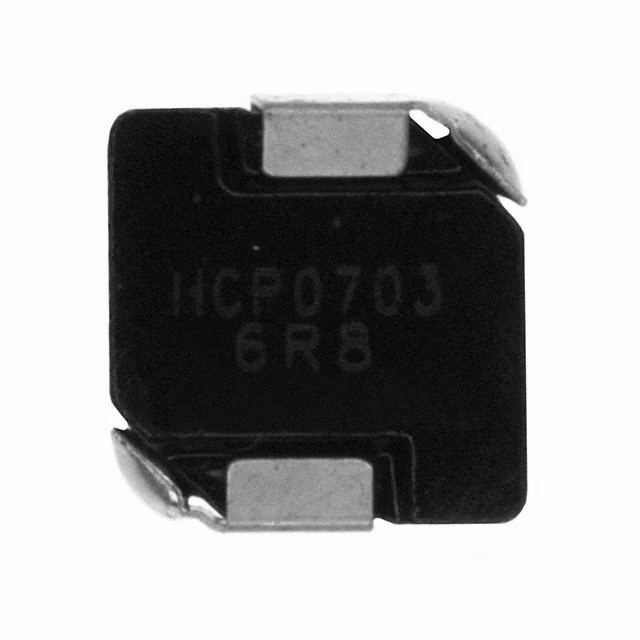

HCP0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD |
1,379 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

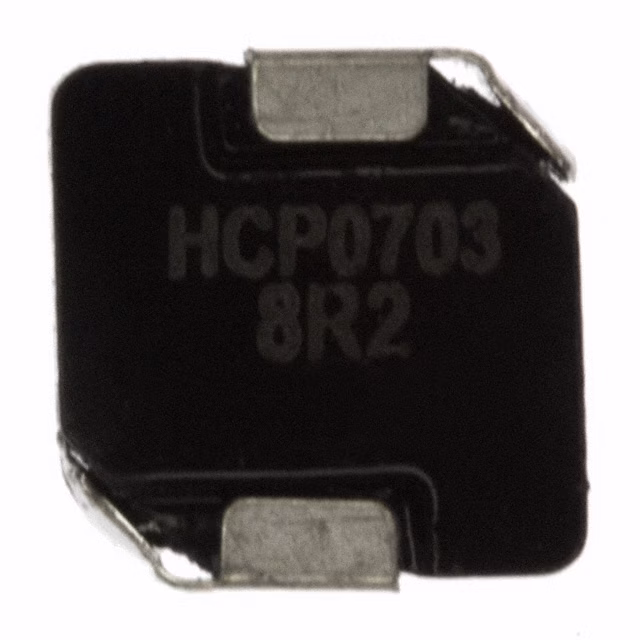

HCP0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD |
1,262 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
