Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3110-4R7-RFIXED IND 4.7UH 590MA 285MOHM SM |
4,006 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 590 mA | 680mA | Shielded | 285mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-6R8-RFIXED IND 6.8UH 540MA 346MOHM SM |
3,040 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 540 mA | 580mA | Shielded | 346mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-R82-RFIXED IND 820NH 1.3A 58.9MOHM SM |
2,185 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 1.3 A | 1.67A | Shielded | 58.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|

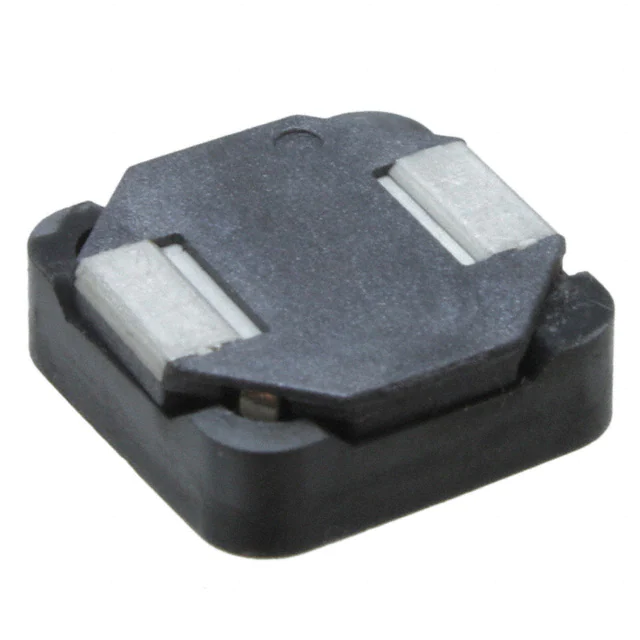

DRA124-R47-RFIXED IND 470NH 15.15A 1.9 MOHM |
2,171 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15.15 A | 30.8A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

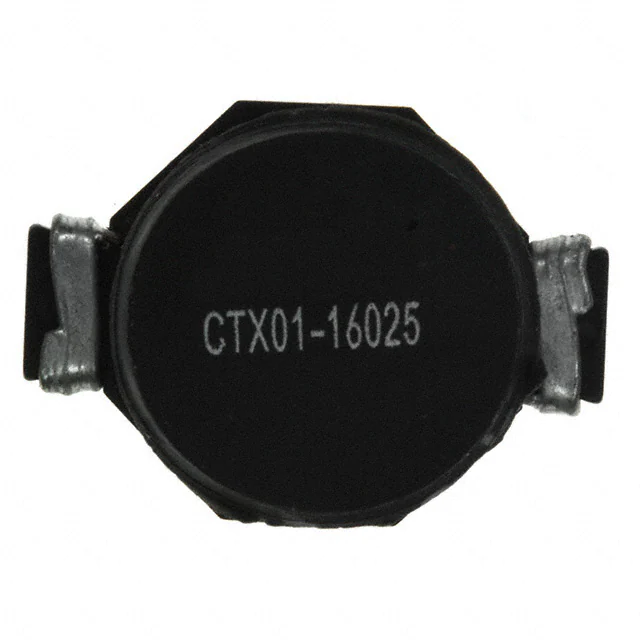

CTX01-16025FIXED IND 120UH 2A 62 MOHM SMD |
2,707 | - |
|
Datasheet | CTX | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 120 µH | ±25% | 2 A | 1.7A | Unshielded | 62mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.506" W (17.70mm x 12.85mm) | 0.297" (7.55mm) |
|
CTX02-12236FIXED IND 500UH 2.6A 200 MOHM TH |
3,882 | - |
|
Datasheet | PFC | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | - | 2.6 A | - | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.224" Dia (31.08mm) | 0.750" (19.05mm) |
|

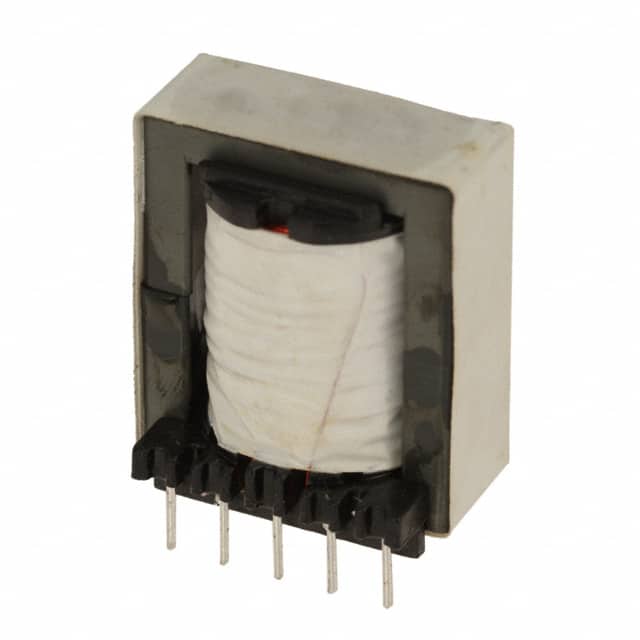

CTX16-15954FIXED IND 1MH 3.1A 212 MOHM TH |
2,166 | - |
|
Datasheet | PFC | Radial, Vertical, 10 Leads | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 3.1 A | - | Unshielded | 212mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" L x 0.945" W (30.00mm x 24.00mm) | 1.417" (36.00mm) |
|
MPI4040R1-R10-RFIXED IND 90NH 8A 8.5 MOHM SMD |
1,224 | - |
|
Datasheet | MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 90 nH | ±20% | 8 A | 32A | Shielded | 8.5mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
.jpg "MPI2520R0-2R2-R")
|
MPI2520R0-2R2-RFIXED IND 2.2UH 2.2A 124MOHM SMD |
2,247 | - |
|
Datasheet | MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 2.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MPI2520R1-5R6-RFIXED IND 5.6UH 1.5A 240MOHM SMD |
2,060 | - |
|
Datasheet | MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 5.6 µH | ±20% | 1.5 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
