Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

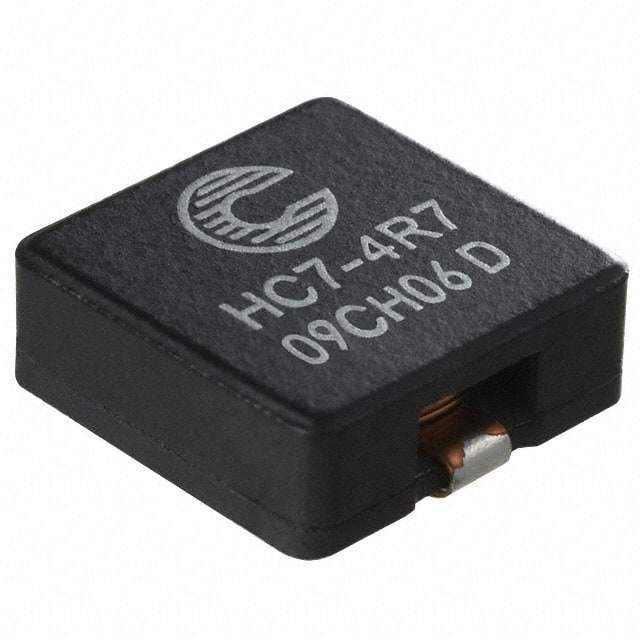

HC7-4R7-RFIXED IND 4.7UH 9.8A 9 MOHM SMD |
139 | - |
|
Datasheet | HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 9.8 A | 17.3A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
HC7-3R9-RFIXED IND 3.9UH 10.4A 7.9MOHM SM |
388 | - |
|
Datasheet | HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.9 µH | ±20% | 10.4 A | 20A | Unshielded | 7.9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|

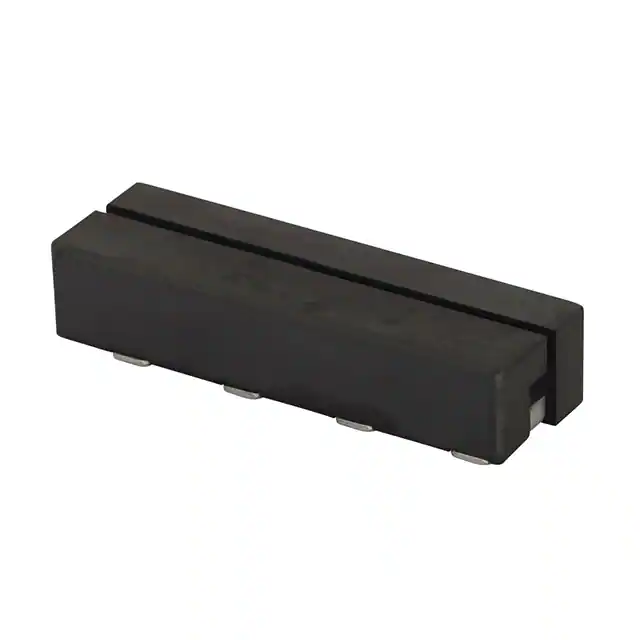

CLB1108-4-50TR-RFIXED IND 200NH 0.00028OHM SMD |
366 | - |
|
Datasheet | CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|
CTX100-1-52M-RFIXED IND 100UH 2.5A 106 MOHM TH |
186 | - |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2.5 A | 2.4A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.776" (19.70mm) |
|

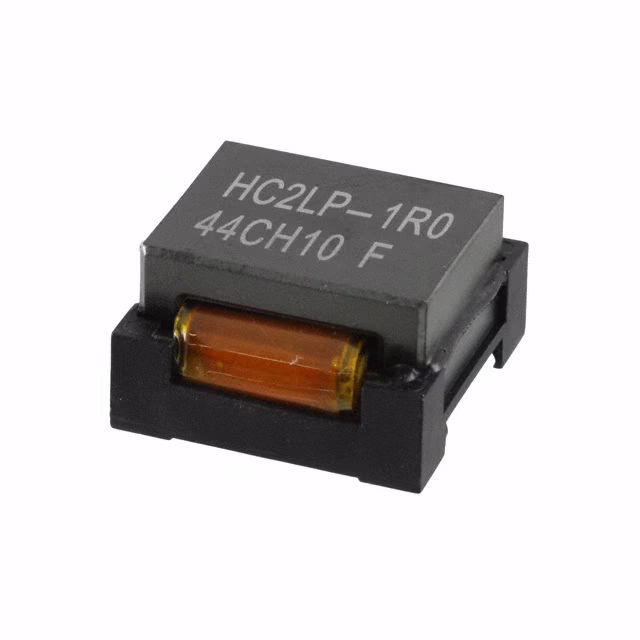

HC2LP-1R0-RFIXED IND 1UH 33A 1.3 MOHM SMD |
169 | - |
|
Datasheet | HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|

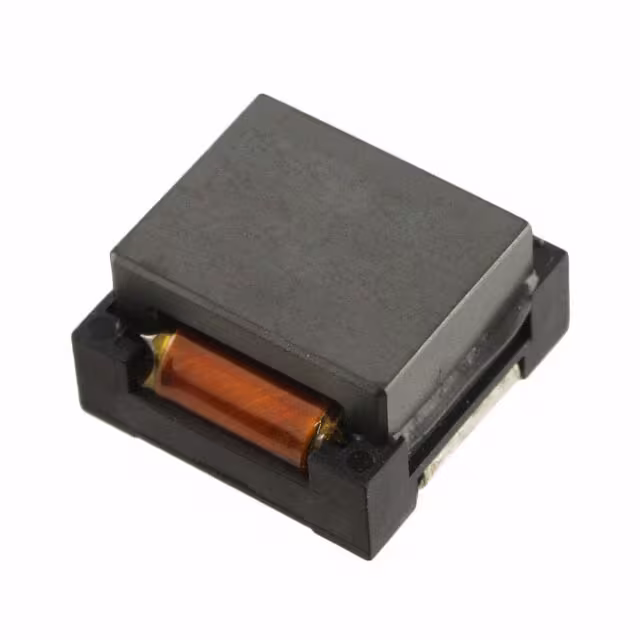

HC2LP-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM |
128 | - |
|
Datasheet | HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
HCM1A1707-100-RFIXED IND 10UH 12A 10MOHM SMD |
313 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 12 A | 14A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|

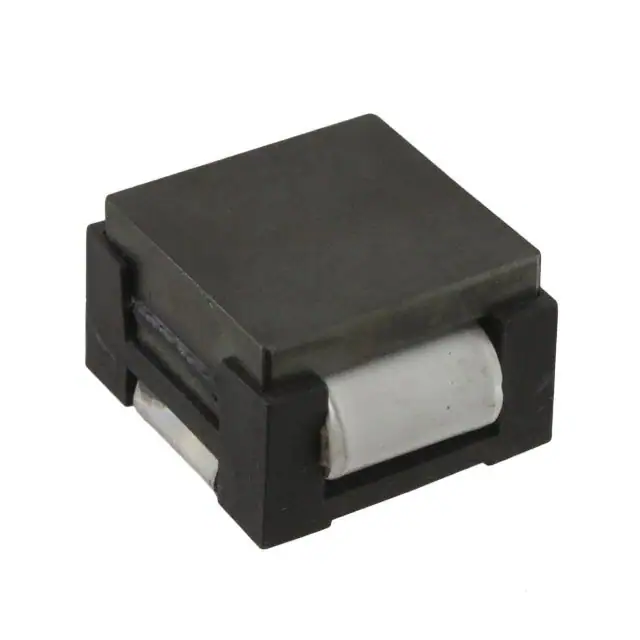

HC3-1R0-RFIXED IND 1UH 78A 0.42 MOHM SMD |
304 | - |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 78 A | 78A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
CL1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
475 | - |
|
Datasheet | CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|

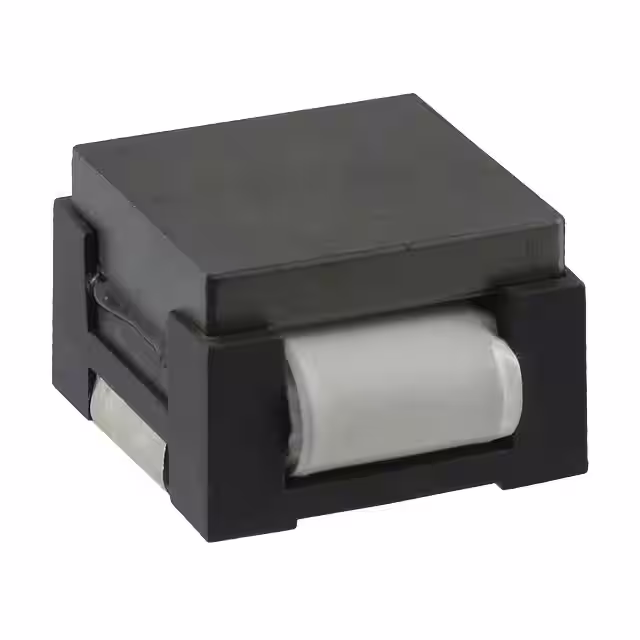

HC3-R50-RFIXED IND 500NH 78A 0.42MOHM SMD |
1,153 | - |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±20% | 78 A | 120A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.709" (18.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
