Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1394J050SMT-INDUCTOR 2220-T 390 UH 10 |
4,192 | - |
|
Datasheet | B82442T1 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 µH | ±5% | 260 mA | 520mA | Unshielded | 3.7Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1474J050SMT-INDUCTOR 2220-T 470 UH 10 |
4,833 | - |
|
Datasheet | B82442T1 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±5% | 240 mA | 460mA | Unshielded | 4.73Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82133A5152M000FIXED IND 25UH 1.5A 320 MOHM TH |
2,898 | - |
|
Datasheet | B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 25 µH | ±20% | 1.5 A | - | Unshielded | 320mOhm | - | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
|
|
B82133A5202M000FIXED IND 14UH 2A 130 MOHM TH |
2,158 | - |
|
Datasheet | B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 14 µH | ±20% | 2 A | - | Unshielded | 130mOhm | - | 57MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
|

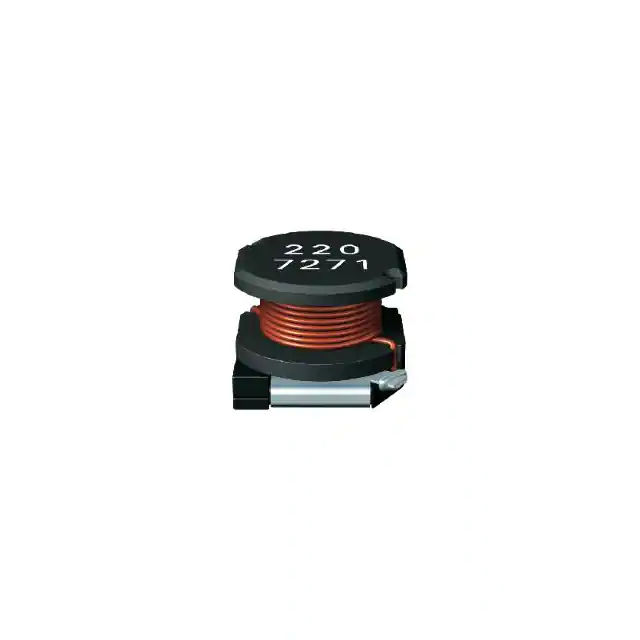

B82473M1683K000FIXED IND 68UH 850MA 280MOHM SMD |
4,198 | - |
|
Datasheet | B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 850 mA | 900mA | Unshielded | 280mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|

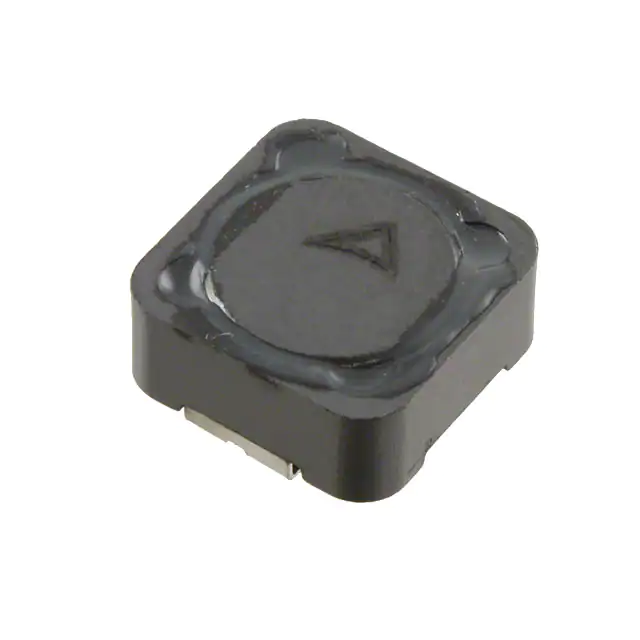

B82477G2132M000FIXED IND 1.3UH 8.7A 10 MOHM SMD |
2,713 | - |
|
Datasheet | B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.3 µH | ±20% | 8.7 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
B82477G2222M000FIXED IND 2.2UH 7A 14 MOHM SMD |
1,628 | - |
|
Datasheet | B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 7 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
B82477G2332M000FIXED IND 3.3UH 6A 17 MOHM SMD |
2,999 | - |
|
Datasheet | B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
B82477G2682M000FIXED IND 6.8UH 4.4A 22 MOHM SMD |
1,115 | - |
|
Datasheet | B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.4 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|

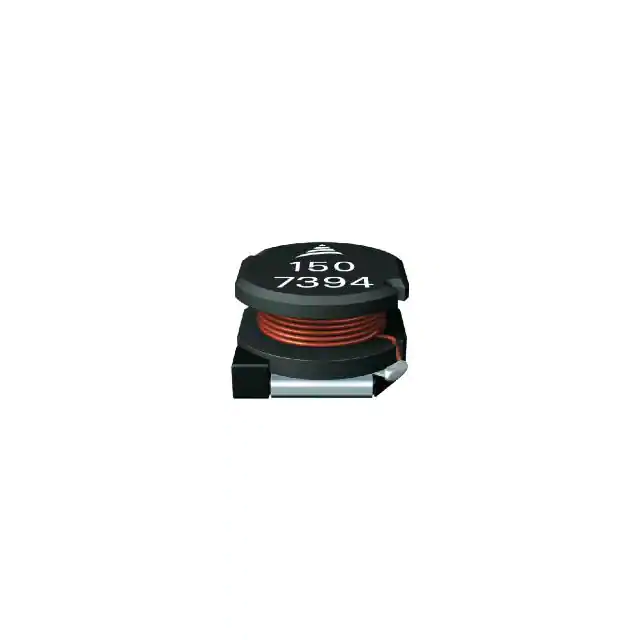

B82475A1103M000FIXED IND 10UH 2.6A 60 MOHM SMD |
3,819 | - |
|
Datasheet | B82475A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2.75A | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
