Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

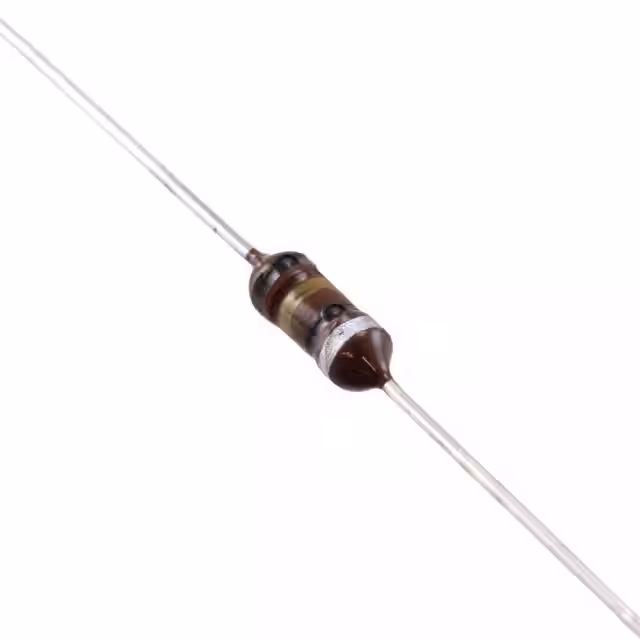

B78108S1122K000FIXED IND 1.2UH 1.15A 180MOHM TH |
4,592 | - |
|
Datasheet | BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1.15 A | - | Unshielded | 180mOhm Max | 55 @ 7.96MHz | 185MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1152J000FIXED IND 1.5UH 1.1A 200 MOHM TH |
3,625 | - |
|
Datasheet | BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 1.1 A | - | Unshielded | 200mOhm Max | 55 @ 7.96MHz | 165MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B82496C3390J000FIXED IND 39NH 300MA 800MOHM SMD |
11,637 | - |
|
Datasheet | SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 14 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3129A000FIXED IND 1.2NH 1.8A 25 MOHM SMD |
10,764 | - |
|
Datasheet | SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 nH | ±0.3nH | 1.8 A | - | Unshielded | 25mOhm Max | 8 @ 100MHz | 15GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

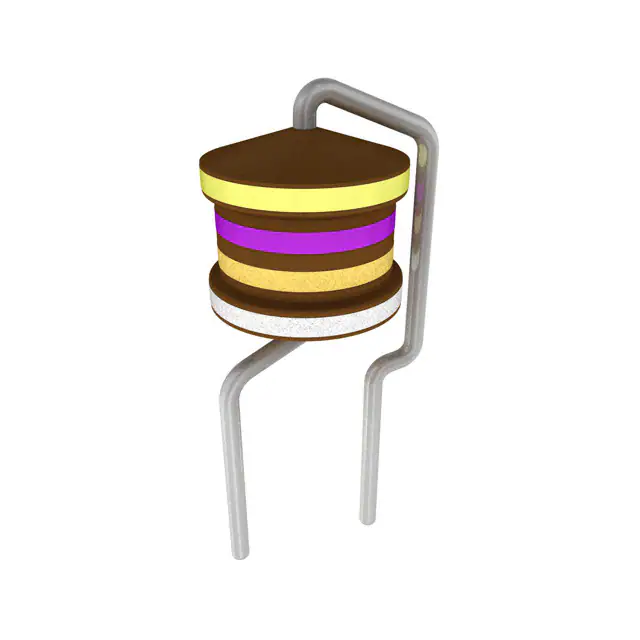

B78148E1472K000FIXED IND 4.7UH 2.75A 85 MOHM TH |
5,441 | - |
|
Datasheet | BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 2.75 A | 2.7A | Unshielded | 85mOhm Max | 45 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

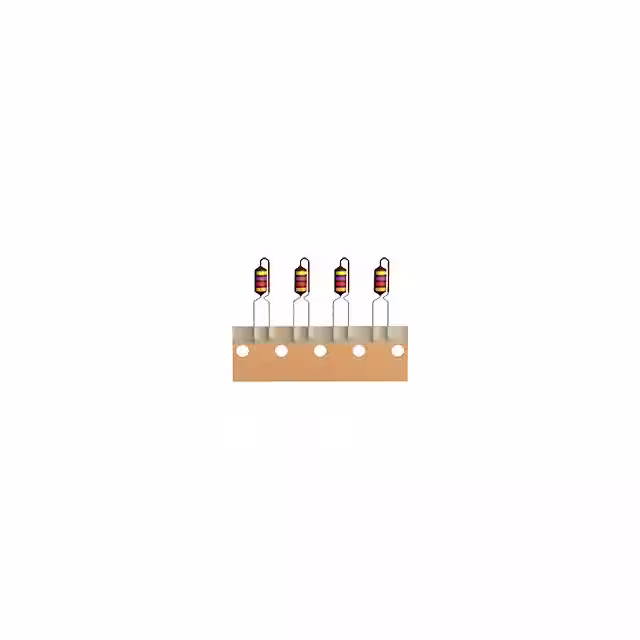

B78148S1105J009FIXED IND 1MH 130MA 14 OHM TH |
20,000 | - |
|
Datasheet | BC | Radial | Cut Tape (CT) | Active | Wirewound | - | 1 mH | ±5% | 130 mA | - | Unshielded | 14Ohm Max | 50 @ 252kHz | 1.6MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
.jpg "B82422A3221K100")
|
B82422A3221K100FIXED IND 220NH 280MA 640MOHM SM |
18,394 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±10% | 280 mA | - | Unshielded | 640mOhm Max | 25 @ 30MHz | 700MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
B78108E1152K000FIXED IND 1.5UH 3.8A 47 MOHM TH |
9,976 | - |
|
Datasheet | BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 3.8 A | 4.8A | Unshielded | 47mOhm Max | 60 @ 7.96MHz | 235MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1332K009FIXED IND 3.3UH 3.05A 73 MOHM TH |
9,961 | - |
|
Datasheet | B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.05 A | 3.25A | Unshielded | 73mOhm Max | 45 @ 7.96MHz | 75MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

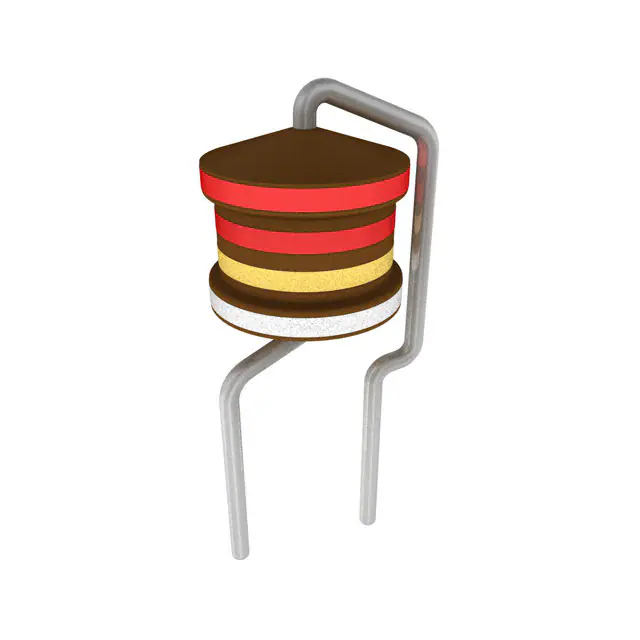

B78148E1222K000FIXED IND 2.2UH 3.4A 57 MOHM TH |
9,856 | - |
|
Datasheet | BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.4 A | 4A | Unshielded | 57mOhm Max | 50 @ 7.96MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
