Fuseholders
Use the filters and product table below to compare Fuseholders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03400312ZFUSE HLDR CART 250V 20A PNL MNT |
228 | - |
|
Datasheet | 340 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Copper Alloy | Tin | - |
|
LSCR002FUSE BLOK BLT DWN 600V 800A CHAS |
209 | - |
|
Datasheet | LSCR | Bulk | Active | Chassis Mount | Custom | 800 A | 3/8" Stud Mounted Fuses | Bolt Down | Block | 1 | 600V | - | Bolt Down | Steel | - | - |
|
LPSC0001ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
742 | - |
|
Datasheet | POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 1 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|

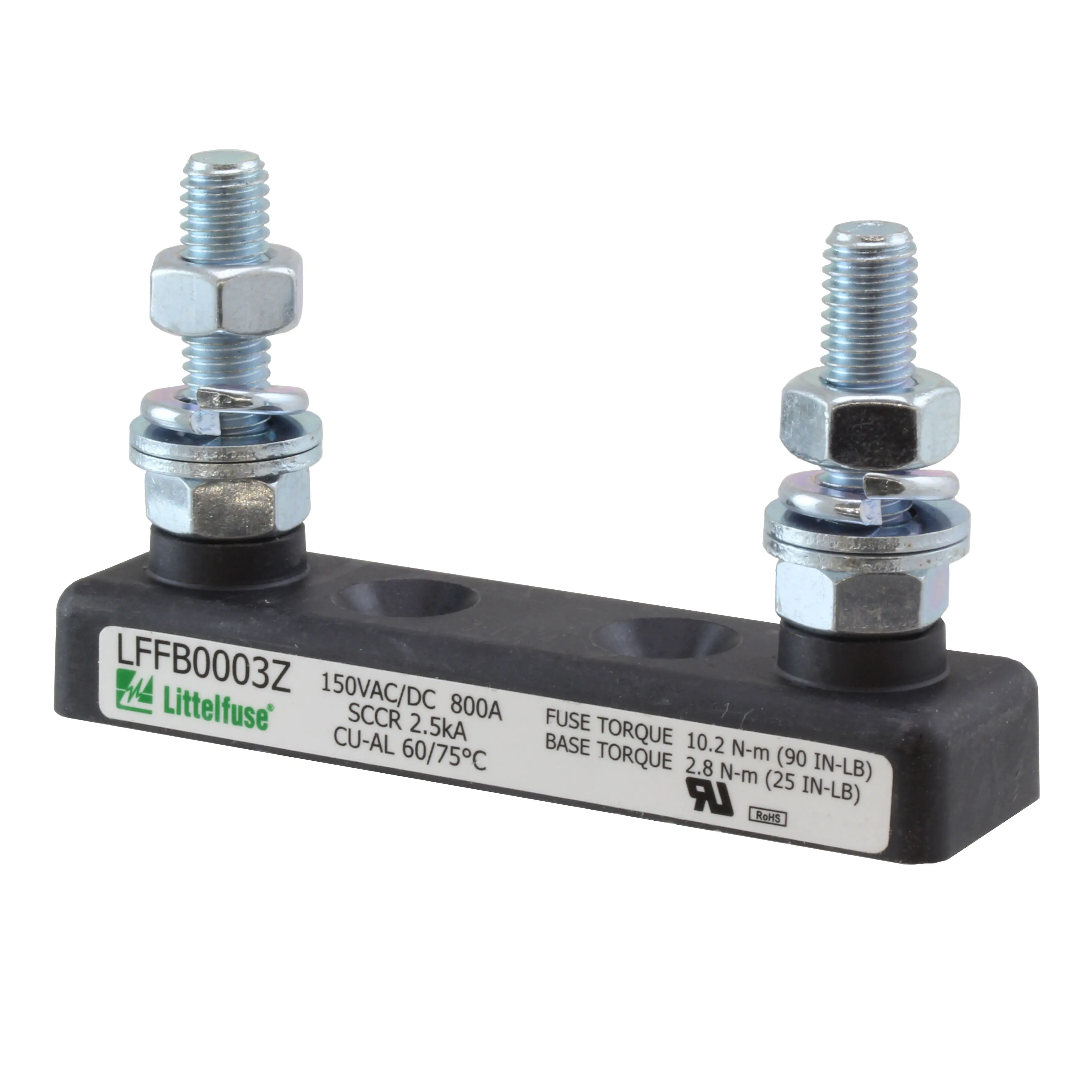

LFFB0003ZFUSE BLOK BLT DWN 150V 800A CHAS |
232 | - |
|
Datasheet | LFFB | Box | Active | Chassis Mount | 2.441" (62mm) Pitch | 800 A | Fuse Strips | Bolt Down | Block | 1 | 150V | - | Bolt Down | Steel | Zinc | - |
|
03400267ZFUSE HLDR CART 250V 30A PNL MNT |
4,233 | - |
|
Datasheet | 340 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | - | - | - |
|
LFPXV0001ZFUSE HLDR 1500V 85MM PHOTOVO |
129 | - |
|
Datasheet | POWR-GARD® LFPXV | Box | Active | DIN Rail | 0.394" Dia x 3.346" L (10mm x 85mm) | 30 A | 10mm x 85mm | Cartridge | Holder | 1 | 1500V | Vertical | Box Lug | Copper Alloy | Zinc | - |
|

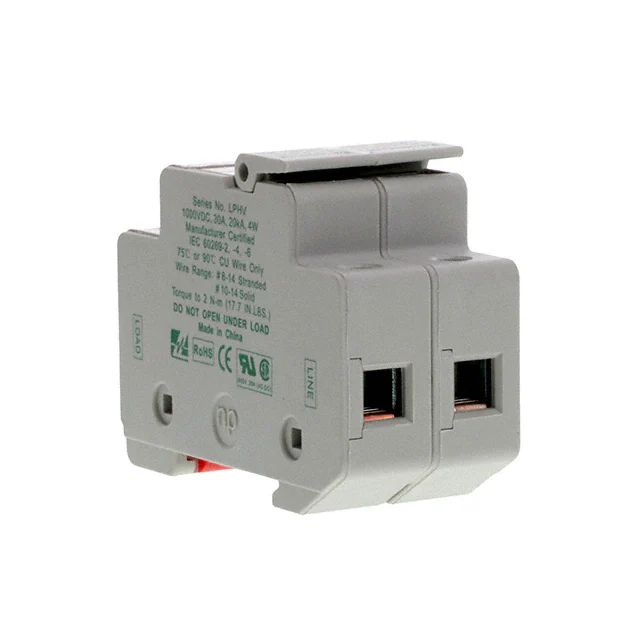

LPHV0002ZFUSE HLDR CART 1000V 30A DINRAIL |
2,887 | - |
|
Datasheet | LPHV | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 1000V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LSCR1011000V GENERAL PURPOSE FUSE STUD |
332 | - |
|
Datasheet | POWR-GARD® LSCR | Box | Active | Chassis Mount | Custom | 400 A | 1/4" Stud Mounted Fuses | Bolt Down | Block | 1 | 1000V | - | Bolt Down | Steel | - | - |
|
LPSM0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
2,393 | - |
|
Datasheet | POWR-GARD® LPSM | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|

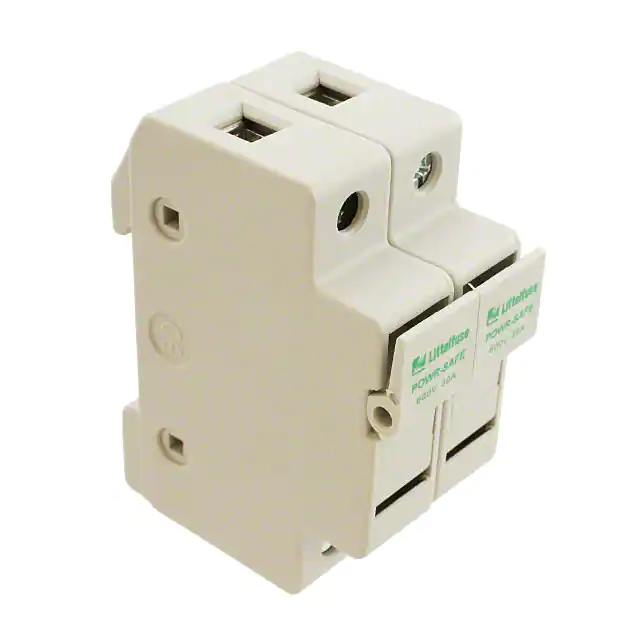

LPSC0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
2,846 | - |
|
Datasheet | POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
Fuseholders FAQ
Common questions about filtering, comparing and sourcing Fuseholders components.
How can I narrow the Fuseholders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fuseholders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
