Fuses
Use the filters and product table below to compare Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8020.5016.GFUSE CERM 3.15A 500VAC 400VDC |
4,036 | - |
|
Datasheet | SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | 400 V | Slow Blow | 1.5kA | 39.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
8020.5021.GFUSE CERM 10A 500VAC 400VDC 3AB |
3,824 | - |
|
Datasheet | SHT 6.3X32 | - | Active | Requires Holder | Cartridge, Ceramic | 10 A | 500 V | 400 V | Slow Blow | 1.5kA AC, 1kA DC | 700.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
8020.5020.GFUSE CERM 8A 500VAC 63VDC 3AB |
2,717 | - |
|
Datasheet | SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 500 V | 63 V | Slow Blow | 1.5kA AC, 20kA DC | 285.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
8020.5015.GFUSE CERM 2.5A 500VAC 400VDC 3AB |
2,077 | - |
|
Datasheet | SHT 6.3X32 | - | Active | Requires Holder | Cartridge, Ceramic | 2.5 A | 500 V | 400 V | Slow Blow | 1.5kA | 20.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
3404.0021.22FUSE BRD MNT 10A 125VAC/VDC 2SMD |
16,578 | - |
|
Datasheet | OMF 125 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 100A | 54.0 | cURus | -55°C ~ 125°C | - | 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm) | |
|
|
3404.0009.22FUSE BRD MNT 1A 125VAC/VDC 2SMD |
3,281 | - |
|
Datasheet | OMF 125 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 100A | 0.078 | cURus | -55°C ~ 125°C | - | 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm) | |
|
|
3404.0016.22FUSE BRD MNT 4A 125VAC/VDC 2SMD |
1,917 | - |
|
Datasheet | OMF 125 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 100A | 2.1 | cURus | -55°C ~ 125°C | - | 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm) | |
|

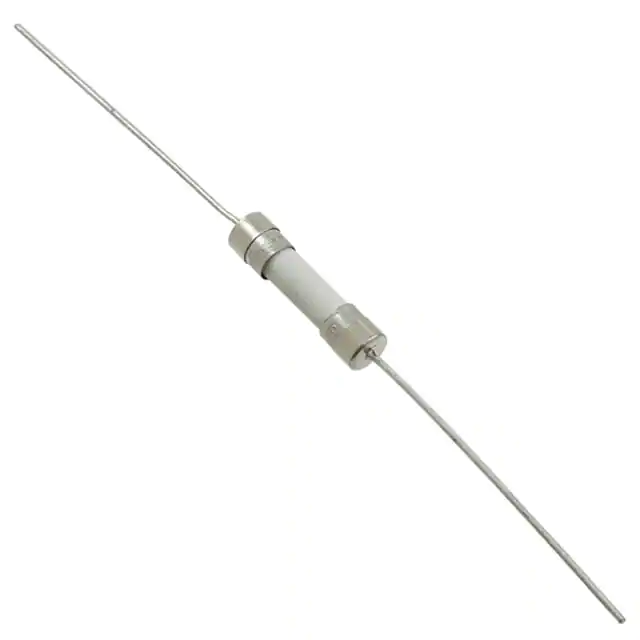

0001.2514.PTFUSE CERM 10A 250VAC 150VDC 5X20 |
5,802 | - |
|
Datasheet | SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 250 V | 150 V | Slow Blow | 1kA AC, 1.5kA DC | 400.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.2516.PTFUSE CERM 16A 250VAC 125VDC 5X20 |
5,489 | - |
|
Datasheet | SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 16 A | 250 V | 125 V | Slow Blow | 500A AC, 1.5kA DC | 1500.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.2515.PTFUSE CERM 12.5A 250VAC 125VDC |
2,612 | - |
|
Datasheet | SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12.5 A | 250 V | 125 V | Slow Blow | 500A AC, 1.5kA DC | 563.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) |
Fuses FAQ
Common questions about filtering, comparing and sourcing Fuses components.
How can I narrow the Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
