Fuses
Use the filters and product table below to compare Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0487016.MXPFUSE CERAMIC 16A 420VAC 420VDC |
309 | - |
|
Datasheet | 487 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 16 A | 420 V | 420 V | Fast Blow | 200A AC, 300A DC | 260.0 | TUV, UR | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
 Series.jpg "0505020.MXEP")
|

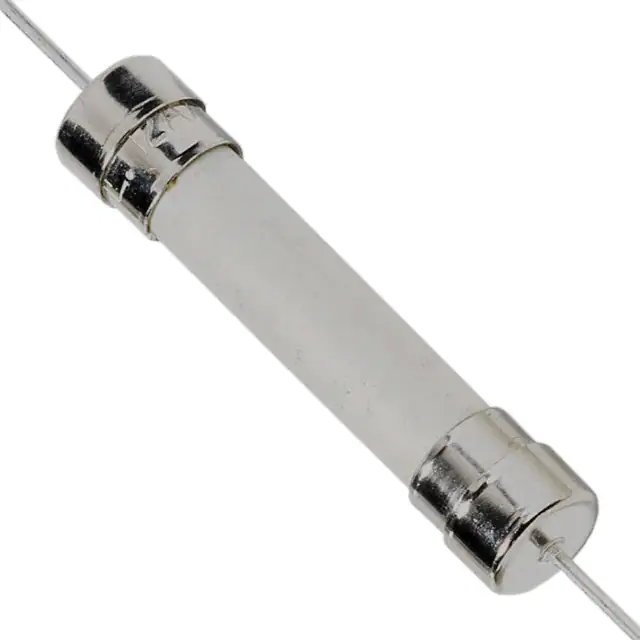

0505020.MXEPFUSE CERM 20A 500VAC 500VDC 3AB |
1,588 | - |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 101.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456040.DRSDFUSE BRD MT 40A 125VAC 75VDC SMD |
2,930 | - |
|
Datasheet | NANO²® 456SD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | 125 V | 75 V | Fast Blow | 100A AC, 600A DC | 1700.0 | cURus, PSE | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0456050.DRSDEFUSE BRD MT 50A 250VAC 80VDC SMD |
1,028 | - |
|
Datasheet | NANO²® 456SDE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 250 V | 80 V | Fast Blow | 150A AC, 600A DC | 2700.0 | cURus | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0154.062DRFUSE BRD MNT 62MA 125VAC/VDC SMD |
4,841 | - |
|
Datasheet | OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0456025.ERFUSE BRD MT 25A 125VAC 72VDC SMD |
440 | - |
|
Datasheet | NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 125 V | 72 V | Fast Blow | 100A AC, 500A DC | 45.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
0275025.MXLFUSE BRD MNT 25A 32VAC 32VDC AXL |
1,293 | - |
|
Datasheet | PICO® 275 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 25 A | 32 V | 32 V | Fast Blow | 100A AC, 300A DC | 192.0 | UL | -55°C ~ 125°C | - | 0.133" Dia x 0.310" L (3.38mm x 7.87mm) | |
|
0463030.ERFUSE BRDMT 30A 250VAC/100VDC SMD |
5,273 | - |
|
Datasheet | 463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 916.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
|
0505025.MXEPFUSE CERM 25A 500VAC 500VDC 3AB |
1,058 | - |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 145.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
|
0456050.DRSDFUSE BRD MT 50A 125VAC 75VDC SMD |
2,515 | - |
|
Datasheet | NANO²® 456SD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 125 V | 75 V | Fast Blow | 100A AC, 600A DC | 2700.0 | cURus, PSE | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) |
Fuses FAQ
Common questions about filtering, comparing and sourcing Fuses components.
How can I narrow the Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
