High Frequency (RF) Relays
Browse available High Frequency (RF) Relays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2904-05-421RELAY RF SPST-NO 500MA 5V |
691 | - |
|
Datasheet | 2900 | Tube | Active | Non Latching | 13.5 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
1462050-9RELAY RF SPDT 2A 12V |
400 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 5.8 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
9853-05-20TRRELAY RF SPDT 100MA 5V |
965 | - |
|
Datasheet | 9853 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 50VAC, 50VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
ARN10A12RELAY RF SPDT 12V |
507 | - |
|
Datasheet | ARN | Tray | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
IM03DGRRF Relay, 2 Form C, DPDT, Moment |
44,400 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IM26TSRF Relay, 2 Form C, DPDT, Moment |
4,557 | - |
|
Datasheet | * | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ARE10A4HZRELAY RF SPDT 500MA 4.5V |
133 | - |
|
Datasheet | ARE | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A03RELAY RF SPDT 500MA 3V |
264 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A24RELAY RF SPDT 500MA 24V |
426 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

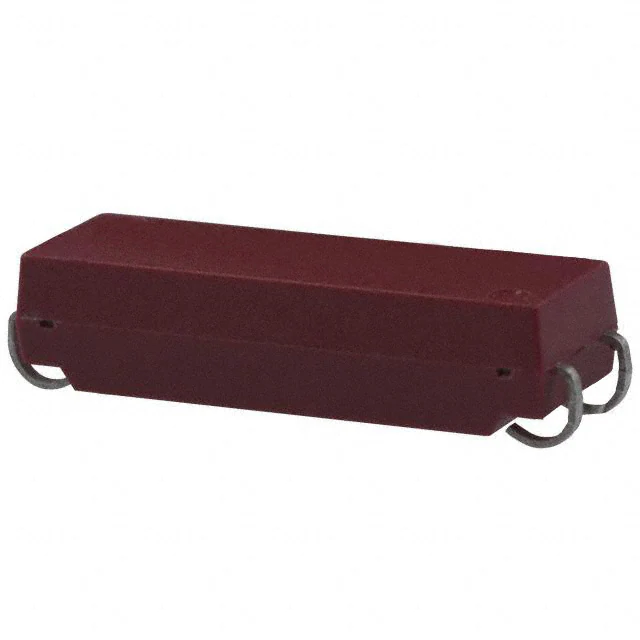

9202-05-20TRRELAY RF SPST-NO 500MA 5V |
1,415 | - |
|
Datasheet | 9200 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
1462050-6RELAY RF SPDT 2A 3V |
2,563 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 23.4 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
1-1462051-5RELAY RF SPDT 2A 24V |
3,653 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Discontinued at Digi-Key | Latching, Dual Coil | 5.8 mA | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 18 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6K-2F-RF DC9RELAY RF DPDT 1A 9V |
300 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 11.3 mA | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 7.2 VDC | 0.9 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR03-DC5SIGNAL RELAYS - SMT TAPE & REEL |
9,300 | - |
|
Datasheet | G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
ARJ20A12ZRELAY RF DPDT 300MA 12V |
866 | - |
|
Datasheet | ARJ | Tape & Reel (TR) | Active | Non Latching | 16.7 mA | 12VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
|
G6K 1387HRELAY RF DPDT 1A 5V T&R |
9,300 | - |
|
Datasheet | G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2P-RF-DC24RF Relay, 2 Form C, DPDT, Moment |
269 | - |
|
Datasheet | G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1486FLOW SIGNAL RELAY |
269 | - |
|
Datasheet | G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1219GRELAY RF DPDT 1A 5V |
362 | - |
|
Datasheet | G6K-RF | Bulk | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-DC5RELAY |
362 | - |
|
Datasheet | G6K-RF | - | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
High Frequency (RF) Relays FAQ
Common questions about selecting, comparing and sourcing High Frequency (RF) Relays components through Winsun (HK) Electronics.
What should I check when selecting High Frequency (RF) Relays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific High Frequency (RF) Relays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find High Frequency (RF) Relays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for High Frequency (RF) Relays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
