IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

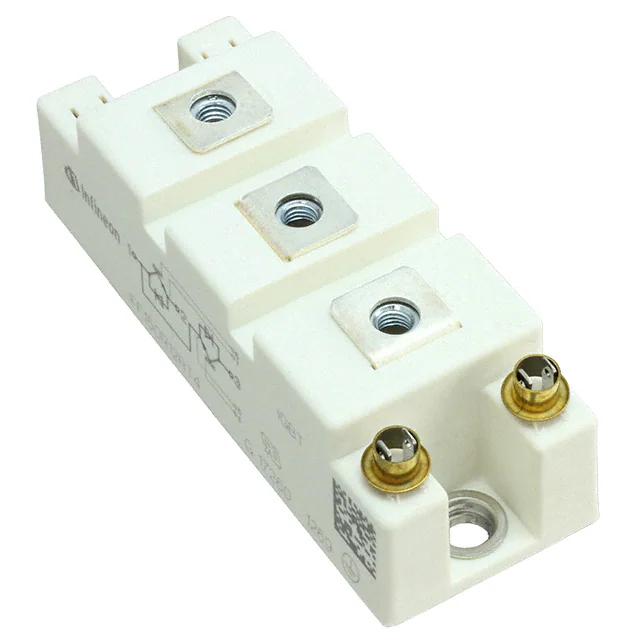

FF150R12RT4HOSA1IGBT MOD 1200V 150A 790W |
6,959 | - |
|
Datasheet | C | Module | Tray | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F417MR12W1M1HB70BPSA1LOW POWER EASY |
2,023 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

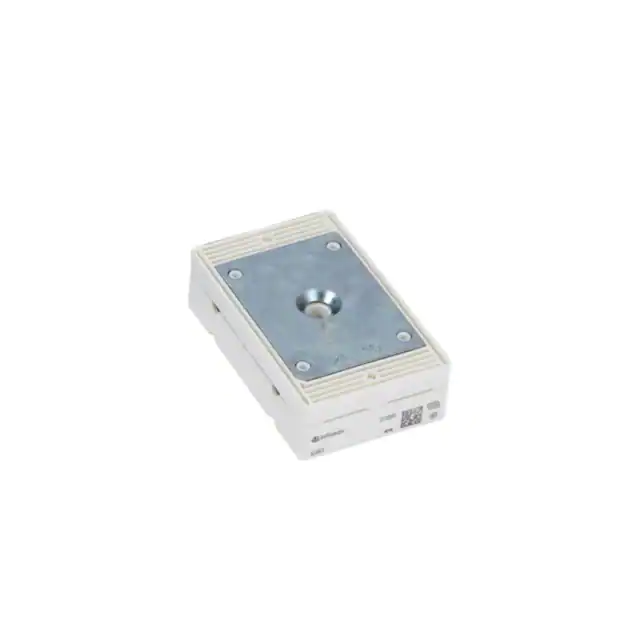

FP25R12U1T4BPSA1IGBT MOD 1200V 39A 190W |
5,123 | - |
|
Datasheet | SmartPIM1 | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 190 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R07U1E4BPSA1IGBT MOD 650V 100A 275W |
3,157 | - |
|
Datasheet | SmartPACK1 | Module | Tray | Last Time Buy | Trench Field Stop | Full Bridge | 650 V | 100 A | 275 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS100R12N2T4PBPSA1IGBT MODULE LOW POWER ECONO |
2,174 | - |
|
Datasheet | EconoPACK™ 2 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF225R17ME4PBPSA1IGBT MOD 1700V 450A 20MW |
5,607 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 450 A | - | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
IRG7T400SD12BIGBT MOD 1200V 780A POWIR 62 |
5,894 | - |
|
Datasheet | - | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 780 A | 2140 W | 2.2V @ 15V, 400A | 4 mA | 58.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
FS75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
9,728 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FF300R12ME4PB11BPSA1IGBT MOD 1200V 600A 20MW |
6,338 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
DF300R12KE3HOSA1IGBT MOD 1200V 480A 1470W |
7,487 | - |
|
Datasheet | - | Module | Tray | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
IGBT Modules FAQ
Common questions about filtering, comparing and sourcing IGBT Modules components.
How can I narrow the IGBT Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific IGBT Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
