IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS400R07A1E3BOSA1IGBT MOD 650V 500A 1250W |
3,765 | - |
|
Datasheet | - | Module | Tray | Obsolete | - | Three Phase Inverter | 650 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 1 mA | 26 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

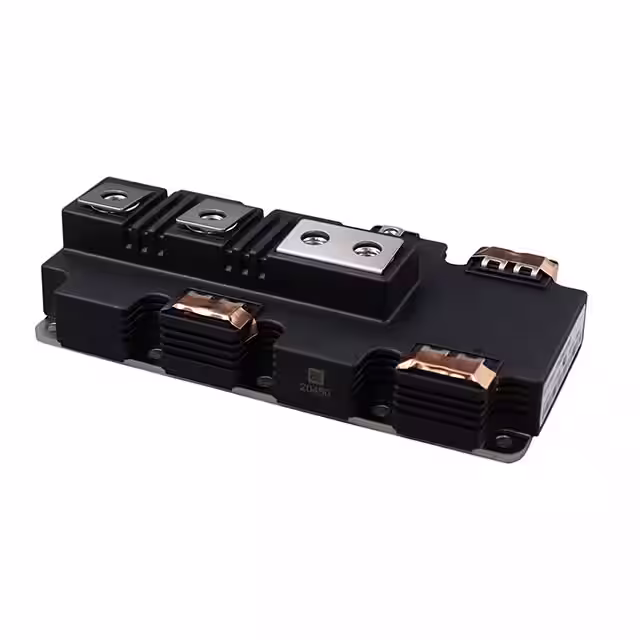

FF600R12IP4PBPSA1PP IHM I XHP 1 7KV AG-PRIME2-411 |
1 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Last Time Buy | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME2 |
|
FD650R17IE4BOSA2IGBT MOD 1700V 930A 4150W |
5,220 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | - | Single | 1700 V | 930 A | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R17IE4BOSA2IGBT MOD 1700V 620A 2800W |
9,797 | - |
|
Datasheet | - | Module | Tray | Active | - | 2 Independent | 1700 V | 620 A | 2800 W | 2.45V @ 15V, 450A | 5 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
BSM75GD120DLCBOSA1IGBT MOD 1200V 125A 500W |
5,222 | - |
|
Datasheet | - | Module | Tray | Obsolete | - | Full Bridge | 1200 V | 125 A | 500 W | 2.6V @ 15V, 75A | 92 µA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS770R08A6P2LBBPSA1HYBRID PACK DRIVE |
8,849 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 450 A | 654 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-1 |
|
|
FS400R07A3E3BOMA1IGBT MODULE |
2,577 | - |
|
Datasheet | * | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DF900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
6,834 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS225R12KE3BOSA1IGBT MOD 1200V 325A 1150W |
7,676 | - |
|
Datasheet | EconoPACK™+ | Module | Tray | Not For New Designs | Trench Field Stop | Full Bridge | 1200 V | 325 A | 1150 W | 2.15V @15V, 225A | 5 mA | 16 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS200R07A5E3S6BPSA1IGBT MODULE HYBRID PACK LIGHT |
3,993 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Obsolete | Trench | Full Bridge Inverter | 705 V | 200 A | 630 W | 1.7V @ 15V, 200A | 100 µA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
