IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP100R12W3T7B11BPSA1LOW POWER EASY |
1 | - |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | 1 mA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY3B |
|
FF450R07ME4BOSA1GBT MODULE 650V 450A |
3 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 650 V | 450 A | - | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-3 |
|
FF300R12KT3HOSA1IGBT MOD 1200V 480A 1450W |
7 | - |
|
Datasheet | C | Module | Bulk | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
IFF600B12ME4PB11BPSA1IGBT MOD 1200V 600A 40W |
6 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | 40 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS225R17OE4BOSA1IGBT MOD 1700V 350A 1450W |
1 | - |
|
Datasheet | EconoPACK™+ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 350 A | 1450 W | 2.3V @ 15V, 225A | 3 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

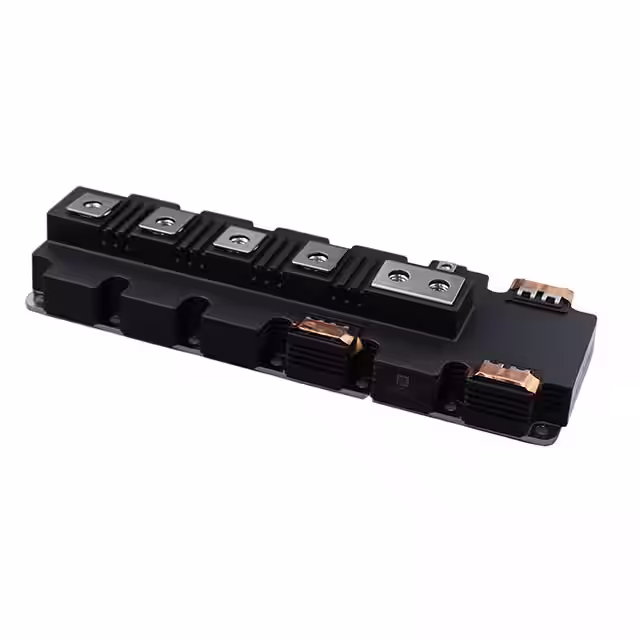

FF1500R17IP5RBPSA1PP IHM I XHP 1 7KV AG-PRIME3-5 |
2 | - |
|
Datasheet | PrimePACK™3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1700 V | 1500 A | - | 2.2V @ 15V, 1.5kA | 10 mA | 88 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1500R17IP5BPSA1IGBT MOD 1700V 1500A 20MW |
3,184 | - |
|
Datasheet | PrimePACK™3+ | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1700 V | 1500 A | - | 2.2V @ 15V, 1500A | 5 mA | 88 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
FF1800R12IE5BPSA1IGBT MOD 1200V 1800A 20MW |
1 | - |
|
Datasheet | PrimePACK™3+ | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FP06R12W1T4B3BOMA1IGBT MODULE 1200V 0 94W |
22 | - |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 12 A | 94 W | 2.25V @ 15V, 6A | 1 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
DF120R12W2H3B27BOMA1IGBT MOD 1200V 50A 180W |
5 | - |
|
Datasheet | - | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 50 A | 180 W | 2.4V @ 15V, 40A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
