IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

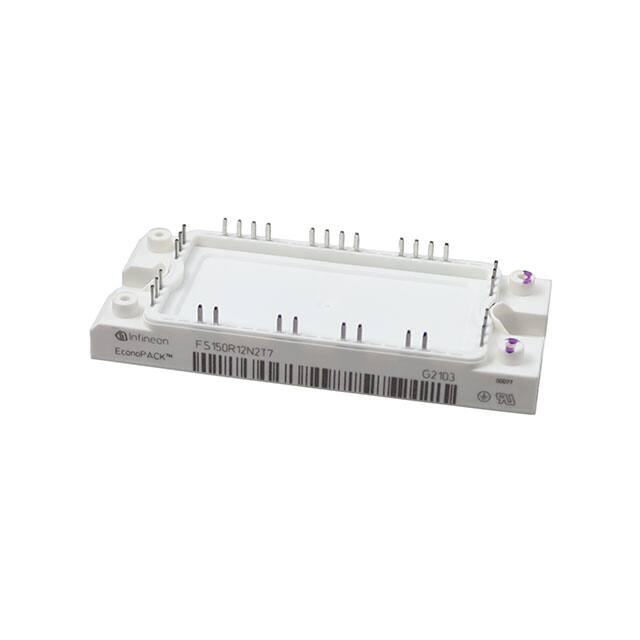

FS150R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-6 |
10 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Level Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
BSM400GA170DLSIGBT MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single | 1700 V | 800 A | 3120 W | 3.3V @ 15V, 400A | 1 mA | 27 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
FF300R12KT3EHOSA1IGBT MOD 1200V 480A 1450W |
3,013 | - |
|
Datasheet | C | Module | Bulk | Not For New Designs | - | 2 Independent | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF300R12KE3B2HOSA1MEDIUM POWER 62MM |
10 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Single Switch | 1200 V | 440 A | 1450 W | 2V @ 15V, 300A | 5 mA | 21000 pF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FS150R12PT4INSULATED GATE BIPOLAR TRANSISTO |
10 | - |
|
Datasheet | EconoPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 680 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO4-1-1 |
|
FS100R12KT4GB11BOSA1IGBT MOD 1200V 100A 515W |
8,094 | - |
|
Datasheet | EconoPACK™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FD900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
5,430 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | - | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17ME4B11BOSA1IGBT MOD 1700V 375A 1800W |
8,869 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R06ME3BOSA1MEDIUM POWER ECONO |
2 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R17N3E4B11BPSA1IGBT MOD 1700V 150A 20MW |
2,056 | - |
|
Datasheet | EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | - | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
