IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ3600R12KE3NOSA1IGBT MODULE |
6 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single Switch | 1200 V | 4700 A | 15000 W | 2.15V @ 15V, 3.6kA | 5 mA | 260 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | AG-IHM190-2-1 |
|
|
FZ3600R17KE3IGBT MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single Switch | 1700 V | - | 350 W | 2.45V @ 3.6kA, 15V | 5 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | AG-IHM190-2-1 |
|
|
FZ1500R33HL3BPSA3FZ1500R33 - INSULATED GATE BIPOL |
24 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FD16001200R17KF6CB2NOSA1IGBT MODULE |
22 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single Switch | 1700 V | 2600 A | - | 3.1V @ 15V, 1.6kA | 5 mA | 105 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FD250R65KE3KNOSA1IGBT MOD 6500V 250A 4800W |
5,076 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single | 6500 V | 250 A | 4800 W | 3.4V @ 15V, 250A | 5 mA | 69 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
|
FZ1400R33HE4BPSA1IGBT MODULE DIODE HVB130-3 |
9,839 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | 2 Independent | 3300 V | 1400 A | - | 2.3V @ 15V, 1400A (Typ) | 5 mA | 187 nF @ 25 V | Single Phase Bridge Rectifier | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FD200R65KF2-KIGBT MODULE |
22 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single Chopper | 3600 V | 200 A | 380000 W | 4.9V @ 15V, 200A | 200 µA | 28 nF @ 25 V | Standard | No | 125°C (TJ) | Chassis Mount | - |
|

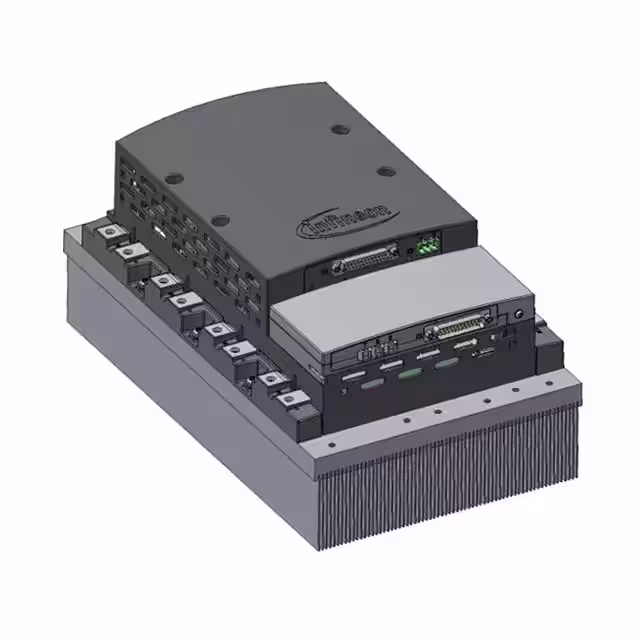

IFF2400P17AE4BPSA1IGBT MODULE 1700V IPM MIPAQP-4 |
7,968 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | - | - | - | - | - | - | No | -40°C ~ 65°C (TA) | - | Module |
|
FP10R12W1T7B11BOMA1LOW POWER EASY |
24 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP30R06W1E3B11BOMA1FP30R06 - IGBT MODULE |
58 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
