IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

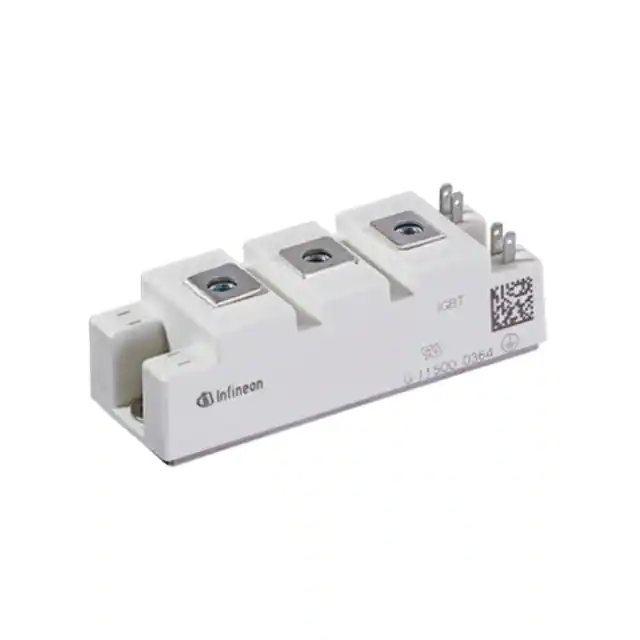

BSM150GB60DLCHOSA1IGBT MOD 600V 180A 595W |
2,352 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Single | 600 V | 180 A | 595 W | 2.45V @ 15V, 150A | 500 µA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
BSM200GB60DLCHOSA1IGBT MOD 600V 230A 730W |
9,681 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Single | 600 V | 230 A | 730 W | 2.45V @ 15V, 200A | 500 µA | 9 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM50GB60DLCHOSA1IGBT MODULE 600V 75A 280W |
7,350 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Single | 600 V | 75 A | 280 W | 2.45V @ 15V, 50A | 500 µA | 2.2 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
2PS12017E44G35911NOSA1IGBT MODULE 690V 574A 2160W |
5,707 | - |
|
Datasheet | PrimeSTACK™ | Module | Bulk | Obsolete | - | Three Phase Inverter | - | - | 2160 W | 2.45V @ 15V, 300A | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount | Module |
|
|
6MS16017P43W40382NOSA1IGBT MODULE 1700V 880A |
4,487 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount | Module |
|
|
6MS16017P43W40383NOSA1IGBT MODULE 1700V 880A |
3,312 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount | Module |
|
DDB2U30N08VRBOMA1IGBT MOD 600V 25A 83.5W |
9,102 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | 3 Independent | 600 V | 25 A | 83.5 W | 2.55V @ 15V, 20A | 1 mA | 880 pF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FF1200R12KE3NOSA1IGBT MODULE 1200V 5000W |
9,574 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | 2 Independent | 1200 V | - | 5000 W | 2.15V @ 15V, 1200A | 5 mA | 86 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF150R12YT3BOMA1IGBT MOD 1200V 200A 625W |
2,566 | - |
|
Datasheet | - | Module | Tray | Obsolete | - | 2 Independent | 1200 V | 200 A | 625 W | 2.15V @ 15V, 150A | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FF200R12MT4BOMA1IGBT MODULE 1200V 1050W |
6,105 | - |
|
Datasheet | EconoDUAL™ 2 | Module | Bulk | Obsolete | Trench Field Stop | 2 Independent | 1200 V | - | 1050 W | 2.15V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF225R12ME4B11BPSA1IGBT MOD 1200V 320A 1050W |
4,829 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1200 V | 320 A | 1050 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF225R17ME4B11BOSA1IGBT MOD 1700V 340A 1500W |
3,832 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | 340 A | 1500 W | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP35R12KT4BOSA1IGBT MOD 1200V 35A 210W |
2,673 | - |
|
Datasheet | EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP35R12KT4B15BOSA1IGBT MOD 1200V 35A 210W |
7,869 | - |
|
Datasheet | EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD-DF80R12W1H3_B52IGBT MOD 1200V 40A 215W |
5,325 | - |
|
Datasheet | PrimePACK™2 | Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 40 A | 215 W | 2.4V @ 15V, 40A | 1 mA | 235 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FP25R12KT4B11BOSA1IGBT MOD 1200V 25A 160W |
9,020 | - |
|
Datasheet | EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF800R12KF4IGBT MOD 1200V 800A 5000W |
3,125 | - |
|
Datasheet | - | Module | Bulk | Active | - | 2 Independent | 1200 V | 800 A | 5000 W | 3.2V @ 15V, 800A | 16 mA | 55 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF800R17KF6CB2NOSA1IGBT MODULE 1700V 6250W |
2,564 | - |
|
Datasheet | IHM-A | Module | Bulk | Obsolete | - | 2 Independent | 1700 V | - | 6250 W | 3.1V @ 15V, 800A | 1.5 mA | 52 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FD401R17KF6C_B2IGBT MOD 1700V 650A 3150W |
9,447 | - |
|
Datasheet | - | Module | Bulk | Active | - | Single Chopper | 1700 V | 650 A | 3150 W | 3.1V @ 15V, 400A | 5 mA | 27 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF401R17KF6C_B2IGBT MOD 1700V 650A 3150W |
5,544 | - |
|
Datasheet | - | Module | Bulk | Active | - | 2 Independent | 1700 V | 650 A | 3150 W | 3.1V @ 15V, 400A | 5 mA | 27 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
IGBT Modules FAQ
Common questions about selecting, comparing and sourcing IGBT Modules components through Winsun (HK) Electronics.
What should I check when selecting IGBT Modules components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific IGBT Modules part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find IGBT Modules parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for IGBT Modules components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
