IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

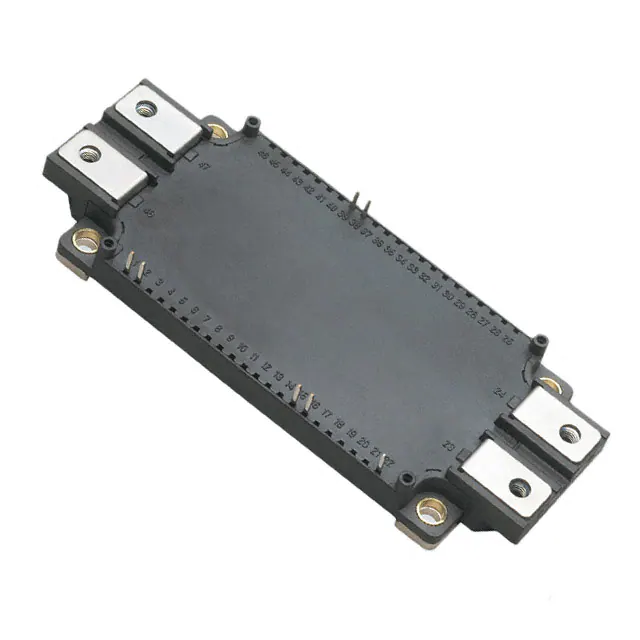

MG600Q2YS60AIGBT MOD 1200V 600A 4300W |
8,785 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 4300 W | 3.1V @ 15V, 600A | 1 mA | 41 nF @ 10 V | Standard | Yes | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM1400E3U-24NFIGBT MOD 1200V 1400A 3900W |
3,279 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM150DX-24SIGBT MOD 1200V 150A 1150W |
5,894 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 1150 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM400DY-34AIGBT MOD 1700V 400A 3780W |
9,635 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 400 A | 3780 W | 2.8V @ 15V, 400A | 1 mA | 98.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM600DU-12NFHIGBT MOD 600V 600A 1130W |
4,492 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.7V @ 15V, 600A | 1 mA | 166 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
CM100TX-24S1IGBT MOD 1200V 100A 625W |
3,756 | - |
|
Datasheet | - | Module | Tray | Active | - | Three Level Inverter | 1200 V | 100 A | 625 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100DY-34TMOD IGBT 100A 1700V DUAL |
5,692 | - |
|
Datasheet | * | - | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM100TJ-24FIGBT MOD 1200V 100A 390W |
5,107 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | Trench | Three Phase Inverter | 1200 V | 100 A | 390 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Three Phase Bridge Rectifier | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM75TJ-24FIGBT MOD 1200V 75A 357W |
6,460 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | Trench | Three Phase Inverter | 1200 V | 75 A | 357 W | 2.4V @ 15V, 75A | 1 mA | 29 nF @ 10 V | Three Phase Bridge Rectifier | No | -40°C ~ 150°C | Chassis Mount | Module |
