IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT400LH060NMODULES IGBT - DIAP IGBT |
6,907 | - |
|
Datasheet | FRED Pt® | Module | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 492 A | 1363 W | 2V @ 15V, 400A | 20 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-ETY020P120FIGBT MOD OUTPUT & SW EMIPAK 2B |
8,490 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

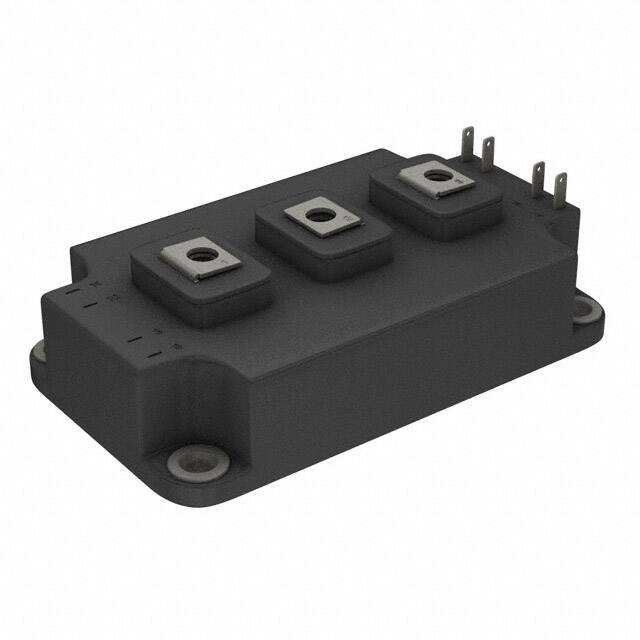

GA400TD25SIGBT MOD 250V 400A INT-A-PAK |
2,308 | - |
|
Datasheet | - | Dual INT-A-PAK (3 + 8) | Tube | Obsolete | - | Half Bridge | 250 V | 400 A | 1350 W | 1.6V @ 15V, 400A | 500 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GT300YH120NIGBT MOD 1200V 341A INT-A-PAK |
7,695 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 1200 V | 341 A | 1042 W | 2.17V @ 15V, 300A (Typ) | 300 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|

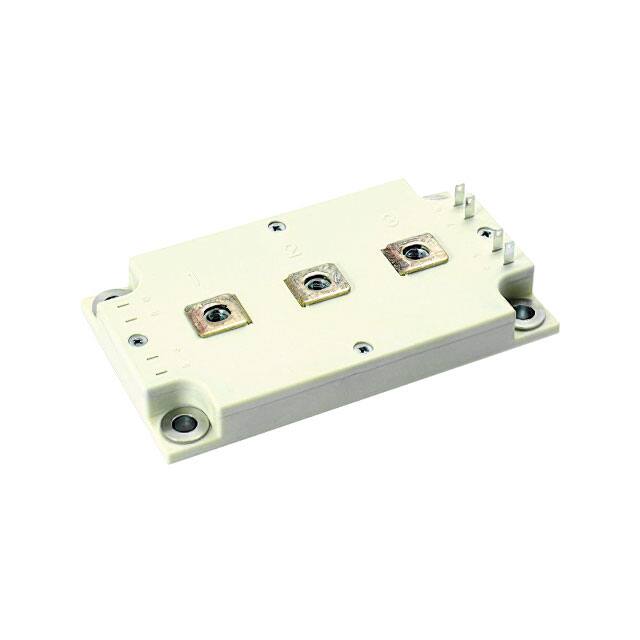

VS-GT300TD60SIGBT MOD 600V 580A INT-A-PAK |
2,554 | - |
|
Datasheet | FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 466 A | 882 W | 1.47V @ 15V, 300A | 200 µA | 24.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT400TD60SIGBT MOD 600V 758A INT-A-PAK |
6,091 | - |
|
Datasheet | FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 711 A | 1364 W | 1.4V @ 15V, 400A | 300 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT300FD060NIGBT MOD 600V 379A INT-A-PAK |
5,382 | - |
|
Datasheet | - | Dual INT-A-PAK (4 + 8) | Bulk | Obsolete | Trench Field Stop | Three Level Inverter | 600 V | 379 A | 1250 W | 2.5V @ 15V, 300A | 250 µA | 23.3 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
CPV362M4FIGBT MODULE 600V 8.8A 23W IMS-2 |
6,358 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 8.8 A | 23 W | 1.66V @ 15V, 8.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV362M4KIGBT MODULE 600V 5.7A 23W IMS-2 |
3,548 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 5.7 A | 23 W | 1.93V @ 15V, 3A | 250 µA | 450 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV362M4UIGBT MODULE 600V 7.2A 23W IMS-2 |
4,668 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 7.2 A | 23 W | 1.95V @ 15V, 7.2A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
