IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS770R08A6P2BBPSA1HYBRID PACK DRIVE |
5 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 450 A | 654 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-1 |
|
FF2MR12KM1HHPSA1MEDIUM POWER 62MM |
13 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-62MMHB |
|
FF650R17IE4DB2BOSA1IGBT MODULE 1700V 4150W |
4 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | - | 2 Independent | 1700 V | - | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF650R17IE4DPB2BOSA1IGBT MODULE 1700V 650A |
3 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 650 A | - | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1600R12IP7BOSA1PP IHM I |
6 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS450R17OE4PBOSA1IGBT MOD 1700V 900A 20MW |
4 | - |
|
Datasheet | EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1700 V | 900 A | - | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1000R17IE4PBOSA1IGBT MODULE 1700V 1000A |
2 | - |
|
Datasheet | PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 1000 A | 1000000 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS380R12A6T4LBBPSA1HYBRID PACK DRIVE AG-HYBRIDD-1 |
12 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Active | - | 3 Independent | 1200 V | 380 A | - | - | - | - | Standard | No | - | Chassis Mount | AG-HYBRIDD-2 |
|
FZ1600R12HP4HOSA2IGBT MODULE 1200V 1600A |
14 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 2400 A | 9400 W | 2.05V @ 15V, 1.6kA | 5 mA | 98 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS950R08A6P2LBBPSA1HYBRID PACK DRIVE AG-HYBRIDD-1 |
2 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Active | Trench Field Stop | 3 Independent | 750 V | 450 A | 870 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-2 |
|
|
FZ1600R17HP4HOSA2IGBT MODULE 1700V 1600A |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1300A | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1000R17IE4DB2BOSA1IGBT MODULE 1700V 6250W |
3 | - |
|
Datasheet | PrimePACK™3 | Module | Tray | Active | - | 2 Independent | 1700 V | - | 6250 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF3MR20KM1HPHPSA1MEDIUM POWER 62MM |
10 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 2000 V | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-62MMHB |
|
|
FF1400R17IP4PBOSA1IGBT MODULE 1700V 1400A |
2 | - |
|
Datasheet | PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 1400 A | - | 2.2V @ 15V, 1400A | 5 mA | 110 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF2400R12IP7BPSA1IGBT MODULE |
8 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF2400R12IP7PBPSA1PP IHM I |
9 | - |
|
Datasheet | PrimePACK™ | Module | Tray | Active | - | Half Bridge Inverter | 1200 V | 2400 A | - | - | - | - | Standard | No | - | Chassis Mount | AG-PRIME3+ |
|

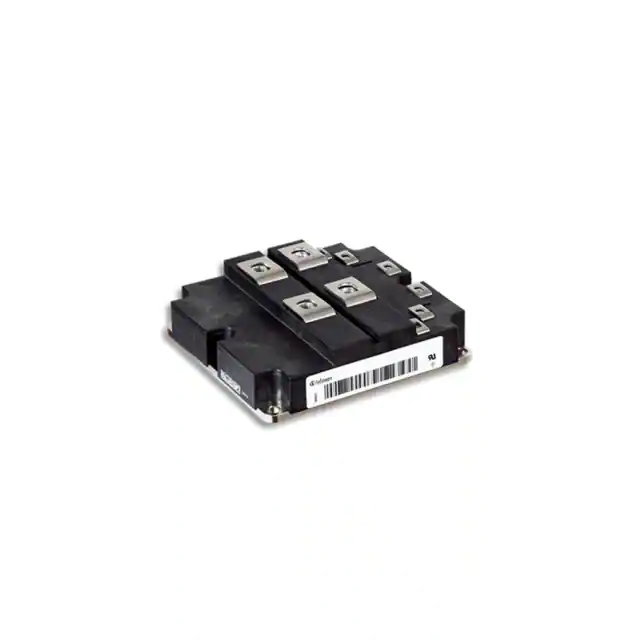

FF800R17KP4B2NOSA2IGBT MODULE 1700V 800A |
2 | - |
|
Datasheet | IHM-A | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 1200 A | 1200 W | - | 5 mA | 65 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | A-IHV130-3 |
|
FZ2400R12HE4B9HOSA2IGBT MODULE 1200V 3560A |
1 | - |
|
Datasheet | IHM-B | Module | Bulk | Active | Trench Field Stop | Single Switch | 1200 V | 3560 A | 13500 W | 2.1V @ 15V, 2400A | 5 mA | 150 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ2400R17HP4B2BOSA2IGBT MODULE 1700V 4800A |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 4800 A | 13000 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1200XTR17T2P5BPSA1XHP LV |
24 | - |
|
Datasheet | XHP™2 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 1200 A | 1200000 W | 2.25V @ 15V, 1.2kA | 10 mA | 56000 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
