Single IGBTs
Use the filters and product table below to compare Single IGBTs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRG7PG42UD-EPBFIGBT |
550 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | Trench | 1000 V | 85 A | 90 A | 2V @ 15V, 30A | 320 W | 2.105mJ (on), 1.182mJ (off) | Standard | 157 nC | 25ns/229ns | 600V, 30A, 10Ohm, 15V | 153 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IRG8P50N120KDPBFIGBT WITH ULTRAFAST SOFT RECOVER |
7,590 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | - | 1200 V | 80 A | 105 A | 2V @ 15V, 35A | 350 W | 2.3mJ (on), 1.9mJ (off) | Standard | 315 nC | 35ns/190ns | 600V, 35A, 5Ohm, 15V | 170 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG7PH50K10DPBFIGBT 1200V 90A TO247AC |
4,819 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | - | 1200 V | 90 A | 160 A | 2.4V @ 15V, 35A | 400 W | 2.3mJ (on), 1.6mJ (off) | Standard | 300 nC | 90ns/340ns | 600V, 35A, 5Ohm, 15V | 130 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG7PH50K10D-EPBFIGBT, 90A I(C), 1200V V(BR)CES, |
9,698 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | - | 1200 V | 90 A | 160 A | 2.4V @ 15V, 35A | 400 W | 2.3mJ (on), 1.6mJ (off) | Standard | 300 nC | 90ns/340ns | 600V, 35A, 5Ohm, 15V | 130 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
AUIRGP4066D1-E-IRIGBT, 60A I(C), 600V V(BR)CES, N |
224 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AUIRGP4066D1-IRIGBT, 60A I(C), 600V V(BR)CES, N |
205 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | Trench | 600 V | 140 A | 225 A | 2.1V @ 15V, 75A | 454 W | 4.24mJ (on), 2.17mJ (off) | Standard | 225 nC | 50ns/200ns | 400V, 75A, 10Ohm, 15V | 240 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
IRG7PSH50UDPBFIRG7PSH50 - DISCRETE IGBT WITH A |
157 | - |
|
Datasheet | - | TO-274AA | Bulk | Obsolete | Trench | 1200 V | 116 A | 150 A | 2V @ 15V, 50A | 462 W | 3.6mJ (on), 2.2mJ (off) | Standard | 440 nC | 35ns/430ns | 600V, 50A, 5Ohm, 15V | 190 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO274-3-903 |
|
|
IRG7PSH54K10DPBFIGBT, 120A I(C), 1200V V(BR)CES, |
6,629 | - |
|
Datasheet | - | TO-274AA | Bulk | Active | - | 1200 V | 120 A | 200 A | 2.4V @ 15V, 50A | 520 W | 4.8mJ (on), 2.8mJ (off) | Standard | 435 nC | 110ns/490ns | 600V, 50A, 5Ohm, 15V | 170 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247 (TO-274AA) |
|

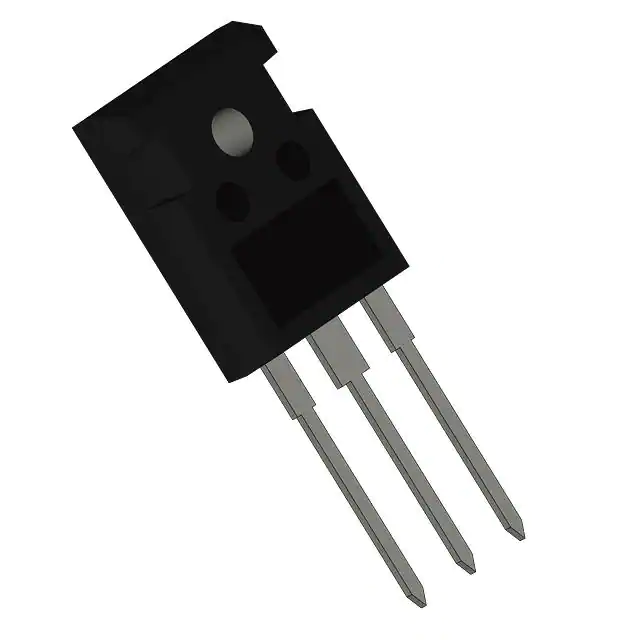

AUIRGPS4070D0IGBT TRENCH 600V 240A TO274-3 |
881 | - |
|
Datasheet | - | TO-274AA | Bulk | Active | Trench | 600 V | 240 A | 360 A | 2V @ 15V, 120A | 750 W | 5.7mJ (on), 4.2mJ (off) | Standard | 250 nC | 40ns/140ns | 400V, 120A, 4.7Ohm, 15V | 210 ns | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO274-3-903 |
|
|
IRGB4B60KD1PBFIRGB4B60K - IGBT WITH ULTRAFAST |
57,450 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | NPT | 600 V | 11 A | 22 A | 2.5V @ 15V, 4A | 63 W | 73µJ (on), 47µJ (off) | Standard | 12 nC | 22ns/100ns | 400V, 4A, 100Ohm, 15V | 93 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
Single IGBTs FAQ
Common questions about filtering, comparing and sourcing Single IGBTs components.
How can I narrow the Single IGBTs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single IGBTs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
