Single IGBTs

Browse available Single IGBTs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Power - Max	Switching Energy	Input Type	Gate Charge	Td (on/off) @ 25°C	Test Condition	Reverse Recovery Time (trr)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
IRG4IBC20FD IGBT 600V 14.3A 34W TO220FP Infineon Technologies	6,269	-	RFQ	Datasheet	-	TO-220-3 Full Pack	Tube	Obsolete	-	600 V	14.3 A	64 A	2V @ 15V, 9A	34 W	250µJ (on), 640µJ (off)	Standard	27 nC	43ns/240ns	480V, 9A, 50Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	PG-TO220-FP
IRGI4062DPBF IGBT 600V 22A 48W TO220AB Infineon Technologies	6,165	-	RFQ	Datasheet	-	TO-220-3 Full Pack	Tube	Obsolete	Trench	600 V	22 A	44 A	1.58V @ 15V, 12A	48 W	31µJ (on), 183µJ (off)	Standard	48 nC	41ns/100ns	400V, 12A, 10Ohm, 15V	56 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-220AB Full-Pak
IHW20T120FKSA1 IGBT 1200V 40A 178W TO247-3 Infineon Technologies	2,020	-	RFQ	Datasheet	TrenchStop®	TO-247-3	Tube	Obsolete	Trench Field Stop	1200 V	40 A	60 A	2.2V @ 15V, 20A	178 W	1.8mJ (on), 1.5mJ (off)	Standard	120 nC	50ns/560ns	600V, 20A, 28Ohm, 15V	140 ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	PG-TO247-3-1
IGW25T120FKSA1 IGBT NPT FS 1200V 50A TO247-3 Infineon Technologies	5,604	-	RFQ	Datasheet	TrenchStop®	TO-247-3	Tube	Obsolete	NPT, Trench Field Stop	1200 V	50 A	75 A	2.2V @ 15V, 25A	190 W	4.2mJ	Standard	155 nC	50ns/560ns	600V, 25A, 22Ohm, 15V	-	-40°C ~ 150°C (TJ)	-	-	Through Hole	PG-TO247-3-1

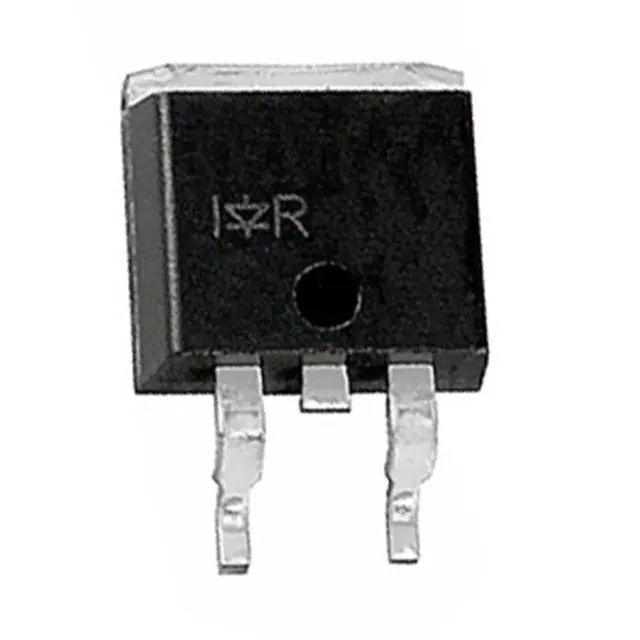

IRG4BC20KD-S IGBT 600V 16A 60W D2PAK Infineon Technologies	3,963	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	-	600 V	16 A	32 A	2.8V @ 15V, 9A	60 W	340µJ (on), 300µJ (off)	Standard	34 nC	54ns/180ns	480V, 9A, 50Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	D2PAK
IRG4BC20SD-S IGBT 600V 19A 60W D2PAK Infineon Technologies	9,000	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	-	600 V	19 A	38 A	1.6V @ 15V, 10A	60 W	320µJ (on), 2.58mJ (off)	Standard	27 nC	62ns/690ns	480V, 10A, 50Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	D2PAK
STGW50HF60SD IGBT 600V 110A 284W TO247 STMicroelectronics	7,114	-	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	-	600 V	110 A	130 A	1.45V @ 15V, 30A	284 W	250µJ (on), 4.2mJ (off)	Standard	200 nC	50ns/220ns	400V, 30A, 10Ohm, 15V	67 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247-3
IXXH30N65C4D1 IGBT 650V 62A TO247AD IXYS	6,568	-	RFQ	Datasheet	XPT™, GenX4™	TO-247-3	Tube	Obsolete	-	650 V	62 A	136 A	2.5V @ 15V, 30A	230 W	1.1mJ (on), 400µJ (off)	Standard	47 nC	20ns/140ns	400V, 30A, 15Ohm, 15V	72 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247AD (IXXH)
IXA4IF1200TC-TUB IGBT PT 1200V 9A TO268AA IXYS	9,501	-	RFQ	Datasheet	-	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Obsolete	PT	1200 V	9 A	-	2.1V @ 15V, 3A	45 W	400µJ (on), 300µJ (off)	Standard	12 nC	-	600V, 3A, 330Ohm, 15V	350 ns	-40°C ~ 150°C (TJ)	-	-	Surface Mount	TO-268AA
IRG4PC50K IGBT 600V 52A 200W TO247AC Infineon Technologies	9,801	-	RFQ	Datasheet	-	TO-247-3	Bag	Obsolete	-	600 V	52 A	104 A	2.2V @ 15V, 30A	200 W	490µJ (on), 680µJ (off)	Standard	200 nC	38ns/160ns	480V, 30A, 5Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247AC
RGW00TS65HRC11 IGBT TRNCH FIELD 650V 96A TO247N Rohm Semiconductor	2,502	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	96 A	200 A	1.9V @ 15V, 50A	254 W	-	Standard	141 nC	48ns/186ns	400V, 25A, 10Ohm, 15V	-	-40°C ~ 175°C (TJ)	-	-	Through Hole	TO-247N
FGH40N6S2 IGBT 600V 75A 290W TO247 onsemi	5,109	-	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	-	600 V	75 A	180 A	2.7V @ 15V, 20A	290 W	115µJ (on), 195µJ (off)	Standard	35 nC	8ns/35ns	390V, 20A, 3Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247-3
IXGA48N60C3-TRL IXGA48N60C3 TRL IXYS	8,038	-	RFQ	Datasheet	GenX3™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	PT	600 V	75 A	250 A	2.5V @ 15V, 30A	300 W	410µJ (on), 230µJ (off)	Standard	77 nC	19ns/60ns	400V, 30A, 3Ohm, 15V	26 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
STGWA25S120DF3 IGBT 1200V 25A TO247-3L STMicroelectronics	6,863	-	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	Trench Field Stop	1200 V	50 A	100 A	2.1V @ 15V, 25A	375 W	830µJ (on), 2.37mJ (off)	Standard	80 nC	31ns/147ns	600V, 25A, 15Ohm, 15V	265 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247-3
IXYP30N120B4 IGBT DISCRETE TO-220 IXYS	8,201	-	RFQ	Datasheet	-	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IXYP30N120A4 IGBT DISCRETE TO-220 IXYS	2,419	-	RFQ	Datasheet	XPT™, GenX4™	TO-220-3	Tube	Active	-	1200 V	106 A	184 A	1.9V @ 15V, 25A	500 W	4mJ (on), 3.4mJ (off)	Standard	57 nC	15ns/235ns	960V, 25A, 5Ohm, 15V	42 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-220 (IXYP)
IRG4IBC30UD IGBT 600V 17A 45W TO220FP Infineon Technologies	9,491	-	RFQ	Datasheet	-	TO-220-3 Full Pack	Tube	Obsolete	-	600 V	17 A	92 A	2.1V @ 15V, 12A	45 W	380µJ (on), 160µJ (off)	Standard	50 nC	40ns/91ns	480V, 12A, 23Ohm, 15V	42 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	PG-TO220-FP
FGH75T65UPD-F155 650V,75A FIELD STOP TRENCH IGBT onsemi	6,197	-	RFQ	Datasheet	-	TO-247-3	Tube	Not For New Designs	Trench Field Stop	650 V	150 A	225 A	2.3V @ 15V, 75A	375 W	3.68mJ (on), 1.6mJ (off)	Standard	68 nC	42ns/216ns	400V, 75A, 3Ohm, 15V	85 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247
STGB30H60DFB TRENCH GATE FIELD-STOP IGBT, HB STMicroelectronics	8,514	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	Trench Field Stop	600 V	60 A	120 A	2V @ 15V, 30A	260 W	383µJ (on), 293µJ (off)	Standard	149 nC	37ns/146ns	400V, 30A, 10Ohm, 15V	53 ns	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
IRG4PC40FD IGBT 600V 49A 160W TO247AC Infineon Technologies	5,981	-	RFQ	Datasheet	-	TO-247-3	Bag	Obsolete	-	600 V	49 A	200 A	1.7V @ 15V, 27A	160 W	950µJ (on), 2.01mJ (off)	Standard	100 nC	63ns/230ns	480V, 27A, 10Ohm, 15V	42 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247AC

WINSUN SOURCING SUPPORT

Need Single IGBTs Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Single IGBTs FAQ

Common questions about selecting, comparing and sourcing Single IGBTs components through Winsun (HK) Electronics.

What should I check when selecting Single IGBTs components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Single IGBTs part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Single IGBTs parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Single IGBTs components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
