Single IGBTs
Browse available Single IGBTs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXBT32N300HVIGBT 3000V 80A TO268HV |
8,252 | - |
|
Datasheet | BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 3000 V | 80 A | 280 A | 3.2V @ 15V, 32A | 400 W | - | Standard | 142 nC | 50ns/160ns | 1250V, 32A, 2Ohm, 15V | 1500 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXBT) |
|
IXBH14N300HVDISC IGBT BIMSFT VERYHIVOLT TO-2 |
5,891 | - |
|
Datasheet | BIMOSFET™ | TO-247-3 | Tube | Active | - | 3000 V | 38 A | 120 A | 2.7V @ 15V, 14A | 200 W | - | Standard | 62 nC | - | - | 1.4 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV (IXBH) |
|
IXGF20N250IGBT 2500V 23A ISOPLUSI4 |
2,701 | - |
|
Datasheet | - | i4-Pac™-5 (3 Leads) | Tube | Obsolete | - | 2500 V | 23 A | 105 A | 3.1V @ 15V, 20A | 100 W | - | Standard | 53 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
IXGF30N400IGBT 4000V 30A 160W I4-PAK |
9,830 | - |
|
Datasheet | - | i4-Pac™-5 (3 Leads) | Tube | Active | - | 4000 V | 30 A | 360 A | 5.2V @ 15V, 90A | 160 W | - | Standard | 135 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
MMIX1G120N120A3V1IGBT 1200V 220A 400W SMPD |
7,047 | - |
|
Datasheet | GenX3™ | 24-PowerSMD, 21 Leads | Tube | Obsolete | PT | 1200 V | 220 A | 700 A | 2.2V @ 15V, 100A | 400 W | 10mJ (on), 33mJ (off) | Standard | 420 nC | 40ns/490ns | 960V, 100A, 1Ohm, 15V | 700 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
|
IXGT25N250HVIGBT 2500V 60A TO268HV |
3,747 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 2500 V | 60 A | 200 A | 2.9V @ 15V, 25A | 250 W | - | Standard | 75 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXGT) |
|
|
IXBH32N300HVDISC IGBT BIMSFT-VERYHIVOLT TO-2 |
3,593 | - |
|
Datasheet | BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 3000 V | 80 A | 280 A | 3.2V @ 15V, 32A | 400 W | - | Standard | 142 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV |
|
|
IXGT25N250-T/RIGBT NPT 2500V 60A TO268HV |
4,726 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | NPT | 2500 V | 60 A | 200 A | 2.9V @ 15V, 25A | 250 W | - | Standard | 75 nC | 68ns/209ns | 1250V, 50A, 5Ohm, 15V | 233 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXGT) |
|
|
IXBF42N300IGBT 3000V ISOPLUSI4 |
2,852 | - |
|
Datasheet | BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Active | - | 3000 V | 60 A | 380 A | 3V @ 15V, 42A | 240 W | - | Standard | 200 nC | 72ns/445ns | 1500V, 42A, 20Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXBT20N360HVIGBT 3600V 70A TO268AA |
6,080 | - |
|
Datasheet | BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Not For New Designs | - | 3600 V | 70 A | 220 A | 3.4V @ 15V, 20A | 430 W | 15.5mJ (on), 4.3mJ (off) | Standard | 110 nC | 18ns/238ns | 1500V, 20A, 10Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
DF400R07W2S5FB77BPSA1LOW POWER EASY |
3,845 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXG65I3300KNIGBT PT 3300V 85A ISOPLUS264 |
6,988 | - |
|
Datasheet | X2PT™ | ISOPLUS264™ | Tube | Active | PT | 3300 V | 85 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | ISOPLUS264™ |
|
|
IXG50I4500KNIGBT PT 4500V 74A ISOPLUS264 |
5,404 | - |
|
Datasheet | X2PT™ | ISOPLUS264™ | Tube | Active | PT | 4500 V | 74 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | ISOPLUS264™ |
.jpg "IXBX55N300")
|
IXBX55N300IGBT 3000V 130A 625W PLUS247 |
4,057 | - |
|
Datasheet | BIMOSFET™ | TO-247-3 Variant | Tube | Not For New Designs | - | 3000 V | 130 A | 600 A | 3.2V @ 15V, 55A | 625 W | - | Standard | 335 nC | - | - | 1.9 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXBF55N300DISC IGBT BIMSFT-VERYHIVOLT I4-P |
2,073 | - |
|
Datasheet | BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Active | - | 3000 V | 86 A | 600 A | 3.2V @ 15V, 55A | 357 W | - | Standard | 335 nC | - | - | 1.9 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|

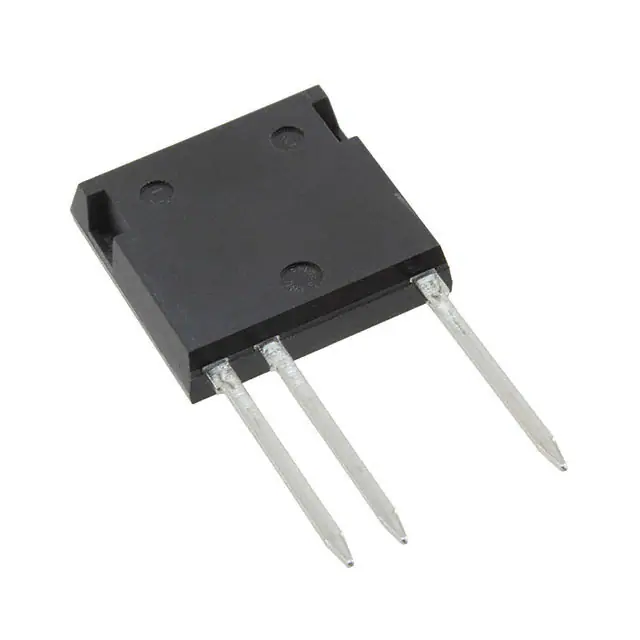

IXBF50N360IGBT 3600V 70A 290W I4-PAK |
4,195 | - |
|
Datasheet | BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Obsolete | - | 3600 V | 70 A | 420 A | 2.9V @ 15V, 50A | 290 W | - | Standard | 210 nC | 46ns/205ns | 960V, 50A, 5Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|

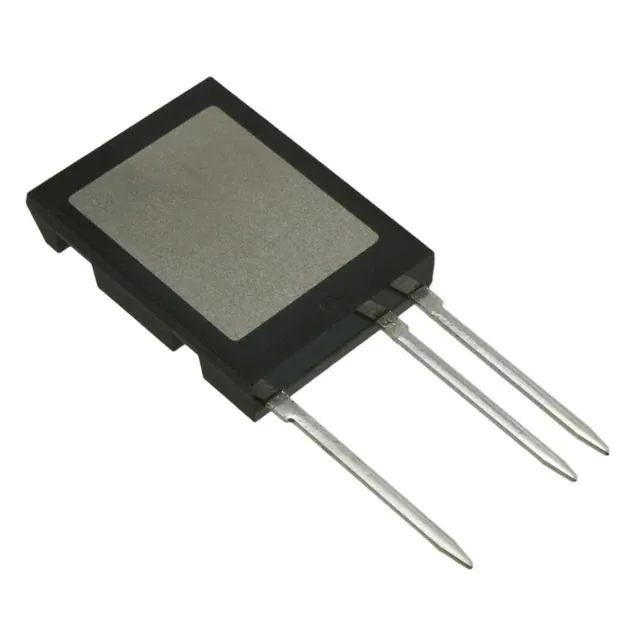

IXBL60N360IGBT 3600V 92A ISOPLUSI5 |
4,754 | - |
|
Datasheet | BIMOSFET™ | ISOPLUSi5-Pak™ | Tube | Active | - | 3600 V | 92 A | 720 A | 3.4V @ 15V, 60A | 417 W | - | Standard | 450 nC | 50ns/340ns | 960V, 60A, 4.7Ohm, 15V | 1.95 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
|
|
IXBH42N300HVDISC IGBT BIMSFT-VERYHIVOLT TO-2 |
9,189 | - |
|
Datasheet | BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 3000 V | 104 A | 400 A | 3V @ 15V, 42A | 500 W | - | Standard | 200 nC | - | - | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV |
|
|
CSM350KNDISC IGBT XPT-GENX3 TO-264(3) |
5,680 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXBL64N250IGBT 2500V 116A ISOPLUSI5 |
6,835 | - |
|
Datasheet | BIMOSFET™ | ISOPLUSi5-PAK™ | Tube | Active | - | 2500 V | 116 A | 750 A | 3V @ 15V, 64A | 500 W | - | Standard | 400 nC | - | - | 160 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
Single IGBTs FAQ
Common questions about selecting, comparing and sourcing Single IGBTs components through Winsun (HK) Electronics.
What should I check when selecting Single IGBTs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Single IGBTs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Single IGBTs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Single IGBTs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
