Single IGBTs
Use the filters and product table below to compare Single IGBTs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

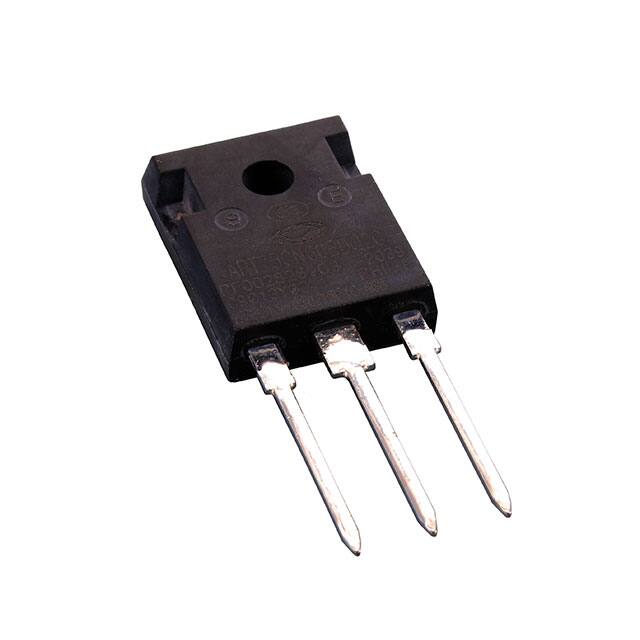

APT75GN60BDQ2GIGBT TRENCH FS 600V 155A TO247-3 |
97 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2.5mJ (on), 2.14mJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
APT35GN120L2DQ2GIGBT NPT FIELD STOP 1200V 94A |
60 | - |
|
Datasheet | - | TO-264-3, TO-264AA | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
APT80GA90BIGBT PT 900V 145A TO247 |
17 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | PT | 900 V | 145 A | 239 A | 3.1V @ 15V, 47A | 625 W | 1652µJ (on), 1389µJ (off) | Standard | 200 nC | 18ns/149ns | 600V, 47A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT45GP120B2DQ2GIGBT PT 1200V 113A |
20 | - |
|
Datasheet | POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 113 A | 170 A | 3.9V @ 15V, 45A | 625 W | 900µJ (on), 905µJ (off) | Standard | 185 nC | 18ns/100ns | 600V, 45A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
|
APT75GP120B2GIGBT PT 1200V 100A |
31 | - |
|
Datasheet | POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 100 A | 300 A | 3.9V @ 15V, 75A | 1042 W | 1620µJ (on), 2500µJ (off) | Standard | 320 nC | 20ns/163ns | 600V, 75A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
|
APT43GA90BIGBT PT 900V 78A TO247 |
81 | - |
|
Datasheet | POWER MOS 8™ | TO-247-3 | Tube | Active | PT | 900 V | 78 A | 129 A | 3.1V @ 15V, 25A | 337 W | 875µJ (on), 425µJ (off) | Standard | 116 nC | 12ns/82ns | 600V, 25A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT25GT120BRDQ2GIGBT NPT 1200V 54A TO247 |
88 | - |
|
Datasheet | Thunderbolt IGBT® | TO-247-3 | Tube | Active | NPT | 1200 V | 54 A | 75 A | 3.7V @ 15V, 25A | 347 W | 930µJ (on), 720µJ (off) | Standard | 170 nC | 14ns/150ns | 800V, 25A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT95GR65B2IGBT NPT 650V 208A TMAX |
58 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | NPT | 650 V | 208 A | 400 A | 2.4V @ 15V, 95A | 892 W | 3.12mJ (on), 2.55mJ (off) | Standard | 420 nC | 29ns/226ns | 433V, 95A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|
|
APT25GP120BGIGBT PT 1200V 69A TO247 |
18 | - |
|
Datasheet | POWER MOS 7® | TO-247-3 | Tube | Active | PT | 1200 V | 69 A | 90 A | 3.9V @ 15V, 25A | 417 W | 500µJ (on), 438µJ (off) | Standard | 110 nC | 12ns/70ns | 600V, 25A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT85GR120B2IGBT NPT 1200V 170A TMAX |
28 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | NPT | 1200 V | 170 A | 340 A | 3.2V @ 15V, 85A | 962 W | 6mJ (on), 3.8mJ (off) | Standard | 660 nC | 43ns/300ns | 600V, 85A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ |
