Single IGBTs
Browse available Single IGBTs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGD8290TIIGBT N-CH 20A D2PAK |
9,661 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XGB8206ATIIGBT N-CH 20A 350V D2PAK |
7,379 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XGS8206AUIIGBT N-CH 20A D2PAK |
5,913 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IGW50N65HSIGBT WITHOUT ANTI-PARALLEL DIODE |
5,428 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IKW03N120HIGBT WITH ANTI-PARALLEL DIODE |
7,402 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | - | 1200 V | 9.6 A | 9.9 A | 2.8V @ 15V, 3A | 62.5 W | 140µJ (on), 150µJ (off) | Standard | 22 nC | 9.2ns/281ns | 800V, 3A, 82Ohm, 15V | 42 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-21 |
|
ISL9V2040D3STVIGBT, 430V, 10A, 1.95V, 200MJ, D |
2,725 | - |
|
Datasheet | EcoSPARK® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | 430 V | 10 A | - | 1.9V @ 4V, 6A | 130 W | - | Logic | 12 nC | 610ns/3.64µs | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
APT36GA60SD15IGBT PT 600V 65A D3PAK |
5,421 | - |
|
Datasheet | POWER MOS 8® | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | PT | 600 V | 65 A | 109 A | 2.5V @ 15V, 20A | 290 W | 307µJ (on), 254µJ (off) | Standard | 102 nC | 16ns/122ns | 400V, 20A, 10Ohm, 15V | 19 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
FGD2736G3-F085VIGBT ECOSPARK1 IGN TO252 |
8,930 | - |
|
Datasheet | EcoSPARK® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | 360 V | 37.5 A | - | 1.65V @ 4.5V, 10A | 150 W | - | Standard | 18 nC | 900ns/4.4µs | 300V, 6.5A, 470Ohm, 5V | 3 µs | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
FGAF30S65AQIGBT 650V 30A TO-3PF |
2,389 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | Trench Field Stop | 650 V | 60 A | 90 A | 2.1V @ 15V, 30A | 83 W | 515µJ (on), 140µJ (off) | Standard | 58 nC | 18ns/92ns | 400V, 15A, 13Ohm, 15V | 267 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PF-3 |
|
IRG4BC40UPBFIGBT 600V 40A TO220AB |
7,153 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | - | 600 V | 40 A | 160 A | 2.1V @ 15V, 20A | 160 W | 320µJ (on), 350µJ (off) | Standard | 150 nC | 34ns/110ns | 480V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRG4BC30WPBF600V WARP 60-150 KHZ DISCRETE IG |
2,600 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | - | 600 V | 23 A | 92 A | 2.7V @ 15V, 12A | 100 W | 130µJ (on), 130µJ (off) | Standard | 51 nC | 25ns/99ns | 480V, 12A, 23Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

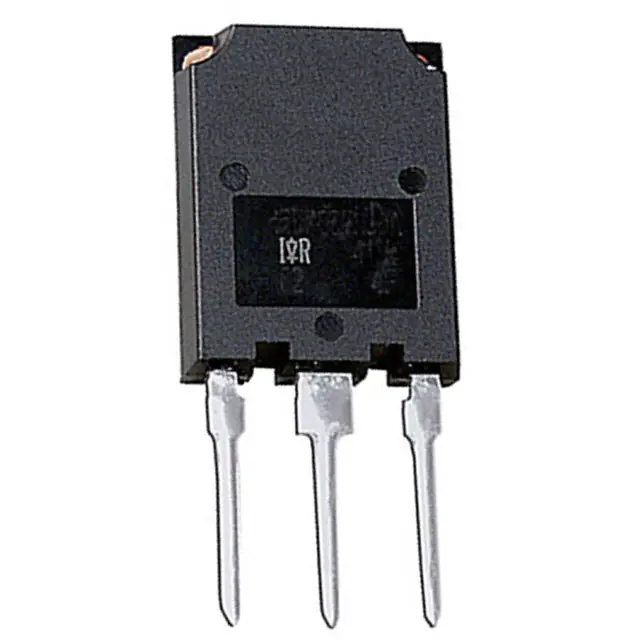

IRG4PSC71KPBFIGBT, 85A, 600V, N-CHANNEL |
5,543 | - |
|
Datasheet | - | TO-274AA | Bulk | Active | - | 600 V | 85 A | 200 A | 2.3V @ 15V, 60A | 350 W | 790µJ (on), 1.98mJ (off) | Standard | 340 nC | 34ns/54ns | 480V, 60A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRG7PH35UD1-EPIGBT W/ULTRA-LOW VF DIODE FOR IN |
9,914 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | Trench | 1200 V | 50 A | 150 A | 2.2V @ 15V, 20A | 179 W | 620µJ (off) | Standard | 130 nC | -/160ns | 600V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IRG4BC30UPBFULTRAFAST SPEED IGBT |
6,941 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | - | 600 V | 23 A | 92 A | 2.1V @ 15V, 12A | 100 W | 160µJ (on), 200µJ (off) | Standard | 50 nC | 17ns/78ns | 480V, 12A, 23Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IXGA30N60C3IGBT 600V 60A 220W TO-263AA |
2,964 | - |
|
Datasheet | GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | PT | 600 V | 60 A | 150 A | 3V @ 15V, 20A | 220 W | 270µJ (on), 90µJ (off) | Standard | 38 nC | 16ns/42ns | 300V, 20A, 5Ohm, 15V | 26 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
PCG60N60SFFIGBT PCG60N60SFF |
8,000 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCG20N60A4WIGBT PCG20N60A4W |
5,105 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCFG40T65SQFIGBT FIELD STOP 650V WAFER |
7,525 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Obsolete | Field Stop | 650 V | - | 160 A | 2.1V @ 15V, 40A | - | - | Standard | 80 nC | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Wafer |
|
|
AUXTMGPS4070D1IGBT TRENCH |
4,312 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AUXTMGPS4070D2IGBT TRENCH |
4,987 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single IGBTs FAQ
Common questions about selecting, comparing and sourcing Single IGBTs components through Winsun (HK) Electronics.
What should I check when selecting Single IGBTs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Single IGBTs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Single IGBTs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Single IGBTs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
