Single IGBTs

Use the filters and product table below to compare Single IGBTs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Power - Max	Switching Energy	Input Type	Gate Charge	Td (on/off) @ 25°C	Test Condition	Reverse Recovery Time (trr)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
GPA015A120MN-ND IGBT 1200V 30A 212W TO3PN SemiQ	5,033	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	NPT and Trench	1200 V	30 A	45 A	2.5V @ 15V, 15A	212 W	1.61mJ (on), 530µJ (off)	Standard	210 nC	25ns/166ns	600V, 15A, 10Ohm, 15V	320 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN
GPA020A135MN-FD IGBT 1350V 40A 223W TO3PN SemiQ	7,617	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	Trench Field Stop	1350 V	40 A	60 A	2.3V @ 15V, 20A	223 W	2.5mJ (on), 760µJ (off)	Standard	180 nC	25ns/175ns	600V, 20A, 10Ohm, 15V	425 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN
GPA025A120MN-ND IGBT 1200V 50A 312W TO3PN SemiQ	4,986	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	NPT and Trench	1200 V	50 A	75 A	2.5V @ 15V, 25A	312 W	4.15mJ (on), 870µJ (off)	Standard	350 nC	57ns/240ns	600V, 25A, 10Ohm, 15V	480 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN
GPA030A135MN-FDR IGBT 1350V 60A 329W TO3PN SemiQ	8,081	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	Trench Field Stop	1350 V	60 A	90 A	2.4V @ 15V, 30A	329 W	4.4mJ (on), 1.18mJ (off)	Standard	300 nC	30ns/145ns	600V, 30A, 5Ohm, 15V	450 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN

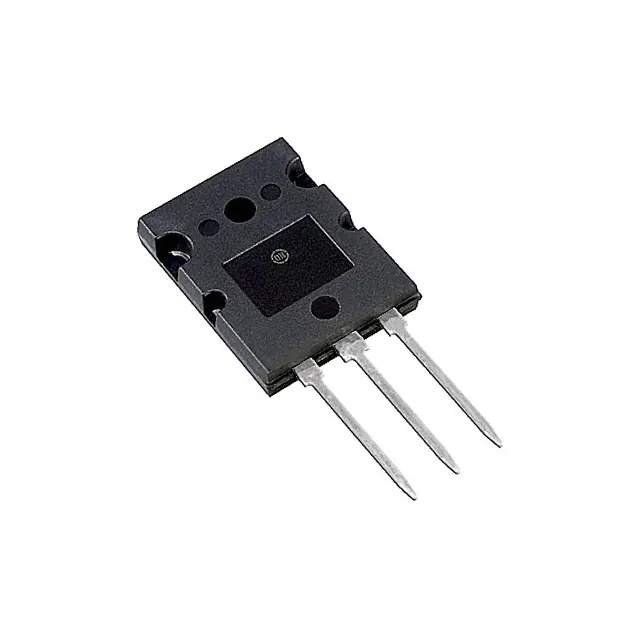

GPA040A120L-FD IGBT 1200V 80A 480W TO264 SemiQ	7,446	-	RFQ	Datasheet	-	TO-264-3, TO-264AA	Tube	Obsolete	Trench Field Stop	1200 V	80 A	120 A	2.6V @ 15V, 40A	480 W	5.3mJ (on), 1.1mJ (off)	Standard	480 nC	55ns/200ns	600V, 40A, 5Ohm, 15V	200 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-264
GPA040A120L-ND IGBT 1200V 80A 455W TO264 SemiQ	2,989	-	RFQ	Datasheet	-	TO-264-3, TO-264AA	Tube	Obsolete	NPT and Trench	1200 V	80 A	120 A	2.8V @ 15V, 40A	455 W	5.8mJ (on), 1.5mJ (off)	Standard	510 nC	41ns/200ns	600V, 40A, 5Ohm, 15V	220 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-264
GPA042A100L-ND IGBT 1000V 60A 463W TO264 SemiQ	6,607	-	RFQ	Datasheet	-	TO-264-3, TO-264AA	Tube	Obsolete	NPT and Trench	1000 V	60 A	120 A	2.9V @ 15V, 60A	463 W	13.1mJ (on), 6.3mJ (off)	Standard	405 nC	230ns/1480ns	600V, 60A, 50Ohm, 15V	465 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-264
GPA060A060MN-FD IGBT 600V 120A 347W TO3PN SemiQ	6,068	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	Trench Field Stop	600 V	120 A	180 A	2.3V @ 15V, 60A	347 W	2.66mJ (on), 1.53mJ (off)	Standard	225 nC	45ns/150ns	400V, 60A, 10Ohm, 15V	140 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN
GPI040A060MN-FD IGBT 600V 80A 231W TO3PN SemiQ	8,518	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Obsolete	Trench Field Stop	600 V	80 A	120 A	2.3V @ 15V, 40A	231 W	1.46mJ (on), 540µJ (off)	Standard	173 nC	35ns/85ns	400V, 40A, 5Ohm, 15V	60 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-3PN

WINSUN SOURCING SUPPORT

Need Help Sourcing Single IGBTs?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Single IGBTs FAQ

Common questions about filtering, comparing and sourcing Single IGBTs components.

How can I narrow the Single IGBTs selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Single IGBTs part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
