Single IGBTs
Browse available Single IGBTs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKY40N120CH3XKSA1IGBT 1200V 80A TO247-4 |
223 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | - | 1200 V | 80 A | 160 A | 2.35V @ 15V, 40A | 500 W | 2.18mJ (on), 1.3mJ (off) | Standard | 190 nC | 30ns/280ns | 600V, 40A, 12Ohm, 15V | 350 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4 |
.jpg "IXYH60N90C3")
|
IXYH60N90C3IGBT 900V 140A 750W C3 TO-247 |
334 | - |
|
Datasheet | GenX3™, XPT™ | TO-247-3 | Tube | Active | - | 900 V | 140 A | 310 A | 2.7V @ 15V, 60A | 750 W | 2.7mJ (on), 1.55mJ (off) | Standard | 107 nC | 30ns/87ns | 450V, 60A, 3Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
RGW00TS65EHRC11IGBT TRNCH FIELD 650V 96A TO247N |
418 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 96 A | 200 A | 1.9V @ 15V, 50A | 254 W | - | Standard | 141 nC | 50ns/183ns | 400V, 25A, 10Ohm, 15V | 90 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247N |
|
RGS50TSX2HRC11IGBT TRENCH FLD 1200V 50A TO247N |
446 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 50 A | 75 A | 2.1V @ 15V, 25A | 395 W | 1.4mJ (on), 1.65mJ (off) | Standard | 67 nC | 37ns/140ns | 600V, 25A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247N |
|
RGSX5TS65HRC11IGBT TRENCH FLD 650V 114A TO247N |
393 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 114 A | 225 A | 2.15V @ 15V, 75A | 404 W | 3.32mJ (on), 1.9mJ (off) | Standard | 79 nC | 43ns/113ns | 400V, 75A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247N |
|
|
IKQ50N120CH7XKSA1IGBT TRENCH FS 1200V 71A TO247-3 |
186 | - |
|
Datasheet | TRENCHSTOP™ | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 71 A | 200 A | 2.15V @ 15V, 50A | 398 W | 2.61mJ (on), 1.1mJ (off) | Standard | 366 nC | 40ns/323ns | - | 133 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3-U01 |
|
AIKQ100N60CTXKSA1IC DISCRETE 600V TO247-3 |
234 | - |
|
Datasheet | TrenchStop™ | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 600 V | 160 A | 400 A | 2V @ 15V, 100A | 714 W | 3.1mJ (on), 2.5mJ (off) | Standard | 610 nC | 30ns/290ns | 400V, 100A, 3.6Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-46 |
|
|
IKY50N120CH7XKSA1IGBT TRENCH FS 1200V 75A TO247-4 |
203 | - |
|
Datasheet | TRENCHSTOP™ | TO-247-4 | Tube | Active | Trench Field Stop | 1200 V | 75 A | 200 A | 2.15V @ 15V, 50A | 398 W | 1.09mJ (on), 1.33mJ (off) | Standard | 372 nC | 35ns/331ns | - | 86 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4-U10 |
|
STGYA120M65DF2AGIGBT |
1,200 | - |
|
Datasheet | M | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 160 A | 360 A | 2.15V @ 15V, 120A | 625 W | 1.8mJ (on), 4.41mJ (off) | Standard | 420 nC | 66ns/185ns | 400V, 120A, 4.7Ohm, 15V | 202 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | MAX247™ |
|
|
IXBH10N170IGBT 1700V 20A 140W TO247AD |
262 | - |
|
Datasheet | BIMOSFET™ | TO-247-3 | Tube | Active | - | 1700 V | 20 A | 40 A | 3.8V @ 15V, 10A | 140 W | 6mJ (off) | Standard | 30 nC | 35ns/500ns | 1360V, 10A, 56Ohm, 15V | 360 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IKFW60N65ES5XKSA1IGBT TRENCH FS 650V 77A HSIP247 |
235 | - |
|
Datasheet | Trenchstop™ 5 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 77 A | 200 A | 1.7V @ 15V, 50A | 138 W | 1.23mJ (on), 550µJ (off) | Standard | 120 nC | 20ns/127ns | 400V, 50A, 8.2Ohm, 15V | 77 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-HSIP247-3-2 |
|
AFGY120T65SPDIGBT - 650 V 120 A FS3 FOR EV TR |
283 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 160 A | 360 A | 2.05V @ 15V, 120A | 714 W | 6.6mJ (on), 3.8mJ (off) | Standard | 125 nC | 40ns/80ns | 400V, 120A, 5Ohm, 15V | 107 ns | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
IXGP30N120B3IGBT PT 1200V 60A TO220-3 |
150 | - |
|
Datasheet | GenX3™ | TO-220-3 | Tube | Active | PT | 1200 V | 60 A | 150 A | 3.5V @ 15V, 30A | 300 W | 3.47mJ (on), 2.16mJ (off) | Standard | 87 nC | 16ns/127ns | 960V, 30A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|

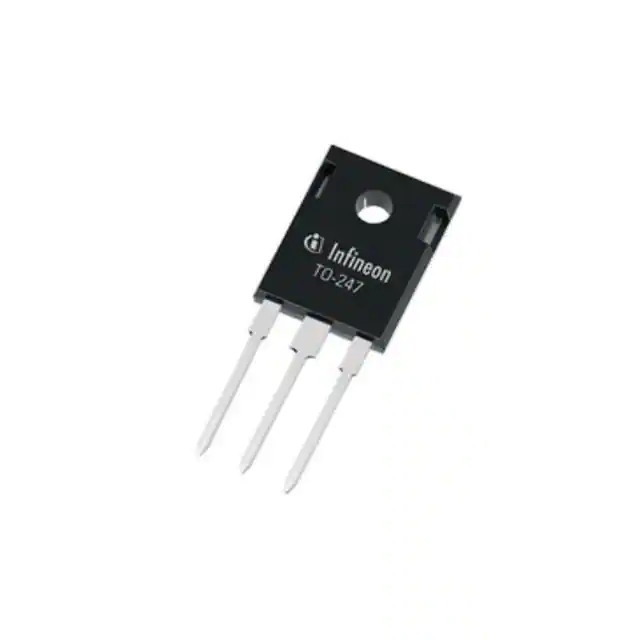

AIKW50N65RF5XKSA1SIC_DISCRETE |
190 | - |
|
Datasheet | Trenchstop™ 5 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 150 A | 2.1V @ 15V, 50A | 250 W | 310µJ (on), 120µJ (off) | Standard | 109 nC | 20ns/156ns | 400V, 25A, 12Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
FGH40T120SMD-F155IGBT TRENCH FS 1200V 80A TO247-3 |
454 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 80 A | 160 A | 2.4V @ 15V, 40A | 555 W | 2.7mJ (on), 1.1mJ (off) | Standard | 370 nC | 40ns/475ns | 600V, 40A, 10Ohm, 15V | 65 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
RGT40TS65DGC13IGBT TRENCH FS 650V 40A TO247G |
600 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 40 A | 60 A | 2.1V @ 15V, 20A | 144 W | - | Standard | 40 nC | 22ns/75ns | 400V, 20A, 10Ohm, 15V | 58 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247G |
|
|
FGH75T65UPD-F085IGBT 650V 150A 375W TO-247AB |
305 | - |
|
Datasheet | - | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 650 V | 150 A | 225 A | 2.3V @ 15V, 75A | 375 W | 2.85mJ (on), 1.2mJ (off) | Standard | 578 nC | 32ns/166ns | 400V, 75A, 3Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
RGTVX6TS65DGC11IGBT TRENCH FLD 650V 144A TO247N |
450 | - |
|
Datasheet | - | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 650 V | 144 A | 320 A | 1.9V @ 15V, 80A | 404 W | 2.65mJ (on), 1.8mJ (off) | Standard | 171 nC | 45ns/201ns | 400V, 80A, 10Ohm, 15V | 109 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247N |
|
|
AFGHL50T65SQDCIGBT FIELD STOP 650V 100A TO247 |
380 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Field Stop | 650 V | 100 A | 200 A | 2.1V @ 15V, 50A | 238 W | 131µJ (on), 96µJ (off) | Standard | 94 nC | 17.6ns/94.4ns | 400V, 12.5A, 4.7Ohm, 15V | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
IKW50N65SS5XKSA1IGBT TRENCH FS 650V 80A TO247-3 |
116 | - |
|
Datasheet | TrenchStop™ 5 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 200 A | 1.7V @ 15V, 50A | 274 W | 320µJ (on), 550µJ (off) | Standard | 110 nC | 20ns/140ns | 400V, 50A, 9Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
