Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG529AK/883BIC SWITCH SP4T X 2 400OHM 18CDIP |
1,368 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
DG202AK/883BIC SW SPST-NOX4 175OHM 16CDIP |
2,219 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
DG302AAK/883BIC SWITCH DPST-NOX2 50OHM 14CDIP |
1,992 | - |
|
Datasheet | - | Tube | Active | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
|
DG309AK/883BIC SW SPST-NCX4 100OHM 16CDIP |
2,302 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | - | 5V ~ 30V | ±5V ~ 20V | 250ns, 150ns | - | -10pC | 11pF, 8pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|

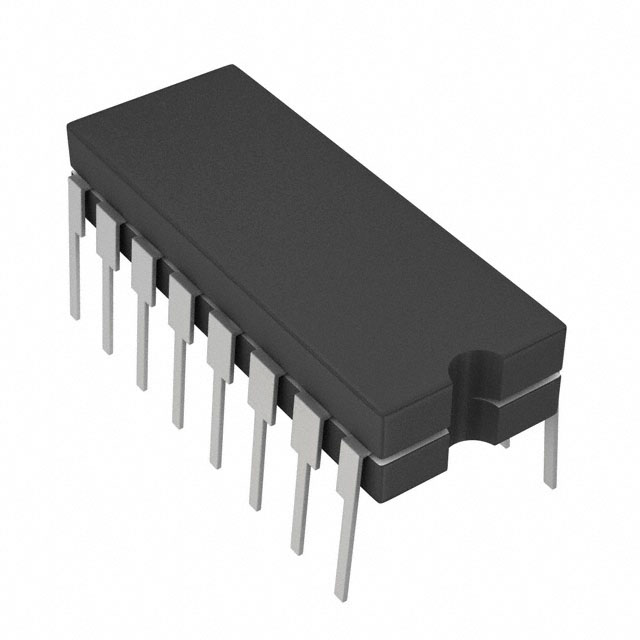

DG408AK/883BIC MUX 8:1 100OHM 16CERDIP |
4,536 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
DG419AK/883BIC SWITCH SPDT X 1 30OHM 8CERDIP |
2,773 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 1 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
DG442AK/883BIC SWITCH SPST-NOX4 85OHM 16CDIP |
3,256 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
DG528AK/883BIC MUX 8:1 400OHM 18CDIP |
2,965 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
HI1-0201HS/883BIC SWITCH SPST-NCX4 50OHM 16CDIP |
4,055 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
IH5049MJE/883BIC SWITCH SPST-NOX2 60OHM 16CDIP |
2,380 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 8Ohm | - | ±4.5V ~ 20V | 400ns, 200ns (Typ) | - | 10pC | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
