Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

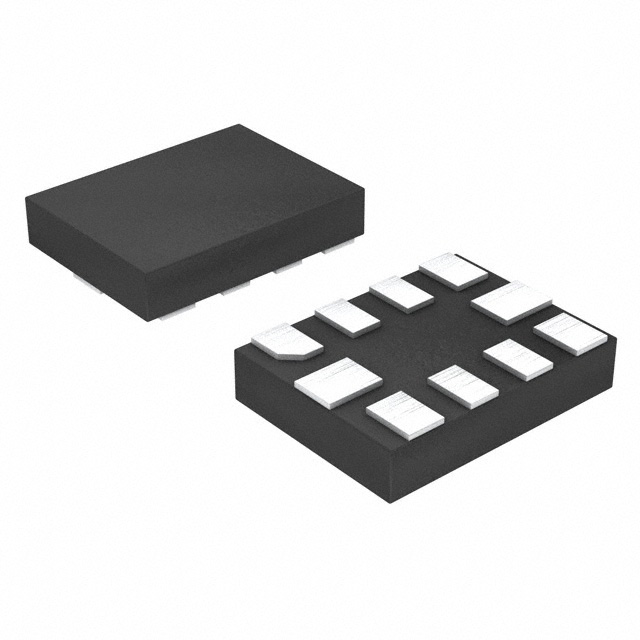

NX3L2267GM,115IC SWITCH SPDTX2 750MOHM 10XQFN |
20,733 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 37pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
NX3L2T66GT,115IC SW SPST-NOX2 750MOHM 8XSON |
18,297 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
NX3DV3899GU,115IC SWITCH DPDT X 2 3.3OHM 16XQFN |
2,852 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 3.3Ohm | 700mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 200MHz | 4pC | 8pF | 5nA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-XQFN (1.8x2.6) |
|
NX3L4051PW,118IC MUX 8:1 750MOHM 16TSSOP |
239 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
NX3L4051PW-Q100JIC MUX 8:1 750MOHM 16TSSOP |
8,780 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
NX3L1T3157GMZIC SWITCH SPDT X 1 900MOHM 6XSON |
28,154 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 900mOhm | 100mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
NX3L2467PW,118IC SWITCH DPDTX2 750MOHM 16TSSOP |
7,995 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
NX3L4053PW,118IC SWITCH SPDTX3 800MOHM 16TSSOP |
5,252 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 800mOhm | 120mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
NX3L4357GM,115IC SWITCH SP3TX1 750MOHM 10XQFN |
1,017 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
NX3L4051HRZIC MUX 8:1 900MOHM 16HXQFN |
2,154 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 900mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HXQFN (3x3) |
