Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL84684IUZIC SWITCH SPDTX2 500MOHM 10MSOP |
4,643 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 55mOhm | 1.65V ~ 3.6V | - | 50ns, 27ns | - | 94pC | 65pF | 4nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|

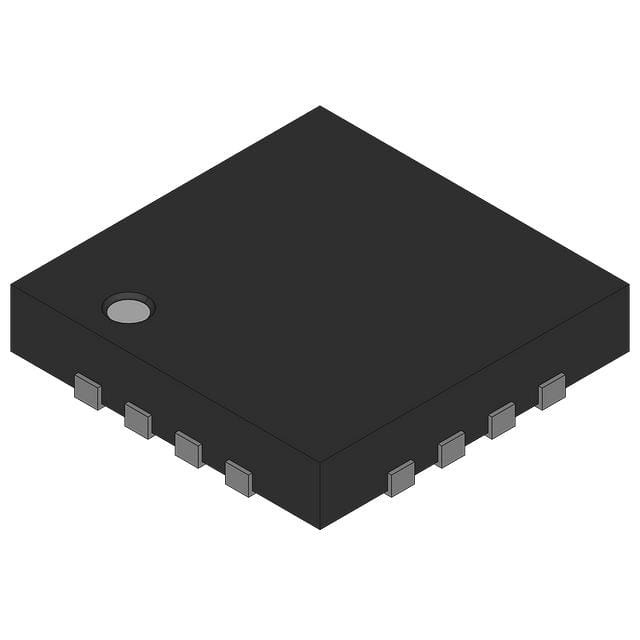

ISL84782IRZIC SWITCH SP4TX2 750MOHM 16TQFN |
1,487 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -65pC | 62pF, 218pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ISL8484IRZIC SWITCH SPDTX2 500MOHM 10TDFN |
4,506 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 4.5V | - | 40ns, 20ns | - | 170pC | 62pF | 100nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
ISL43L420IRZIC SWITCH SPDT X 4 450OHM 16QFN |
1,072 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 4 | 450Ohm | 50mOhm | 1.1V ~ 4.5V | - | 13ns, 10ns | - | -120pC | 106pF | 50nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
ISL43L841IRZIC SWITCH SP4TX2 480MOHM 16TQFN |
2,839 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 480mOhm (Typ) | 120mOhm | 1.65V ~ 4.5V | - | 34ns, 24ns | - | -65pC | 62pF, 218pF | 50nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
DG211CJIC SWITCH SPST-NCX4 175OHM 16DIP |
2,297 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG211CYIC SW SPST-NCX4 175OHM 16SOIC |
4,553 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG211CYTIC SW SPST-NCX4 175OHM 16SOIC |
2,874 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG401DYIC SWITCH SPST-NOX2 45OHM 16SOIC |
3,710 | - |
|
Datasheet | - | Bag | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG401DY-TIC SWITCH SPST-NOX2 45OHM 16SOIC |
4,930 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
