Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS4A205QGIC SWITCH SPDT X 4 17OHM 16QSOP |
166 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 4 | 17Ohm | - | 5V | - | 6ns, 6ns | 830MHz | 1.5pC | 5.6pF, 7.4pF | 2nA | -100dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
ISL84781IVZIC MUX 8:1 750MOHM 16TSSOP |
943 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
HI3-0201-5ZIC SWITCH SPST-NCX4 80OHM 16DIP |
124 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 80Ohm | - | - | ±15V | 240ns, 500ns (Typ) | - | - | 5.5pF, 5.5pF | 500nA | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-PDIP |
|
HI9P0201-5ZIC SWITCH SPST-NCX4 80OHM 16SOIC |
1,916 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 80Ohm | - | - | ±15V | 185ns, 220ns (Typ) | - | - | 5.5pF, 5.5pF | 50nA | - | 0°C ~ 75°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
HI9P0549-9ZIC SWITCH SP4TX2 1.8KOHM 16SOIC |
151 | - |
|
Datasheet | - | Bulk | Active | SP4T | 4:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 12pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ISL84581IVZIC MUX 8:1 60OHM 16TSSOP |
1,869 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 60Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 50ns, 35ns | - | 0.3pC | 3pF, 21pF | 20pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG444DVZIC SW SPST-NCX4 85OHM 16TSSOP |
1,147 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 140ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL54233IRTZIC SWITCH SP3T X 2 15OHM 12TQFN |
828 | - |
|
Datasheet | - | Tube | Active | SP3T | 3:1 | 2 | 15Ohm | 70mOhm | 2.7V ~ 4.6V | - | - | 1.6GHz | - | 3pF | 15nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TQFN (3x3) |
|
ISL54059IRUZ-TIC SWITCH SPDTX2 520MOHM 10UTQFN |
1,800 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 520mOhm (Typ) | 10mOhm | 1.8V ~ 6.5V | - | 35ns, 16ns | 60MHz | 170pC | 36pF | 8.13nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|

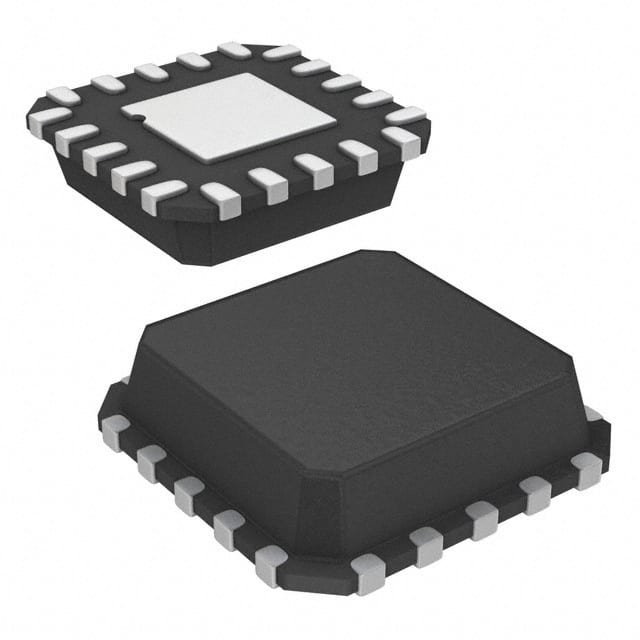

ISL84467IRTZIC SWITCH SPDTX4 400MOHM 16TQFN |
7,418 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 4 | 400mOhm (Typ) | 50mOhm | 1.65V ~ 4.5V | - | 33ns, 16ns | - | 248pC | 38pF | 70nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
