Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1745G-T-Z MSOP10 LF T&RIC SWITCH SPDT X 2 4OHM 10MSOP |
3,412 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 17ns, 6ns | - | 7pC | 20pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
AS1751S-TIC SW SPST-NOX4 900MOHM 14TSSOP |
2,976 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
AS1746-BTDRIC SWITCH SPDTX2 550MOHM 10TDFN |
2,486 | - |
|
Datasheet | - | Tray | Active | SPDT | 2:1 | 2 | 550mOhm | 20mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
AS1745G-Z MSOP10 LF TUBIC SWITCH SPDT X 2 4OHM 10MSOP |
1,108 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 17ns, 6ns | - | 7pC | 20pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|

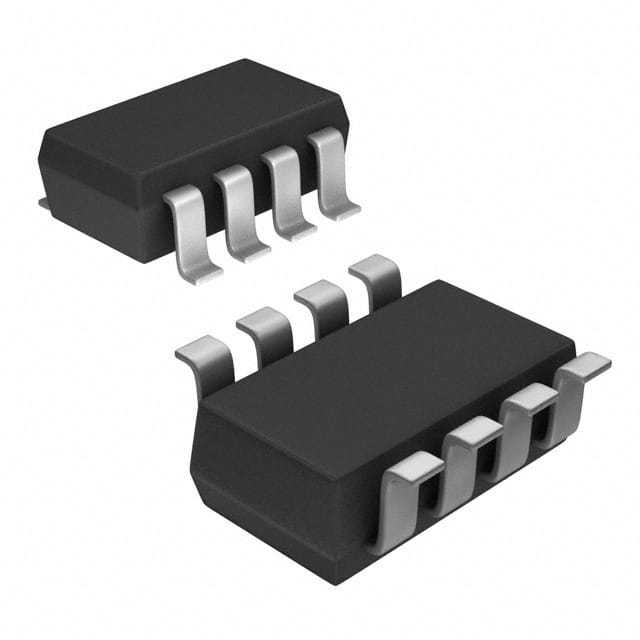

AS1741H-TIC SW SPST-NOX2 800MOHM SOT23-8 |
3,058 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
AS1747-BTDT-1KIC SWITCH SPDTX2 850MOHM 10TDFN |
1,357 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 850mOhm | 30mOhm | 1.8V ~ 5.5V | - | 400ns, 200ns | 31MHz | 2pC | 63pF | 10nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
AS1746-BTDTIC SWITCH SPDTX2 550MOHM 10TDFN |
4,296 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 20mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
AS1751V-TIC SW SPST-NOX4 900MOHM 16TQFN |
3,438 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

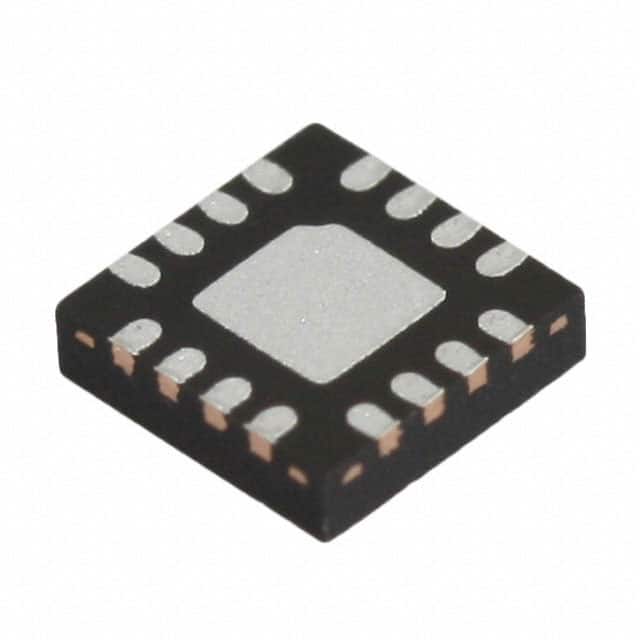

AS1753V-TIC SW SPST-NO/NCX4 900MOHM 16QFN |
4,877 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

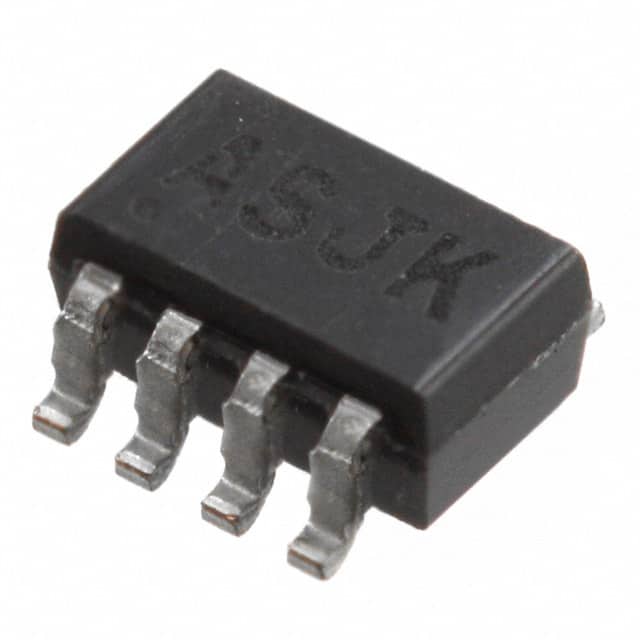

AS1742H-TIC SW SPST-NCX2 800MOHM SOT23-8 |
2,209 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
