Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

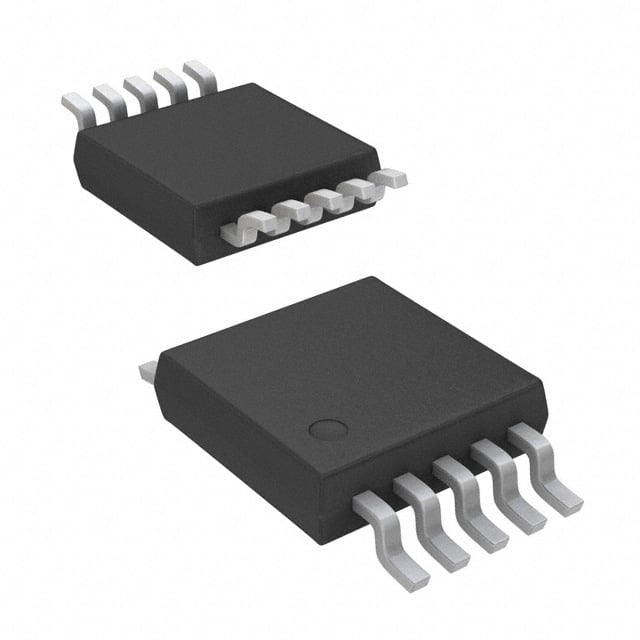

ADG621C-PT7IC SWITCH SPST-NO X 2 5.5OHM DIE |
2,558 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5.5Ohm | 250mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 70ns | 230MHz | 110pC | 20pF, 20pF | 250pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | Die |
|
V62/11612-01XBIC MUX 8:1 4.7OHM 16TSSOP |
2,495 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.7Ohm | 780mOhm (Max) | - | - | 120ns, 120ns | - | 50pC | 14pF, 80pF | 200pA | -70dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
V62/12617-01XBIC SWITCH SPSTX4 190OHM 16TSSOP |
3,798 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 190Ohm | 2.5Ohm (Typ) | - | - | 80ns, 100ns | - | 0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
ADG426BRS-REEL7IC MUX 16:1 80OHM 28SSOP |
4,047 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 50pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
ADG786WBCPZ-REEL7IC SWITCH SPDTX3 4.5OHM 20LFCSP |
1,933 | - |
|
Datasheet | ADI0012 | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10.5ns | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Automotive | - | Surface Mount | 20-LFCSP (4x4) |
|
ADG506AKPZ-REELIC MUX 16:1 300OHM 28PLCC |
3,965 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKP-REELIC MUX 16:1 300OHM 28PLCC |
3,421 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKPZ-RLIC MUX 16:1 300OHM 28PLCC |
4,212 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
.jpg "ADG731BCP_REEL7")
|
ADG731BCP_REEL7IC MUX 32:1 5.5OHM 48LFCSP |
1,797 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 32:1 | 1 | 5.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | - | 18MHz | 1pC | 13pF, 260pF | 250pA | -72dB @ 1MHz | -40°C ~ 80°C (TA) | - | - | Surface Mount | 48-LFCSP (7x7) |
|
ADG787BCB-REELIC SWITCH SPDT X 2 3OHM 10WLCSP |
3,351 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
