Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS21P2TLRQIC SWITCH SPDT X 2 500MOHM 10QFN |
4,340 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 65ns, 40ns | 55MHz | 49pC | 5pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
STG3680QTRIC SWITCH SPDT X 2 800MOHM 16QFN |
4,793 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.65V ~ 4.3V | - | 50ns, 30ns | 50MHz | 35pC | 5pF | 10nA | -54dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
M74HC4851YTTRIC MUX 8:1 195OHM 16TSSOP |
1,973 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|

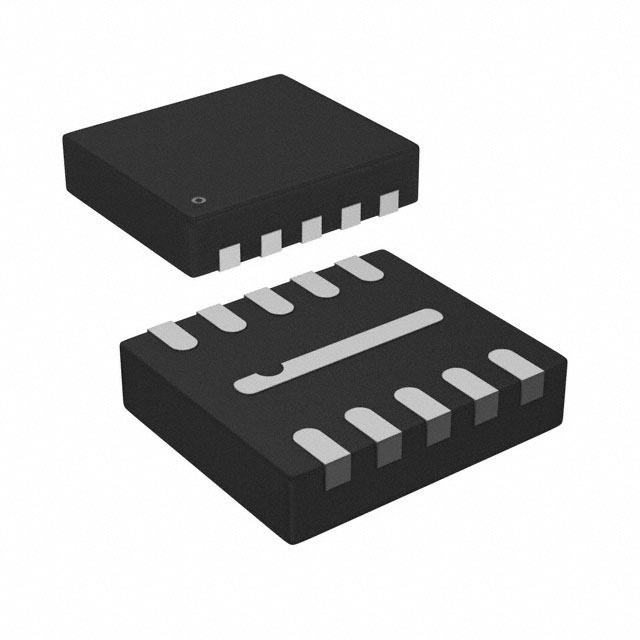

STG3684ADTRIC SWITCH SPDT X 2 500MOHM 10DFN |
1,352 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 55MHz | 49pC | 5pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (2.3x2) |

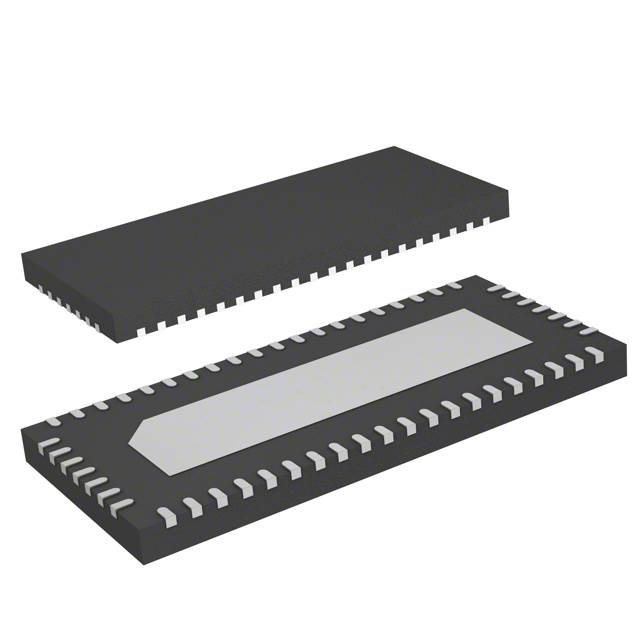

.jpg "ST3DV520QTR")
|
ST3DV520QTRIC SWITCH SPDT X 4 7.5OHM 56QFN |
4,064 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 7.5Ohm | 500mOhm | 3V ~ 3.6V | - | 9ns, 8.5ns | 450MHz | - | 6pF | 5µA | -45dB @ 250MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 56-QFN (11x5) |
|
STG4160BJRIC SW SPDTX1 500MOHM 8FLIPCHIP |
4,978 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 500mOhm | 10mOhm | 1.65V ~ 4.8V | - | 38ns, 38ns | 50MHz | 162pC | 30pF | 30nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-FlipChip |
|
|
STG5223QTRIC SWITCH SPDT X 2 500MOHM 10QFN |
4,885 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 55MHz | 49pC | 40pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
STG1218IQTIC SWITCH SPDTX4 14OHM 20QFN |
3,907 | - |
|
Datasheet | - | Bulk | Active | SPDT - Open/Closed | 2:1 | 4 | 14Ohm | 300mOhm | 2.7V ~ 5.5V, 2.7V ~ 15.5V | - | 320ns, 195ns | 200MHz | 48pC | 25pF | 1.5µA | -66dB @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-QFN (4x4) |
|
M74HCT4053RM13TRIC SWITCH SPDT X 3 120OHM 16SO |
1,194 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 120Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 6V | 34ns, 31ns | 190MHz | - | 0.75pF, 5pF | 100nA | -50dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
STG6684QTRIC SWITCH SPDT X 2 550MOHM 10QFN |
3,332 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 10mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 65MHz | 49pC | 85pF | 100nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
