Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUX36S08IRUMRIC MUX 8:1 170OHM 16WQFN |
1,641 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-WQFN (4x4) |
|
MUX507IPWRIC MUX DUAL 8:1 200OHM 28TSSOP |
8,576 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 2 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 6.4pF | 1nA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-TSSOP |
|
MUX506IDWRIC MUX 16:1 200OHM 28SOIC |
860 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.67pC | 3pF, 12.2pF | 1nA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-SOIC |
|

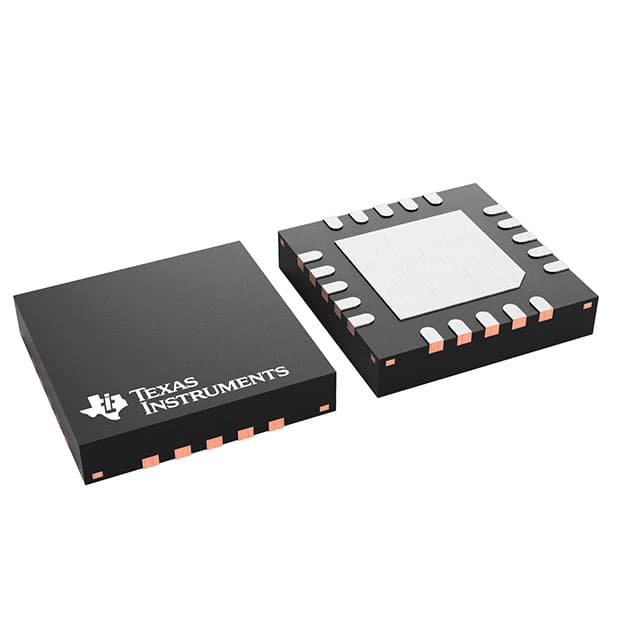

TMUX6234RRQRIC SW SPST-NO/NCX4 6.2OHM 20WQFN |
4,875 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 95ns, 85ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
|
|
TMUX8211PWRIC SWITCH SPST-NCX4 7OHM 16TSSOP |
2,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 7Ohm | 200mOhm (Typ) | 10V ~ 100V | - | 4µs, 100ns (Typ) | 420MHz | -1300pC | 12pF, 12pF | 10pA (Typ) | -110dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6234PWRIC SW SPDT-NO/NC 6.2OHM 20TSSOP |
1,725 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 150ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
TMUX7219MDGKRIC SWITCH SPDT X 1 2.8OHM 8VSSOP |
1,728 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.8Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 168ns, 180ns | 40MHz | -16pC | 34pF, 48pF | 5nA | -106dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MUX36D04IPWIC MUX DUAL 4:1 170OHM 16TSSOP |
134 | - |
|
Datasheet | - | Tube | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 400pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX8109PWRIC SWITCH SP4T X 2 48OHM 16TSSOP |
3,452 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 48Ohm | 650mOhm | 10V ~ 100V | ±10V ~ 50V | 3µs, 650ns (Typ) | 380MHz | -150pC | 3pF, 10pF | 20pA (Typ) | -110dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX7436FPWRIC SW SPDT-NO/NCX2 11OHM 16TSSOP |
255 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 11Ohm | 60mOhm (Typ) | 8V ~ 44V | - | 520ns, 210ns | 215MHz | -300pC | 14pF, 28pF | 700pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
