Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HCT4051MG4IC MUX 8:1 130OHM 16SOIC |
3,248 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 180MHz | - | 5pF, 25pF | 400nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
CD74HC4066ME4IC SWITCH SPST-NOX4 70OHM 14SOIC |
3,082 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 500mOhm | 2V ~ 10V | - | - | 200MHz | - | 5pF | 100nA | -72dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
CD74HC4066MG4IC SWITCH SPST-NOX4 70OHM 14SOIC |
4,666 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 500mOhm | 2V ~ 10V | - | - | 200MHz | - | 5pF | 100nA | -72dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
CD74HCT4051MTG4IC MUX 8:1 130OHM 16SOIC |
1,086 | - |
|
Datasheet | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | 8:1 | 1 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 180MHz | - | 5pF, 25pF | 400nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|

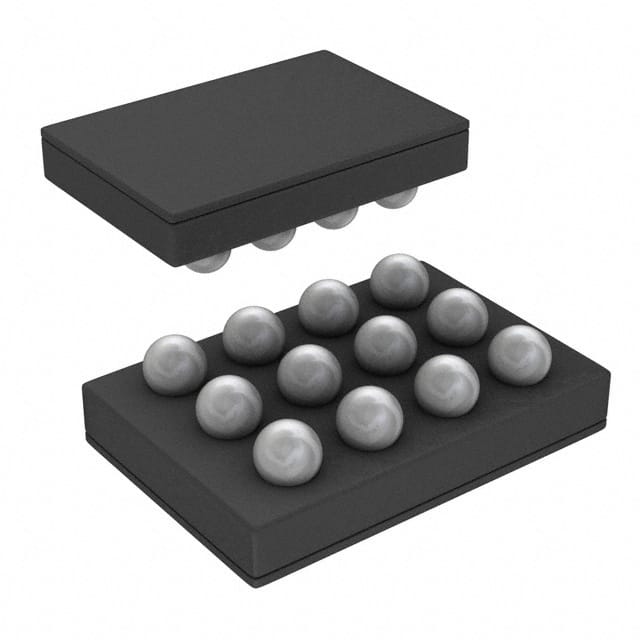

LMS4684ITLX/NOPBIC SWITCH SPDTX2 800MOHM 12USMD |
2,431 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-uSMD (1.59x2.33) |
|
|
CD4053BMG4IC SWITCH SPDT X 3 240OHM 16SOIC |
3,899 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 3 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 30MHz | - | 0.2pF, 9pF | 100nA | -40dB @ 6MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS5A21366DCURG4IC SWITCH SPST-NOX2 1OHM 8VSSOP |
3,204 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 1Ohm | 40mOhm | 1.65V ~ 5.5V | - | 72ns, 318ns | 260MHz | 1.3pC | 19pF, 17pF | 10nA | -98dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
CD4052BMG4IC SWITCH SP4T X 2 240OHM 16SOIC |
2,622 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 25MHz | - | 0.2pF, 18pF | 100nA | -40dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
TS5A23166DCURG4IC SW SPST-NOX2 900MOHM 8VSSOP |
3,690 | - |
|
Datasheet | - | Tape & Reel (TR) | Discontinued at Digi-Key | SPST - NO | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
CD74HC4316ME4IC SW SPST-NOX4 170OHM 16SOIC |
1,522 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 170Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 5V | 37ns, 37ns | 200MHz | - | 5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
