Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMS4684LDIC SWITCH SPDTX2 800MOHM 10WSON |
4,341 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WSON (3x4) |
|
TMUXHS4412IRUARIC SW DPST, SPDTX4 8OHM 42WQFN |
4,919 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPST, SPDT | 1:2, 2:1 | 4 | 8Ohm | - | 1.71V ~ 1.91V, 3V ~ 3.6V | - | 130ns, 100ns | 13GHz | - | - | - | -54dB @ 10GHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
MUX508IPWIC MUX 8:1 170OHM 16TSSOP |
2,077 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 1nA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MUX508IDIC MUX 8:1 170OHM 16SOIC |
1,748 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 1nA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
CD74HC4051MDREPIC MUX 8:1 130OHM 16SOIC |
4,808 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 130Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 5V | - | 180MHz | - | 25pF | 400nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|

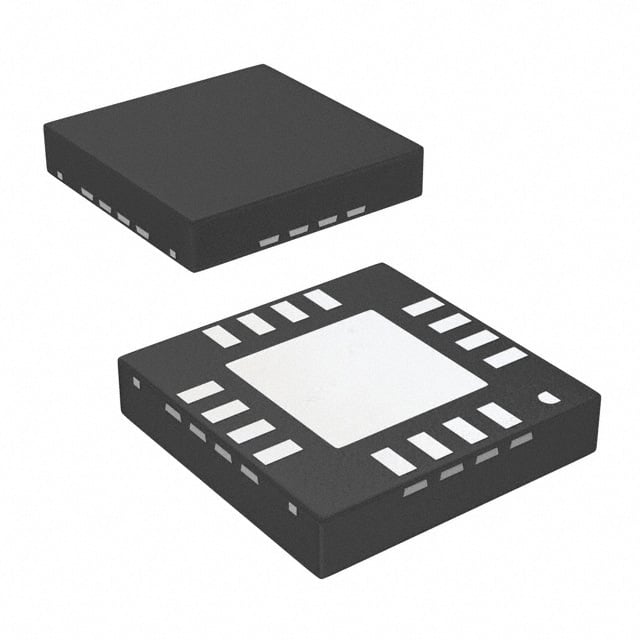

TMUX7308FRRPRIC SWITCH SP8T X 1 250OHM 16WQFN |
4,493 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 250Ohm | 2.5Ohm | 8V ~ 44V | ±5V ~ 22V | 390ns, 450ns | 130MHz | -16pC | 4pF, 31pF | 1nA | -95dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
TMUX7309FRRPRIC SWITCH 4PST X 2 250OHM 16WQFN |
1,726 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 4PST | 4:1 | 2 | 250Ohm | 2.5Ohm | 8V ~ 44V | ±5V ~ 22V | 390ns, 450ns | 255MHz | -16pC | 4pF, 16pF | 1nA | -103dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
TMUX6211RUMRIC SW SPST-NOX4 3.1OHM 16WQFN |
4,977 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
TMUX6212RUMRIC SW SPST-NCX4 3.1OHM 16WQFN |
4,273 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
TMUX6213RUMRIC SW SPST-NO/NCX4 3.1OHM 16WQFN |
1,435 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
