Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG307AAKIC SWITCH SPDTX2 50OHM 14CERDIP |
1,177 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG307AAK-E3IC SWITCH SPDTX2 50OHM 14CERDIP |
4,517 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|

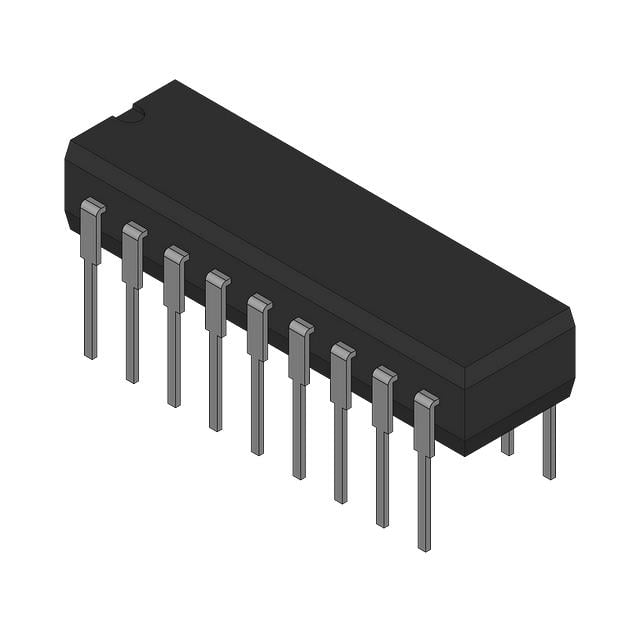

DG528AKIC MUX 8:1 400OHM 18CERDIP |
2,055 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | - | ±15V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CERDIP |
|
DG528BKIC MUX 8:1 450OHM 18CERDIP |
3,724 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 450Ohm | 27Ohm | - | ±15V | - | - | 4pC | 5pF, 25pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-CERDIP |
|
|
DG306AAK/883IC SW DPST-NOX2 50OHM 14CERDIP |
3,456 | - |
|
Datasheet | - | Tube | Obsolete | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG271AKIC SW SPST-NCX4 50OHM 16CERDIP |
1,109 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | - | ±15V | 65ns, 65ns | - | -5pC | 8pF, 8pF | 1nA | -100dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
DG301AAAIC SWITCH SPDTX1 50OHM TO100-10 |
2,177 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
DG301AAKIC SWITCH SPDTX1 50OHM 14CERDIP |
2,557 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
DG301ABKIC SWITCH SPDTX1 50OHM 14CERDIP |
1,257 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG201AAKIC SW SPST-NCX4 175OHM 16CERDIP |
1,612 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
