Analog Switches, Multiplexers, Demultiplexers
Browse available Analog Switches, Multiplexers, Demultiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23166DCURIC SW SPST-NOX2 900MOHM 8VSSOP |
12,264 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS3A5018PWRIC SWITCH SPDT X 4 10OHM 16TSSOP |
4,685 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 10Ohm | 300mOhm | 1.65V ~ 3.6V | - | 8ns, 6.5ns | 300MHz | 2pC | 4.5pF, 9pF | 100nA | -48dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS5A23157RSERIC SWITCH SPDT X 2 10OHM 10UQFN |
8,447 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
TS5A3159QDBVRQ1IC SWITCH SPDTX1 1.3OHM SOT23-6 |
1,704 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.3Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 6nA | -65dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-6 |
|
DG2788ADN-T1-GE4IC SW DPDTX2 500MOHM 16MINIQFN |
18,814 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 50µs, 1µs | 338MHz | -245pC | - | 100nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
74HCT4051DIC MUX 8:1 120OHM 16SOIC |
5,037 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 39ns, 32ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS3A5018RGYRIC SWITCH SPDT X 4 10OHM 16VQFN |
6,478 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 10Ohm | 300mOhm | 1.65V ~ 3.6V | - | 8ns, 6.5ns | 300MHz | 2pC | 4.5pF, 9pF | 100nA | -48dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
CD4051BEIC MUX 8:1 240OHM 16DIP |
7,334 | - |
|
Datasheet | - | Bulk | Active | - | 8:1 | 1 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 20MHz | - | 0.2pF, 30pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
NX3L2267GM,115IC SWITCH SPDTX2 750MOHM 10XQFN |
20,733 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 37pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
74LVC4066PW,118IC SW SPST-NOX4 10OHM 14TSSOP |
12,020 | - |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | - | 1.65V ~ 5.5V | - | 3.9ns, 5ns | 500MHz | 7.5pC | 8pF | 5µA | -56dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
TS5A3359DCURIC SWITCH SP3TX1 900MOHM 8VSSOP |
5,453 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 900mOhm | 100mOhm | 1.65V ~ 5.5V | - | 21ns, 10.5ns | 75MHz | 20pC | 18pF, 54pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|

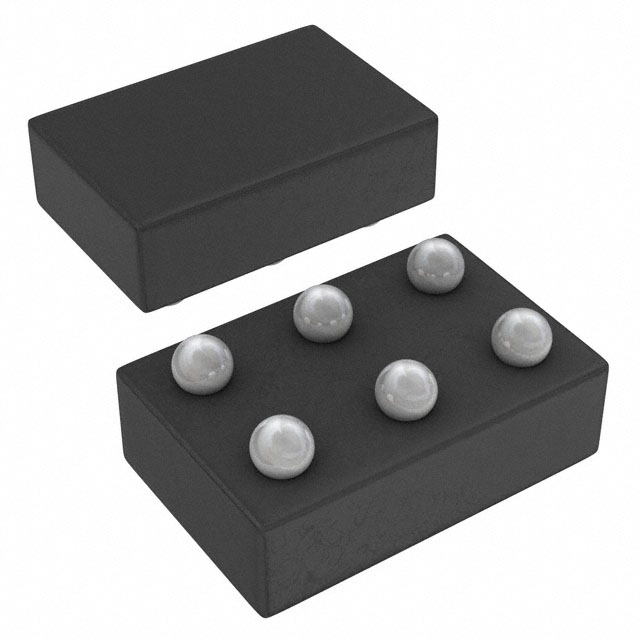

TS5A12301EYFPRIC SWITCH SPDTX1 750MOHM 6DSBGA |
26,161 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 750mOhm | 50mOhm | 2.25V ~ 5.5V | - | 225ns, 215ns | 55MHz | 97pC | 28pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
NX3L2T66GT,115IC SW SPST-NOX2 750MOHM 8XSON |
18,297 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
TS5A3357DCURIC SWITCH SP3T X 1 15OHM 8VSSOP |
8,408 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 100nA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TS5A23159RSERIC SWITCH SPDTX2 900MOHM 10UQFN |
10,477 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 13ns, 8ns | 100MHz | -7pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|

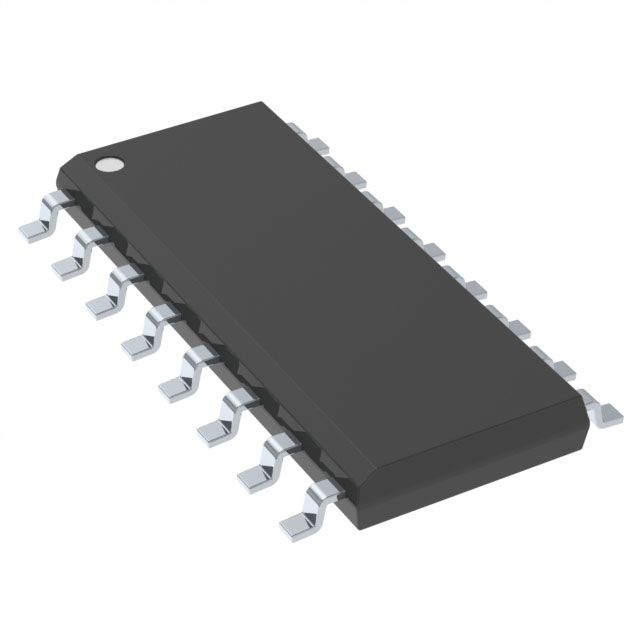

SN3257QDYYRQ1IC SWITCH SPDT X 1 5OHM 16SOT23 |
22,303 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm | 70mOhm | 1.5V ~ 5.5V | - | 35µs, 95ns | 1.2GHz | 3.5pC | 4pF, 4pF | 900nA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
|
TMUX136RSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
45,822 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TMUX136MRSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
12,701 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TS3A24157RSERIC SWITCH SPDTX2 600MOHM 10UQFN |
8,569 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 600mOhm | 50mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 50MHz | 8.75pC | 50pF | 50nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
STG719STRIC SWITCH SPDT X 1 4OHM SOT23-6 |
108,597 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 7ns, 4.5ns (Typ) | 200MHz | - | 19pF | 250pA | -52dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about selecting, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches, Multiplexers, Demultiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches, Multiplexers, Demultiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches, Multiplexers, Demultiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
