Analog Switches, Multiplexers, Demultiplexers
Browse available Analog Switches, Multiplexers, Demultiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG2038DQ-T1-E3IC SWITCH SPST-NO X 2 5OHM 8MSOP |
4,038 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 200mOhm (Max) | 1.8V ~ 5.5V | - | 30ns, 22ns | - | 1pC | 15pF, 17pF | 1nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2042DN-T1-E4IC SWITCH SPST-NOX4 1.5OHM 16QFN |
2,327 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 1.5Ohm | 300mOhm (Max) | 1.8V ~ 5.5V | - | 42ns, 32ns | - | 3pC | 26pF | 1nA | -93dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
DG2303DL-T1-E3IC SWITCH SPST-NOX1 7OHM SC70-5 |
2,521 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 7Ohm | - | 1.65V ~ 5.5V | - | 2ns, 7.5ns | - | 0.5pC | 9pF | 10µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|

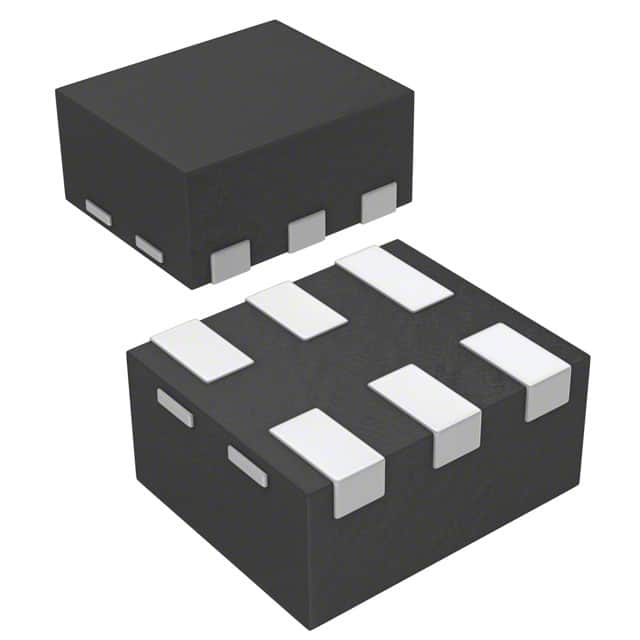

DG2511DN-T1-E4IC SWITCH SPDTX1 1.3OHM 6MINIQFN |
4,625 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.3Ohm | 150mOhm (Max) | 1.8V ~ 5.5V | - | 35ns, 31ns | - | 14pC | 19pF | 2nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-miniQFN (1x1.2) |
|
DG2517DN-T1-E4IC SWITCH SPDT X 2 4OHM 10DFN |
2,562 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2517DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
1,937 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2535DN-T1-E4IC SWITCH SPDT X 2 500MOHM 10DFN |
1,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2535DQ-T1-E3IC SWITCH SPDTX2 500MOHM 10MSOP |
2,188 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2616DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
2,939 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2618DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
3,131 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2707DN-T1-E4IC SW SP4TX2 5.5OHM 16MINIQFN |
1,842 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 5.5Ohm | 300mOhm | 1.65V ~ 4.3V | - | 45ns, 35ns | 120MHz | -14pC | 16pF, 42pF | 5nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG2711DL-T1-E3IC SWITCH SPDTX1 600MOHM SC70-6 |
2,815 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 70mOhm (Max) | 1.6V ~ 3.6V | - | 46ns, 38ns | - | 28pC | 70pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
DG2715DL-T1-E3IC SW SPST-NOX1 600MOHM SC70-5 |
3,550 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2716DL-T1-E3IC SW SPST-NCX1 600MOHM SC70-5 |
4,308 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2733DQ-T1-E3IC SWITCH SPDTX2 450MOHM 10MSOP |
1,888 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 450mOhm | 30mOhm | 1.65V ~ 4.3V | - | 110ns, 30ns | - | 9pC | 104pF | 1nA | -75dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2741DQ-T1-E3IC SW SPST-NOX2 800MOHM 8MSOP |
3,515 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2741DS-T1-E3IC SW SPST-NOX2 800MOHM SOT23-8 |
2,913 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
DG2789DN-T1-E4IC SW SPDTX4 500MOHM 16MINIQFN |
3,020 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 500mOhm | 50mOhm | 1.65V ~ 4.3V | - | 72ns, 43ns | - | 87pC | 81pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
|
DG3002DB-T1-E1IC SWITCH SPST 700MOHM 6MICRO FT |
1,362 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
|
DG3003DB-T1-E1IC SW SPDTX1 700MOHM 6MICRO FOOT |
4,752 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about selecting, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches, Multiplexers, Demultiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches, Multiplexers, Demultiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches, Multiplexers, Demultiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
