Analog Switches - Special Purpose
Use the filters and product table below to compare Analog Switches - Special Purpose components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HI1-0524-54-CHANNEL VIDEO MUX |
2,275 | - |
|
Datasheet | - | 18-DIP (0.300", 7.62mm) | Bulk | Active | Video | 4:1 | - | 1 | 700Ohm (Typ) | - | ±15V | 8MHz | Buffered | 0°C ~ 75°C (TA) | - | - | Through Hole | 18-CERDIP |
|

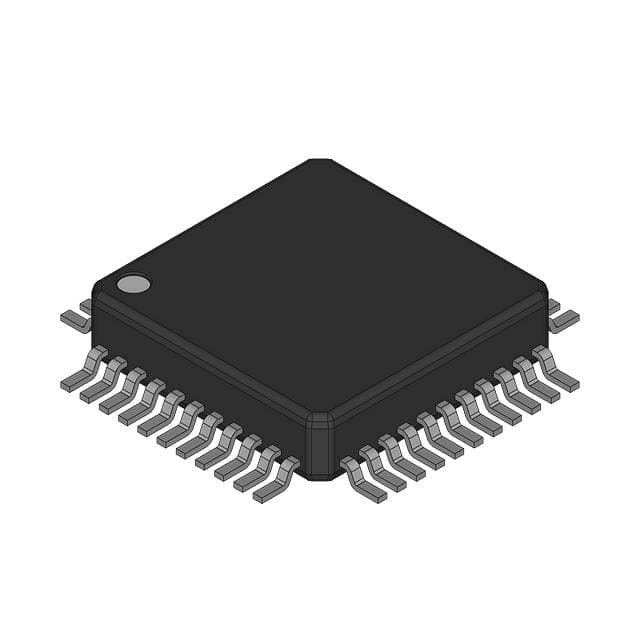

HA457CNCROSS POINT SWITCH, 8 CHANNEL |
865 | - |
|
Datasheet | - | 44-QFP | Bulk | Active | Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 95MHz | - | 0°C ~ 70°C | - | - | Surface Mount | 44-MQFP (10x10) |
|
HA457CMCROSS POINT SWITCH, 8 CHANNEL, |
549 | - |
|
Datasheet | - | 44-LCC (J-Lead) | Bulk | Active | Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 95MHz | - | 0°C ~ 70°C | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|
HA456CMXPOINT SWITCH, 8 CHANNEL |
5,510 | - |
|
Datasheet | - | 44-LCC (J-Lead) | Tube | Obsolete | Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 120MHz | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.58x16.58) |
|
ISL59530IKZXPOINT SWITCH, 16 CH, PBGA356 |
181 | - |
|
Datasheet | - | 356-BBGA | Tray | Obsolete | Video | 16:16 | - | 1 | - | 4.5V ~ 5.5V | - | 300MHz | SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 356-PBGA (27x27) |
|
ISL54405IVZ-TSPDT, 2 FUNC, CMOS, PDSO16 |
2,500 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Audio | 2:1 | SPDT | 2 | 1.9Ohm | 3.3V, 5V | - | 230MHz | Break-Before-Make, Depop | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

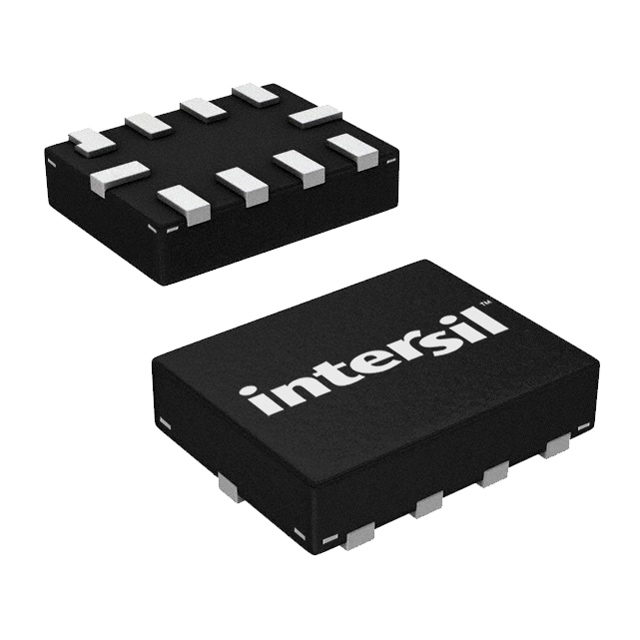

ISL54200IRUZ-TSPDT, 2 FUNC, 1 CHANNEL, CMOS, P |
99,500 | - |
|
Datasheet | - | 10-UFQFN | Bulk | Active | USB | 2:1 | SPDT | 2 | 30Ohm | 2.7V ~ 5.5V | - | 550MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (2.1x1.6) |
|
5962-9456201M2AHIGH FREQUENCY/VIDEO SWITCH |
2,321 | - |
|
Datasheet | - | 20-CLCC | Bulk | Active | Video | 1:1 | SPST | 2 | 50Ohm | 36V | ±15V | 200MHz | - | -55°C ~ 125°C | - | - | Surface Mount | 20-CLCC (8.89x8.89) |
|

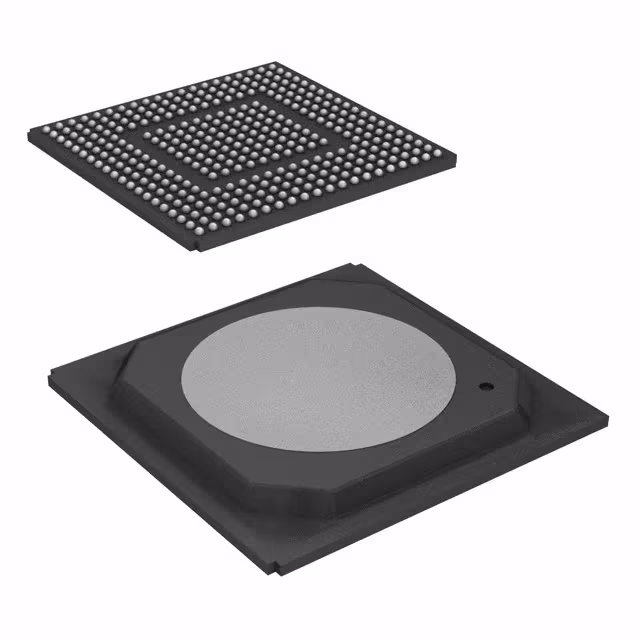

ISL59534IKEZXPOINT SWITCH, 32 CH, PBGA356 |
4,038 | - |
|
Datasheet | - | 356-BBGA Exposed Pad | Tray | Obsolete | Video | 32:16 | - | 1 | - | 4.5V ~ 5.5V | - | 300MHz | SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 356-HPBGA (27x27) |
Analog Switches - Special Purpose FAQ
Common questions about filtering, comparing and sourcing Analog Switches - Special Purpose components.
How can I narrow the Analog Switches - Special Purpose selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches - Special Purpose part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
