Analog Switches - Special Purpose
Use the filters and product table below to compare Analog Switches - Special Purpose components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX5DV330DS,112IC VIDEO MUX/DEMUX 1X2 16SSOP |
4,601 | - |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Bulk | Obsolete | Video | 2:1 | - | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|

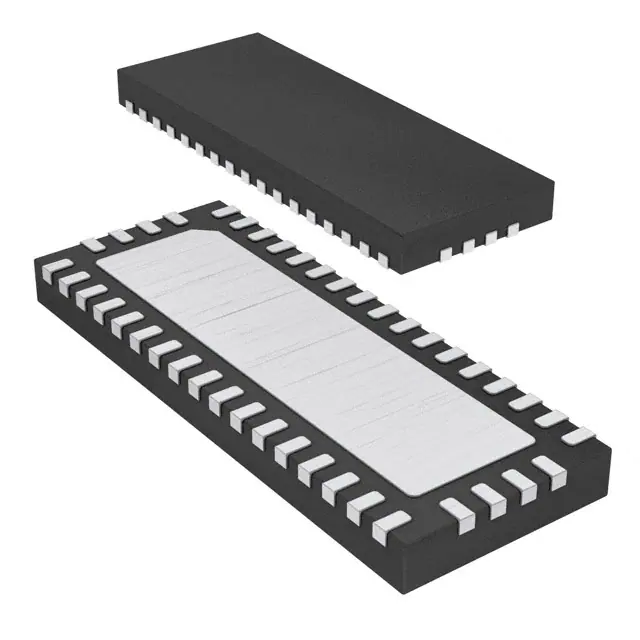

CBTL04082BBS,518IC MUX/DEMUX 2:1 4CH 42HVQFN |
4,004 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe, USB | 2:1 | - | 4 | 6Ohm (Typ) | 3V ~ 3.6V | - | 6GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-HVQFN (3.5x9) |
|

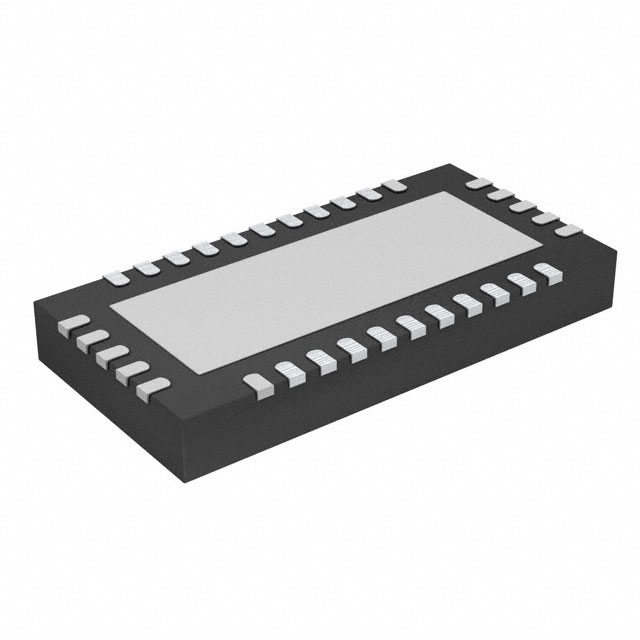

NX5DV715HF,118IC VGA SWITCH 32HWQFN |
2,559 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 2 | 4Ohm (Typ) | 2V ~ 5.5V | - | 600MHz | Buffers, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-HWQFN (3x6) |
|
CBTW28DD14ET,118IC SWITCH DDR2 DDR3 2X1 48TFBGA |
138,826 | - |
|
Datasheet | - | 48-TFBGA | Bulk | Obsolete | Memory | 2:1 | DPST | 1 | 10Ohm (Typ) | 1.4V ~ 2V | - | 2.5GHz | DDR2, DDR3, DDR4 | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (4.5x4.5) |
|
CBTL02042BBQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN |
1,551 | - |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 7GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
CBTL05024BSHPIC MUX/DEMUX SWITCH CHIP 24HVQFN |
4,271 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Thunderbolt | 3:1, 2:1 | - | 2 | - | 3V ~ 3.6V | - | 10GHz | - | -20°C ~ 85°C (TA) | - | - | Surface Mount | 24-HVQFN (3x3) |
|
CBTL04083ABS,558DIFFERENTIAL MULTIPLEXER, 4 FUNC |
286,403 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

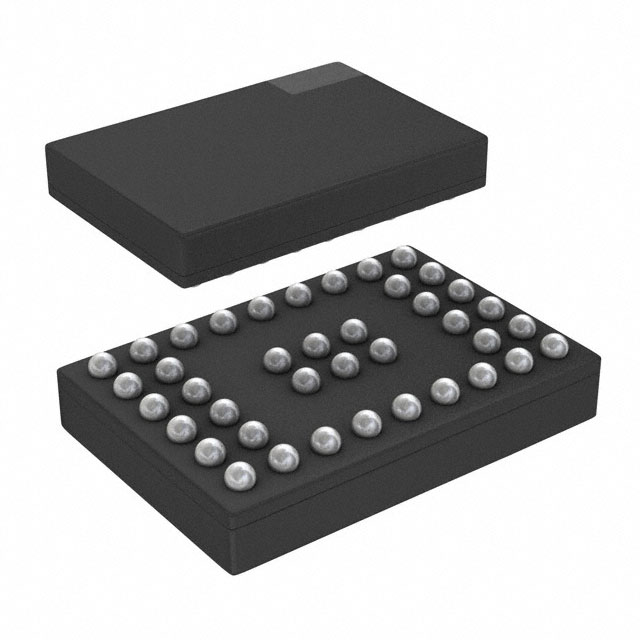

CBTL08GP053EVYCBTL08GP053EV - USB TYPE-C HIGH |
15,000 | - |
|
Datasheet | - | 40-VFBGA | Bulk | Obsolete | USB | 2:1 | SPDT | 1 | 10Ohm | 2.9V ~ 3.6V | - | 8.5GHz | USB 3.1 | -40°C ~ 85°C (TA) | - | - | - | 40-VFBGA (4.75x3.25) |
|
CBTW28DD14AETJ14-BIT DDR BUS SWITCH,CU-OSP LF |
36,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBTL05023BS,118DIFFERENTIAL MULTIPLEXER, PQCC24 |
138,160 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Analog Switches - Special Purpose FAQ
Common questions about filtering, comparing and sourcing Analog Switches - Special Purpose components.
How can I narrow the Analog Switches - Special Purpose selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches - Special Purpose part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
