Analog Switches - Special Purpose
Browse available Analog Switches - Special Purpose part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3VDP612-AZFEIC DEMULTIPLEXER 1X2 56TQFN |
2,516 | - |
|
Datasheet | - | 56-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm | 3.3V | - | 3.25GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-TQFN (11x5) |
|
ISL54409IRTZ-TIC SW USB/AUDIO DUAL SPT 8TDFN |
1,498 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 1:1 | SPST | 2 | 2.8Ohm | 2.7V ~ 5V | - | - | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN-EP (2x2) |
|
|
ISL54410IRTZ-TIC SW USB/AUDIO DUAL SPST 8TDFN |
2,942 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 1:1 | SPST | 2 | 2.8Ohm | 2.7V ~ 5V | - | - | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN-EP (2x2) |
|
MAX14806CCM+TIC MUX DUAL 8CH HV 48LQFP |
1,217 | - |
|
Datasheet | - | 48-LQFP | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 16 | 23Ohm | 2.7V ~ 5.5V | - | 20MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
MAX14805ECM+IC MUX DUAL 8CH HV 48LQFP |
4,260 | - |
|
Datasheet | - | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 16 | 23Ohm | 2.7V ~ 5.5V | - | 20MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
TX810IRHHRIC SWITCH 8CH PROG 36VQFN |
4,649 | - |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 8 | 30Ohm (Typ) | 2.5V ~ 5V | ±2.5V ~ 5V | 140MHz | Diode Bridge, Programmable Bias Current | 0°C ~ 70°C (TA) | - | - | Surface Mount | 36-VQFN (6x6) |
|
ISL54224IRTZ-TIC MULTIPLEXER DUAL 2:1 10TDFN |
1,466 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54225IRTZ-TIC MULTIPLEXER DUAL 2:1 10TDFN |
4,382 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
ISL54225IRUZ-T7AIC MULTIPLEXER DUAL 2:1 10TQFN |
4,513 | - |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54227IRTZ-TIC USB SWITCH DUAL DPST 10TDFN |
4,418 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54227IRUZ-TIC USB SWITCH DUAL DPST 10TQFN |
3,554 | - |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54227IRUZ-T7AIC USB SWITCH DUAL DPST 10TQFN |
3,515 | - |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|

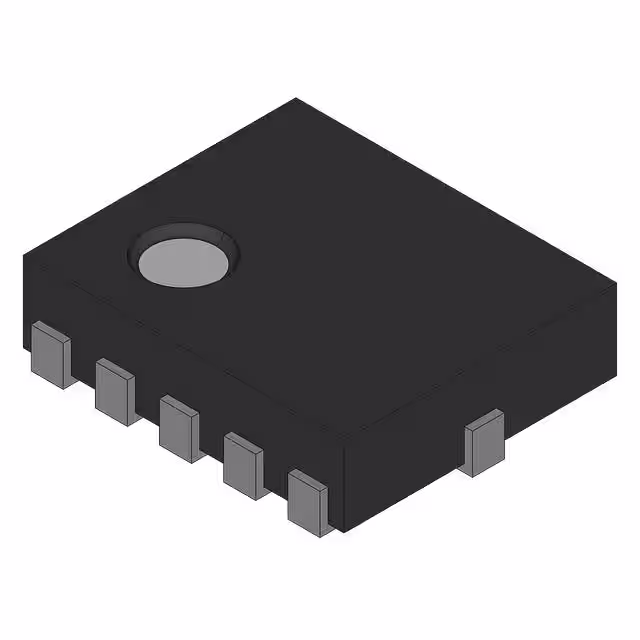

NCN9252MUTAGIC USB SWITCH DP3T 12UQFN |
1,915 | - |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Obsolete | USB, UART | - | DP3T | 2 | 4.5Ohm | 1.65V ~ 4.5V | - | 525MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
FSA321UMXIC SWITCH MULTIMEDIA 10-UMLP |
2,029 | - |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Obsolete | Audio, USB | - | DPDT | 1 | 2.7Ohm (Audio), 11Ohm (USB) | 1.8V ~ 4.3V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UMLP (1.8x1.4) |
|
FSA9280AUMXIC USB MULTIMEDIA SWITCH 20-UMLP |
3,403 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - |
|
PI2DBS212QEXIC MUX/DEMUX 2X1 1.8V 20QSOP |
1,927 | - |
|
Datasheet | - | 20-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 2 | 10Ohm | 1.2V ~ 1.8V | - | 2GHz | SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QSOP |
|
PI2DBS412ZHEXIC MUX/DEMUX 2X1 42TQFN |
2,425 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | 2:1 | SPDT | 4 | - | 1.5V ~ 2V | - | 1.8GHz | - | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI2PCIE212ZHEXIC PCI-E MUX/DEMUX 2X1 28TQFN |
1,348 | - |
|
Datasheet | - | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | 2:1 | - | 2 | - | 1.5V ~ 2V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
|
PI2PCIE412-DZHEXIC PCI-E MUX/DEMUX 8:16 42TQFN |
2,462 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 4 | - | 1.5V ~ 2V | - | 1.4GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE2215ZHEXIC PCI-E MUX/DEMUX 2X1 28TQFN |
3,269 | - |
|
Datasheet | PCI Express®, TDP™ | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 2 | 12Ohm | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
Analog Switches - Special Purpose FAQ
Common questions about selecting, comparing and sourcing Analog Switches - Special Purpose components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches - Special Purpose components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches - Special Purpose part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches - Special Purpose components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
