Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC3G06DP,125IC INVERTER 3CH 3-INP 8TSSOP |
1,226 | - |
|
Datasheet | 74LVC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74AUP2G02GN,115IC GATE NOR 2CH 2-INP 8XSON |
1,753 | - |
|
Datasheet | 74AUP | 8-XFDFN | Tape & Reel (TR) | Active | NOR Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
74AUP1G00GM,115IC GATE NAND 1CH 2-INP 6XSON |
1,656 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.5ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74HC4002D-Q100,118IC GATE NOR 2CH 4-INP 14SO |
2,105 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
XC7WH14GT,115IC INVERT SCHMITT 3CH 3INP 8XSON |
4,510 | - |
|
Datasheet | 7WH | 8-XFDFN | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|

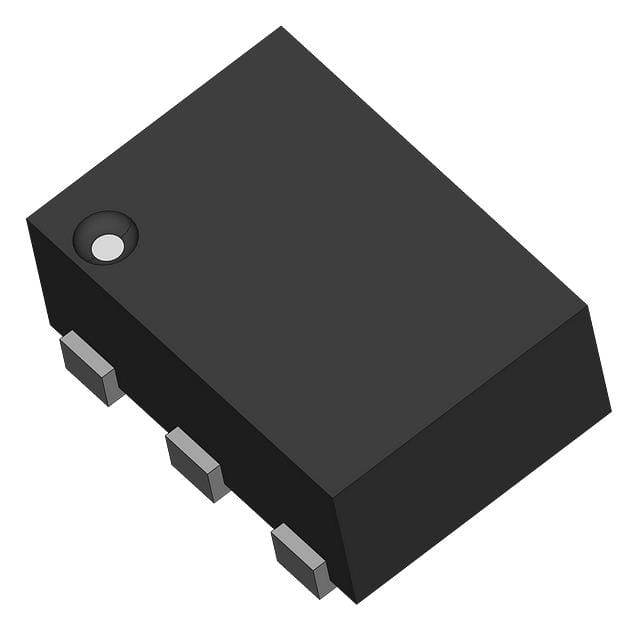

74AUP1G132GS,132IC GATE NAND 1CH 2-INP 6XSON |
4,761 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
74AUP2G08GF,115IC GATE AND 2CH 2-INP 8XSON |
3,624 | - |
|
Datasheet | 74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
|
74AUP3G04GF,115IC INVERTER 3CH 3-INP 8XSON |
2,989 | - |
|
Datasheet | 74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
|
74HC3G14DP-Q100HIC INVERT SCHMITT 3CH 3IN 8TSSOP |
2,609 | - |
|
Datasheet | 74HC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-TSSOP |
|
|
74HC3GU04DP-Q100HIC INVERTER 3CH 3-INP 8TSSOP |
1,768 | - |
|
Datasheet | 74HC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 2V ~ 6V | 10 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 13ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-TSSOP |
