Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEF4081BT-Q100JIC GATE AND 4CH 2-INP 14SO |
2,185 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 40ns @ 15V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
|
74HCT30D-Q100JIC GATE NAND 1CH 8-INP 14SO |
2,130 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|

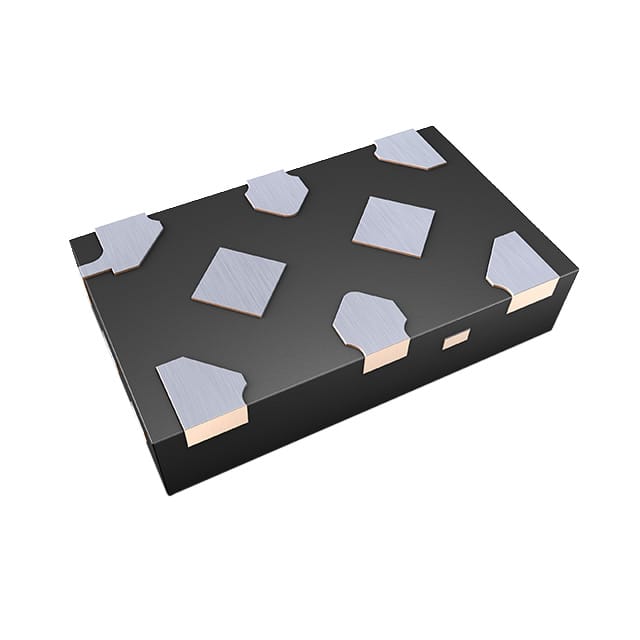

74AUP2G08GXXIC GATE AND 2CH 2-INP 8X2SON |
9,910 | - |
|
Datasheet | 74AUP | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
74LVC2G06GN,132IC INVERTER 2CH 2-INP 6XSON |
5,000 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
74AUP1GU04GS,132IC INVERTER 1CH 1-INP 6XSON |
3,890 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 4.3ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AHCT30D-Q100JIC GATE NAND 1CH 8-INP 14SO |
2,089 | - |
|
Datasheet | 74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
74AHCT3G14DP,125IC INVERT SCHMITT 3CH 3IN 8TSSOP |
1,411 | - |
|
Datasheet | 74AHCT | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74AUP2G132GXXIC GATE NAND 2CH 2-INP 8X2SON |
10,000 | - |
|
Datasheet | 74AUP | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
|
74LVC2G86GXXIC GATE XOR 2CH 2-INP 8X2SON |
10,000 | - |
|
Datasheet | 74LVC | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
|
74LVC2G00GXXIC GATE NAND 2CH 2-INP 8X2SON |
9,990 | - |
|
Datasheet | 74LVC | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 4.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
